Maytronics M600 User Instructions

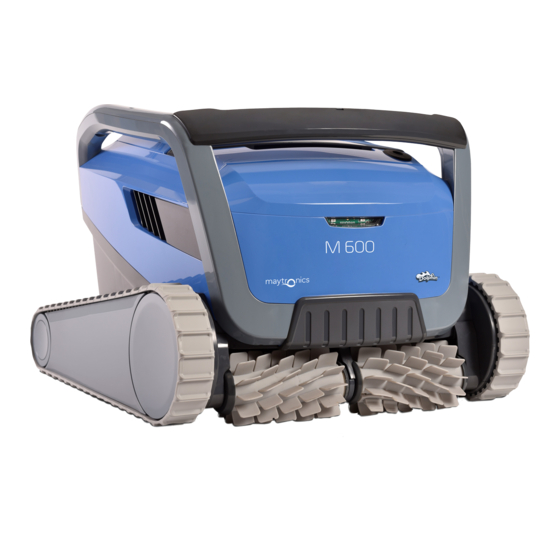

Robotic pool cleaner
Hide thumbs Also See for M600:

Advertisement

Table of Contents

1. INTRODUCTION
Thank you for purchasing a Maytronics Robotic Pool Cleaner.
We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient, and
cost-effective pool cleaning, to enhance your pool's hygiene.
Robotic Pool Cleaners by Maytronics deliver advanced cleaning technologies, exceptional ease of use,
long-lasting performance, and simple maintenance. You and your family will be free to enjoy your
swim with full confidence that your pool is completely clean.
2. SPECIFICATIONS
Robot
Motor protection: IP 68
Minimum depth: 0.8m / 2.6ft
Maximum depth: 5m / 16.4ft
This product is in accordance with EU Regulation & Directive 2014/531EU.
For full information, please contact us at
declaration of conformity.
3. WARNINGS AND CAUTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
Please adhere strictly to the following WARNINGS:
Take the Robot Pool Cleaner out of the pool before allowing people to enter the pool.
WARNING
When examining the Robot Pool Cleaner, disconnect the main power supply.
WARNING
Ensure that children do not attempt to access Robot Pool Cleaner while it is operating.
WARNING
Keep the Robot Pool Cleaner out of the reach of children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction.
WARNING
Only an original power cable must be used, at all times. Replaced by a Robot Pool Cleaner
certified technician, in case of need to avoid hazard.
WARNING
2
M600 / ZENIT 60 / ACTIVE X6 / ACTIVE ULTIMATE Robotic Pool Cleaner
Digital switch-mode power supply
IP 54
Input:
100-250 AC Volts, 50-60Hertz, 180 Watt
Output: <30VDC
Bluetooth®/Wifi® Max tras power 10mW EIRR, 2.4 GHz frequency
www.maytronics.com/contact-us-en
and ask for the EC
User Instructions
|

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M600 and is the answer not in the manual?

Questions and answers

Related Manuals for Maytronics M600

Summary of Contents for Maytronics M600

  • Page 1 1. INTRODUCTION Thank you for purchasing a Maytronics Robotic Pool Cleaner. We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient, and cost-effective pool cleaning, to enhance your pool’s hygiene. Robotic Pool Cleaners by Maytronics deliver advanced cleaning technologies, exceptional ease of use, long-lasting performance, and simple maintenance.

  • Page 2: Water Conditions

    Use the Robotic Pool Cleaner in the following water conditions: Chlorine Max 4 PPM 7.0-7.8 PPM Temperature 6-35°C / 43-95°F (below 15°C / 59°F climbing performance may be affected) NaCl Maximum = 5000 PPM M600 / ZENIT 60 / ACTIVE X6 / ACTIVE ULTIMATE Robotic Pool Cleaner User Instructions...
  • Page 3 Start the season with the net filters for large debris then use ultra-fine filters for daily use. * The net filters are assembled in the filter basket. Caddy kit M600 / ZENIT 60 / ACTIVE X6 / ACTIVE ULTIMATE Robotic Pool Cleaner User Instructions...
  • Page 4 Insert the cable with the notch on the connector (1), lined up with the groove in the socket on the power supply, and turn clockwise (2). M600 / ZENIT 60 / ACTIVE X6 / ACTIVE ULTIMATE Robotic Pool Cleaner User Instructions...
  • Page 5 Make sure that the floating cable is free of any obstacles. 5.3 Plug in the power supply minimum 5.3.1 Connect the power supply to the AC. M600 / ZENIT 60 / ACTIVE X6 / ACTIVE ULTIMATE Robotic Pool Cleaner User Instructions...

  • Page 6: Using The Power Supply

    Robot error. Check the Troubleshooting section for solutions. Red constant If none of the solutions solve the issue, contact your dealer to check the Robotic Pool Cleaner. 5.6.1 Indicator lights. M600 / ZENIT 60 / ACTIVE X6 / ACTIVE ULTIMATE Robotic Pool Cleaner User Instructions...
  • Page 7 Please use the cable to pull the robot to the surface, then use the handle. WARNING 5.7.3 Place the Robotic Pool Cleaner on the side of the pool and let the water drain out. M600 / ZENIT 60 / ACTIVE X6 / ACTIVE ULTIMATE Robotic Pool Cleaner User Instructions...

  • Page 8: Care And Maintenance

    6.1.3 6.1.4 6.1.5 Lift the basket. Open the latch to Clean the filter basket with a release the bottom lid. hose. M600 / ZENIT 60 / ACTIVE X6 / ACTIVE ULTIMATE Robotic Pool Cleaner User Instructions...
  • Page 9 Panel 4 — > 3 — > 2 — > 1. 6.2.6 Insert the clean filter basket and close the filter cover. M600 / ZENIT 60 / ACTIVE X6 / ACTIVE ULTIMATE Robotic Pool Cleaner User Instructions...

  • Page 10: Cleaning The Impeller

    Make sure the power supply is switched off and unplugged. WARNING Clean the debris trapped in the impeller opening, according to the following steps: 6.3.1 6.3.2 6.3.3 6.3.4 M600 / ZENIT 60 / ACTIVE X6 / ACTIVE ULTIMATE Robotic Pool Cleaner User Instructions...

  • Page 11: Off-Season Storage

    Roll up the cable so that it has no kinks. • Store the Robotic Pool Cleaner in a protected area out of direct sun/rain/frost, at a temperature of between 5°-45°C / 41°-113°F. M600 / ZENIT 60 / ACTIVE X6 / ACTIVE ULTIMATE Robotic Pool Cleaner User Instructions...
  • Page 12 8. USE THE MyDolphin™ Plus IOT MOBILE APP Please download the Maytronics MyDolphin™ Plus app to your mobile smart device from either Google Play for Android or the Appstore for iOS. The Maytronics MyDolphin™ Plus app is cloud-connected, enabling control from anywhere at anytime, with real-time connectivity.
