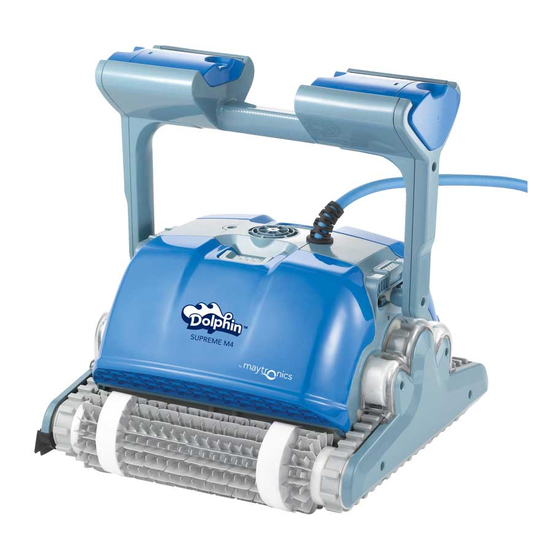

Supreme M4 Assembly Instructions
Table of Contents
1. Assembling the Motor Unit's Parts ................................................................................................... 2
2. Assembling the Diaphragms ............................................................................................................. 3
3. Assembling the Active Brush ............................................................................................................ 4
4. Assembling the Motor Unit ............................................................................................................... 5
5. Assembling the Driving System and Side Cover ................................................................................ 6
6. Assembling the driving system and Side Cover on the other side of the robot ................................. 9
7. Assembling the Floating Cable ....................................................................................................... 11
8. Positioning the Float ...................................................................................................................... 13
9. Positioning the Brush Covers.......................................................................................................... 14
10. Assembling the Outer Casing........................................................................................................ 15
11. Assembling the Impeller Cover .................................................................................................... 16
12. Assembling the Handle ................................................................................................................. 17
13. Assembling the Brushes ............................................................................................................... 18
Page 1 of 18
Advertisement
Table of Contents
Related Manuals for Maytronics Supreme M4
Summary of Contents for Maytronics Supreme M4
- Page 1 Supreme M4 Assembly Instructions Table of Contents 1. Assembling the Motor Unit’s Parts ....................2 2. Assembling the Diaphragms ......................3 3. Assembling the Active Brush ......................4 4. Assembling the Motor Unit ....................... 5 5. Assembling the Driving System and Side Cover ................6 6.
-
Page 2: Assembling The Motor Unit's Parts
Supreme M4 Assembly Instructions 1. Assembling the Motor Unit’s Parts Step 1.1 Secure the impeller with a 4X25 screw. Step 1.2 Secure the impeller protector cylinder with 4 KA50X12 screws. Page 2 of 18... -
Page 3: Assembling The Diaphragms
Supreme M4 Assembly Instructions 2. Assembling the Diaphragms Step 2.1 Insert two diaphragms. Page 3 of 18... -
Page 4: Assembling The Active Brush
Supreme M4 Assembly Instructions 3. Assembling the Active Brush Step 3.1 Place the Active Brush in its place. Step 3.2 Secure the Active Brush in place with 4X KA50X20 screws. Page 4 of 18... -
Page 5: Assembling The Motor Unit
Supreme M4 Assembly Instructions 4. Assembling the Motor Unit Step 4.1 There is only one way to place the motor unit in the frame. Step 4.2 Secure the motor unit to the frame with 4X KA50X20 screws. Page 5 of 18... -
Page 6: Assembling The Driving System And Side Cover
Supreme M4 Assembly Instructions 5. Assembling the Driving System and Side Cover Step 5.1 Place the guide wheels on the side of the motor shaft. Step 5.2 Put the hexagon adaptor into the pulley. Step 5.3 Put the pulley and... - Page 7 Supreme M4 Assembly Instructions Step 5.4 Place the track in its place as shown on both sides of the robot. Step 5.5 Assemble the track safety cover on the side panel. Step 5.6 Put the side panel into its place.
- Page 8 Supreme M4 Assembly Instructions Step 5.8 Secure the side panel in place with 4 KA50X20 screws. Step 5.9 Make sure the side panel clips are in their places as shown in the picture Page 8 of 18...
-
Page 9: Assembling The Driving System And Side Cover On The Other Side Of The Robot
Supreme M4 Assembly Instructions 6. Assembling the driving system and Side Cover on the other side of the robot Step 6.1 Place the guide wheels and pulley on the other side of the frame. Step 6.2 put the track in place as shown. - Page 10 Supreme M4 Assembly Instructions Step 6.3 Assemble the side panel with the fins facing out. Step 6.4 Make sure the side panel clips are in their places as shown in the picture Step 6.5 Secure the side panel in place with 4 KA50X20 screws.
-
Page 11: Assembling The Floating Cable
Supreme M4 Assembly Instructions 7. Assembling the Floating Cable Step 7.1 Note: Insert the floating There is only cable to the one way for motor unit. the connector to connect to the motor Step 7.2 unit terminal. Connect the cable's retrofit to... - Page 12 Supreme M4 Assembly Instructions Step 7.5 Position the floating cable on the motor unit. Step 7.6 The cable position on the motor unit. Note: Step 7.7 Screw Secure the cable the cable holders with 4X holders KA50X12 screws. screws gently.
-
Page 13: Positioning The Float
Supreme M4 Assembly Instructions 8. Positioning the Float Step 8.1 Place the float on the motor unit, on the drive motor side as Note: shown. The drive motor side. Page 13 of 18... -
Page 14: Positioning The Brush Covers
Supreme M4 Assembly Instructions 9. Positioning the Brush Covers Step 9.1 Position the 2 brush safety covers. Page 14 of 18... -
Page 15: Assembling The Outer Casing
Supreme M4 Assembly Instructions 10. Assembling the Outer Casing Step 10.1 Place the outer casing on the frame. Note: Make sure the casing seats well on the brush safety covers. Step 10.2 Secure the outer casing to the frame with 4X KA50X20 screws. -
Page 16: Assembling The Impeller Cover
Supreme M4 Assembly Instructions 11. Assembling the Impeller Cover Step 11.1 Place the cable support in its place on the outer casing before closing the impeller cover. Step 11.2 Position the impeller cover diagonally on the outer casing. Step 11.3... -
Page 17: Assembling The Handle
Supreme M4 Assembly Instructions 12. Assembling the Handle Step 12.1 Position the Note: handle. handle's position Step 12.2 Secure the handle in place with 2 KA50X20 screws. Page 17 of 18... -
Page 18: Assembling The Brushes
Supreme M4 Assembly Instructions 13. Assembling the Brushes Step 13.1 Place one brush Note: in place. Using a screwdriver makes it easier to insert the brush in place. Step 13.2 Place the second brush in its place pulling it strongly towards... -
Page 19: Table Of Contents
Supreme M4 Disassembly Instructions Table of Contents 1. Dismantling the Handle ........................2 2. Dismantling the Impeller Cover ......................3 3. Dismantling the Outer Casing ......................4 4. Dismantling the Cable ........................5 5. Disassembling the Motor Unit ......................6 6. -
Page 20: Dismantling The Handle
Supreme M4 Disassembly Instructions 1. Dismantling the Handle Step 1.1 Unscrew the 2 screws holding the handle in place. Step 1.2 Take the handle off. Page 2 of 10... -
Page 21: Dismantling The Impeller Cover
Supreme M4 Disassembly Instructions 2. Dismantling the Impeller Cover Step 2.1 Unscrew the screw holding the impeller cover in place. Step 2.2 Lift the impeller cover up from one side and then take it off. Page 3 of 10... -
Page 22: Dismantling The Outer Casing
Supreme M4 Disassembly Instructions 3. Dismantling the Outer Casing Step 3.1 Unscrew the 4 screws holding the outer casing in place. Step 3.2 Remove the black grommet before taking off the outer casing. Step 3.3 Hold the outer casing on both sides and pull it up. -
Page 23: Dismantling The Cable
Supreme M4 Disassembly Instructions 4. Dismantling the Cable Step 4.1 Remove the float from the motor unit. Step 4.2 Unscrew the 4 screws securing the cable holder Step 4.3 Unscrew the cable from the motor unit. Step 4.4 Unplug the cable. -
Page 24: Disassembling The Motor Unit
Supreme M4 Disassembly Instructions 5. Disassembling the Motor Unit Step 5.1 Unscrew the 4 screws securing the motor unit to the frame. Step 5.2 Remove the motor unit Step 5.3 Remove the hexagon adapter. Page 6 of 10... -
Page 25: Dismantling The Side Panels
Supreme M4 Disassembly Instructions 6. Dismantling the Side Panels Step 6.1 Unscrew the 4 screws holding each panel in place. Step 6.2 Pull the side panels off. Page 7 of 10... -
Page 26: Dismantling The Driving System
Supreme M4 Disassembly Instructions 7. Dismantling the Driving System Step 7.1 Remove the pulley together with the track from one side of the robot. Step 7.2 Remove guide wheels. Step 7.3 Remove the pulley together with the track and Active Brush’s driving... -
Page 27: Dismantling The Brushes
Supreme M4 Disassembly Instructions 8. Dismantling the Brushes Step 8.1 Remove the brushes. Step 8.2 Open the 4 screws holding the active brush in place. Step 8.3 Remove the Active Brush. Page 9 of 10... -
Page 28: Dismantling The Diaphragms
Supreme M4 Disassembly Instructions 9. Dismantling the Diaphragms Step 9.1 Remove the 2 diaphragms. Page 10 of 10...
