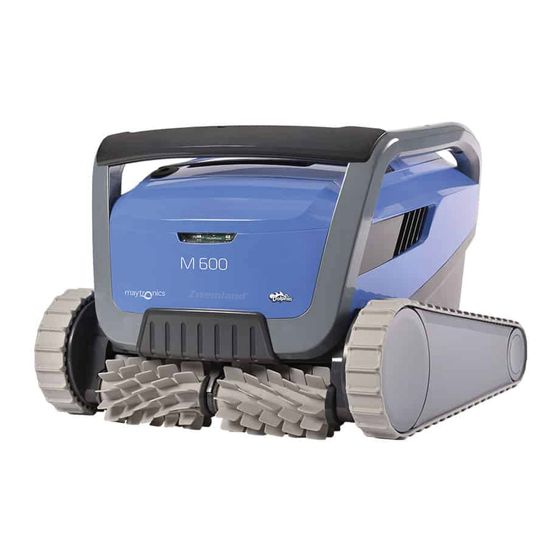

Maytronics Dolphin M600 Manual

SPECIFICATIONS

Motor protection: IP 68
Minimum depth: 0.80m / 2.64ft
Maximum depth: 5m / 16.4ft
Digital Power supply
Input: 100-240V / 50-60Hz 2A
Output: <30 VDC IP 54

WARNINGS AND CAUTIONS

IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS

Please adhere strictly to the following WARNINGS:

Take the Robot Pool Cleaner out of the pool before allowing people to enter the pool.

When examining the Robot Pool Cleaner, disconnect the main power supply.

Ensure that children do not attempt to access Robot Pool Cleaner while it is operating.

Keep the Robot Pool Cleaner out of the reach of children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Only an original power cable must be used, at all times. Replaced by a Robot Pool Cleaner certified technician, in case of need to avoid hazard.

The unit must be connected only to a supply circuit that is protected by a ground-fault circuit interrupter (GFCI). This GFCI should be tested on a routine basis. To test the GFCI, push the test button. The GFCI should interrupt power. Push the reset button. Power should be restored. If the GFCI fails to operate in this manner, the GFCI is defective. If the GFCI interrupts power to the power unit without the test button being pushed, a ground current may be flowing, indicating the possibility of an electric shock. Do not use the power unit. Disconnect the power unit and contact the manufacturer for assistance.

To reduce the risk of electric shock replace damaged cord immedietely. Do not use extension cord to connect unit to electric supply; provide a properly located outlet.

Please ensure that the following PRECAUTIONS are implemented:

Operator should keep hands away from driving belt mechanism.

Position the Caddy and power supply at least 3.5m/12ft from pool's edge – during operation.

For continued protection against possible electric shock, the power supply unit should be placed at least 11cm/4in above ground.

When lifting the Robot Pool Cleaner, take care to prevent back injury.

Do not bury cord – locate cord to minimize abuse from lawn mowers, hedge trimmers and other equipment.

This Robot is for use with permanently installed pools. Do not use with storable pools. A permanently installed pool is constructed in or on the ground or in building such that it cannot be readily disassembled for storage and reassembled to its original integrity.

Water Conditions

Use the Robotic Pool Cleaner in the following water conditions:

Important: Setting up the Wi-Fi®

To assist you with tips, product updates, and communication with the Dolphin support team, you have to be connected to the Wi-Fi®.
Please make sure that you have the following:

1. Your home Wi-Fi® network covers the pool area.
2. Your Wi-Fi® router has a sufficient signal strength near the location of the power supply.
3. Ensure that your smart device (phone or tablet) have a Wi-Fi® connectivity.
   In case you have a weak signal strength, please use a Wi-Fi® extender.
   Note: The robot's power supply supports 2.4GHz Wi-Fi® frequency only.

ROBOTIC POOL CLEANER PARTS

Robotic Pool Cleaner

Power supply

Filtration
Start the season with the net filters for large debris then use ultra-fine filters for daily use.


* The net filters are assembled in the filter basket.

Caddy kit

USING THE ROBOTIC POOL CLEANER

Setup

Before using the Robotic Pool Cleaner for the first time, perform the following steps:

1. Position the power supply at approximately the middle of the long side of the pool, at least at a distance of 3.5m /12ft.

2. Unwind the cable and stretch it out completely so that it has no kinks.

3. Attach the floating cable to the power supply: Insert the cable with the notch on the connector (1), lined up with the groove in the socket on the power supply, and turn clockwise (2).

4. Plug in the power supply and leave it in the OFF position.


Placing the Robotic Pool Cleaner into the pool

Place the Robotic Pool Cleaner in the pool.
Release it and let it sink to the floor of the pool.
Make sure that the floating cable is free of any obstacles.

Connecting the robot to your smart device (Phone or tablet)

Please follow these simple steps:

1. Download the MyDolphin™ Plus App to your smart device (phone or tablet) from Google Play or the App Store .
2. Activate Bluetooth® and Wi-Fi® on your smart device (phone or tablet).
3. During the initial connection to the robot, the smart device must be connected to your home Wi-Fi® network (Please see section 3.2).
4. Activate the MyDolphin™ Plus App on your smart device.
5. Scan the QR code on the side of the power supply, and follow the instructions.

Press the power button to turn the robot ON. The Robotic Pool Cleaner will now operate until it has reached the end of the cleaning cycle.

Using the power supply

Your power supply is designed to provide you with the most advanced features to improve your experience.

• A single on/off button for an easy operation.
• LED indicators for the advanced features.


LED indications table:

Robotic Pool Cleaner indicator lights

Indicator lights

Removing the Robotic Pool Cleaner from the pool

1.

   Turn OFF and unplug the power supply.
2. Use the floating cable to pull the Robotic Pool Cleaner to the side of the pool. Use the handle to remove the robot from the pool.


   DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
3. Place the Robotic Pool Cleaner on the side of the pool and let the water drain out.
4.


CARE AND MAINTENANCE

Make sure the power supply is switched off and unplugged.

We highly recommend cleaning the filter basket after each cleaning cycle.
Note: Do not let the filter panels dry out before cleaning.

Cleaning after use - Removing and cleaning the dual filter basket

1. Open the filter cover.

2. Upon opening the filter cover, the handle will lift independently.

3. Lift the basket.

4. Open the latch to release the bottom lid.

5. Clean the filter basket with a hose.


Periodic filter cleaning - Recommended at least once a month

Dismantle the 4 ultra-fine filter panels of the outer basket, according to the following steps:

1. Hold down the handle to remove the inner net basket.

2. Dismantle the panels; start by pressing on panel 1, using your thumbs.

3. Continue to dismantle the panels in order: 2 — > 3 — > 4.

4. Clean the filter panels with a hose.

5. Assemble the filter panels according to the following order: Panel 4 — > 3 — > 2 — > 1.

6. Insert the clean filter basket and close the filter cover.


Cleaning the impeller

If you notice debris trapped in the impeller:
Make sure the power supply is switched off and unplugged.

Clean the debris trapped in the impeller opening, according to the following steps:

Periodic general maintenance - Recommended at least once a week

• When the cable is wet, spread it flat and straight in the yard, and allow it to dry for at least five hours to avoid twisting of the cable.
• Wash the Robotic Pool Cleaner with fresh water, to reduce damage caused by the chemicals in the pool water.

OFF-SEASON STORAGE

If the Robotic Pool Cleaner will not be in use for an extended period of time, perform the following storage steps:

• Make sure that no water is left in the Robotic Pool Cleaner.
• Thoroughly clean the filter basket and panels and insert them back in place.
• Roll up the cable so that it has no kinks.
• Store the Robotic Pool Cleaner in a protected area out of direct sun/rain/frost, at a temperature of between 5°- 45°C / 41°- 113°F.

If the Robotic Pool Cleaner will not be in use for an extended period of time, perform the following storage steps:

• Make sure that no water is left in the Robotic Pool Cleaner.
• Thoroughly clean the filter basket and panels and insert them back in place.
• Roll up the cable so that it has no kinks.
• Store the Robotic Pool Cleaner in a protected area out of direct sun/rain/frost, at a temperature of between 5°-45°C / 41°-113°F.


TROUBLESHOOTING

If the suggested solutions do not solve the problem, please contact your dealer or Service Center.
