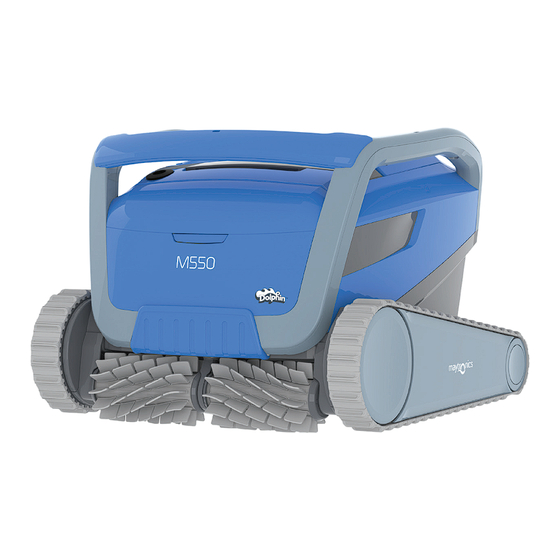

- Page 1 M550, ZENIT 55, ULTIMATE SMART, ACTIVE X5.5 Maytronics Dolphin Robotic Pool Cleaner User Instructions...
-
Page 2: Table Of Contents
M550 Robotic Pool Cleaner User Instructions Contents 1. INTRODUCTION ..............................2 2. SPECIFICATIONS ..............................2 3. WARNINGS AND CAUTIONS ..........................2 3.1 Water conditions ............................3 4. ROBOTIC POOL CLEANER PARTS ........................4 5. USING THE ROBOTIC POOL CLEANER ......................5 5.1 Setup .................................5 5.2 Operating the robot without using your smartphone ............... 6 5.3 Using the power supply ........................... -
Page 3: Introduction
Thank you for purchasing a Maytronics robotic pool cleaner. We are sure that your Maytronics robotic pool cleaner will provide you with reliable, convenient and cost effective pool cleaning. Its reliable filtration in all pool conditions and all-surface climbing brush enhance maximum pool hygiene. -
Page 4: Water Conditions
Please ensure that the following PRECAUTIONS are implemented: ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ Unplug the power unit before maintaining. ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ CAUTION Operator should keep hands away from driving belt mechanism. ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ CAUTION Only a trained operator should operate the robotic pool cleaner. ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ CAUTION... -
Page 5: Robotic Pool Cleaner Parts
4. ROBOTIC POOL CLEANER PARTS Robotic pool cleaner with blue cable and anti-tangle swivel IOT power supply We recommend storing it in a dry location during wet seasons. Filtration Interchangeable fine filter basket & ultra fine filter panels * The ultra-fine filter panels are snapped onto the basket. See section 6.2 for instructions. Caddy kit CLASSIC 15+ Robotic Pool Cleaner User Instructions... -
Page 6: Using The Robotic Pool Cleaner
5. USING THE ROBOTIC POOL CLEANER 5.1 Setup Before using the robotic pool cleaner for the first time, perform the following steps: 5.1.1 5.1.2 Position the power supply Unwind the blue cable and stretch it out completely so that at approximately the middle of the it has no kinks. -
Page 7: Operating The Robot Without Using Your Smartphone
5.2 Operating the robot without using your smartphone Place the robot in the pool and press the power button to turn the robot ON. The robot will now operate until it has reached the end of the cleaning cycle. WEEKLY SCHEDULE: Press power button for 5 seconds to start weekly timer. -
Page 8: Removing The Robot From The Pool
5.4 Removing the robot from the pool Option A - MyDolphin™ Plus app Option B - Turn OFF and pull robot to waterline The easiest and most fun way to get the robot out of the water: 1. Log into the MyDolphin™ Plus app and click "Pick-up mode". -
Page 9: Care And Maintenance
6. CARE AND MAINTENANCE Make sure the power supply is switched OFF. WARNING Protect the robot: - Rinse the chemicals off the robot when rinsing the filter - Store in the shade or Caddy cover We highly recommend rinsing the filter basket and robot after each cleaning cycle. It is far more effective when the filter is clean. -
Page 10: Periodic Filter Cleaning
6.2 Periodic filter cleaning - Recommended about once a month Dismantle the filter panels of the outer basket, with the following steps: 6.2.1 6.2.2 Dismantle the panels; start Continue to dismantle the by pressing the plastic frame near panels in order: 2 —> 3 —> 4. the number on panel 1, using your thumbs. -
Page 11: Cleaning The Impeller
6.3 Cleaning the impeller If you notice debris trapped in the impeller (underwater propeller): For your safety, make sure the power supply is unplugged to prevent injury and damage. WARNING Clean the debris trapped in the impeller, according to the following steps: 6.3.1 6.3.2 Unplug the power supply to... -
Page 12: Periodic General Maintenance
6.4 Periodic general maintenance - Recommended about once a week • When the blue cable is wet, spread it flat and straight in the yard, and allow it to dry for at least five hours to avoid twisting of the cable. •... -
Page 13: Use The Mydolphin™ Plus Iot Mobile App
8. USE THE MyDolphin™ Plus IOT MOBILE APP Download the Maytronics MyDolphin™ Plus app onto your mobile device from Google Play or Apple's App Store. The Maytronics MyDolphin™ Plus app is cloud-connected, enabling control from anywhere at anytime, with real-time connectivity, as long as it is connected properly to your Wi-Fi® network. Connecting via Wi-Fi®... -
Page 14: Led Lights On The Power Supply
8.4 LED Lights on the Power Supply Connectivity LEDs The connectivity LED light on the power supply has several modes: 1. Flashing blue light - waiting for Bluetooth® connection. 2. Steady blue light - connected via Bluetooth®. 3. Steady green light - power supply is now connected to the Wi-Fi®... -
Page 15: Troubleshooting
9. TROUBLESHOOTING Unplug the power supply before performing any action. WARNING Symptom Possible reason Corrective action The power supply • No voltage in the power socket in the wall. • Make sure that there is voltage in the power socket in the wall. or its ON/OFF LED •... - Page 16 Symptom Possible reason Corrective action Can not connect • The power supply is too far from the router • Reset the power supply (disconnect the power cord), to your Wi-Fi®, (weak signal) or your router is not working and wait 1 min. and the properly.
-
Page 17: Mydolphin™ Plus - Troubleshooting
10. MyDolphin™ Plus - TROUBLESHOOTING Before using the app, make sure you have a strong Wi-Fi® signal at 2.4GHz. If you have a dual or quad band router, to prevent connectivity issues, Split and give separate names to the 2.4 and 5GHz networks. - Page 18 Australia, NZ, South Africa 1 300 693 657 infoau@maytronics.com Rest of the world / Maytronics HQ 00 800 69694141 (toll free number) 00 972 77 96 14 204 (international call) wecare@maytronics.com For full information and additional troubleshooting please visit us at: www.maytronics.com...
