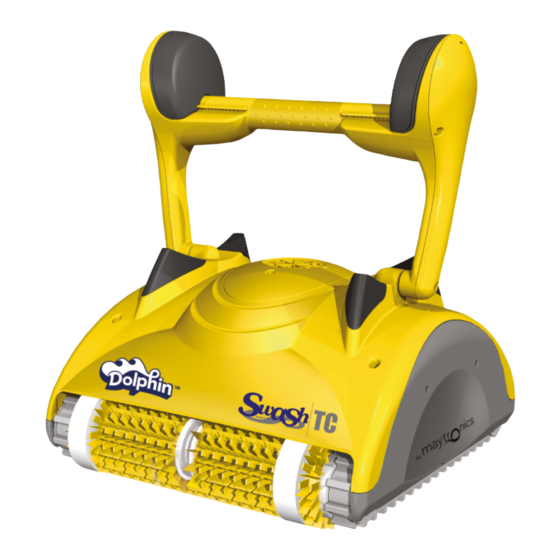

Operating Instructions
Robot Pool Cleaner MTC4
Instructions d'opération
Robot nettoyeur de piscine MTC4
Instrucciones operativas
Limpiador de piscinas Robot MTC4
Bedienungsanleitung
Robot der Pool Reiniger MTC4
2/9/09 9:24:26 AM
2/9/09 9:24:26 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dolphin Swash TC and is the answer not in the manual?

Questions and answers

Related Manuals for Maytronics Dolphin Swash TC

Summary of Contents for Maytronics Dolphin Swash TC

  • Page 1 Operating Instructions Robot Pool Cleaner MTC4 Instructions d’opération Robot nettoyeur de piscine MTC4 Instrucciones operativas Limpiador de piscinas Robot MTC4 Bedienungsanleitung Robot der Pool Reiniger MTC4 8151129-MTC4.indd 1 8151129-MTC4.indd 1 2/9/09 9:24:26 AM 2/9/09 9:24:26 AM...
  • Page 2 8151129-MTC4.indd 2 8151129-MTC4.indd 2 2/9/09 9:24:26 AM 2/9/09 9:24:26 AM...
  • Page 3 Important safety instructions. Instructions de sécurité importantes. Instrucciones importantes de seguridad. Wichtige sicherheitsvorschrift. 40ºC Max GFI/ELI 104ºF Max Swivel Optional Standard Brush Combined Brush Wonder Brush 8151129-MTC4.indd Sec1:1 8151129-MTC4.indd Sec1:1 2/9/09 9:24:26 AM 2/9/09 9:24:26 AM...
  • Page 4 Important safety instructions. Instructions de sécurité importantes. Instrucciones importantes de seguridad. Wichtige sicherheitsvorschrift. Beware! Very Hot! Attention! Appareil très chaud! Atención! Muy caliente! Vorsicht! Sehr heiss! • Keep power supply out of standing water. • Use only original Dynamic power supply- factory wired for 100/115/230/250 VAC mains supply.
  • Page 5 Caddy assembly Montage du Caddy Montaje del Caddy Caddy Montage 8151129-MTC4.indd Sec1:3 8151129-MTC4.indd Sec1:3 2/9/09 9:24:29 AM 2/9/09 9:24:29 AM...
  • Page 6 Click! 8151129-MTC4.indd Sec1:4 8151129-MTC4.indd Sec1:4 2/9/09 9:24:30 AM 2/9/09 9:24:30 AM...
  • Page 7 Click! 12mm 0.47inch 8151129-MTC4.indd Sec1:5 8151129-MTC4.indd Sec1:5 2/9/09 9:24:31 AM 2/9/09 9:24:31 AM...
  • Page 8 Shake robot from side to side or turn it upside down to release trapped air. Secouez le robot sur les côtés ou de haut en bas pour libérer les bulles d’air. Sacuda el robot de lado a lado o póngalo boca abajo para soltar el aire retenido. Schwenken sie den roboter von seite zu seite oder kippen sie ihn um, um den lufteinschluss zu befreien.
  • Page 9 Remote Control Unit - RCU See instructions on pages 17-20 Voir les instructions sur les pages 17-20 Vea las instrucciones en páginas 17-20 Siehe Anweisungen auf den Seiten 17-20 Fast Regular mode mode 8151129-MTC4.indd Sec1:7 8151129-MTC4.indd Sec1:7 2/9/09 9:24:32 AM 2/9/09 9:24:32 AM...
  • Page 10 Although the robot will perform automatic shut-off at the end of the cleaning cycle, switch power supply “OFF” manually. Bien que le robot s’éteigne automatiquement en fin de cycle de nettoyage, éteindre l’appareil manuellement. Aunque el robot efectuará el apagado automático al término del ciclo de limpieza, apague la fuente de alimentación (“OFF”) automáticamente.
  • Page 11 8151129-MTC4.indd Sec1:9 8151129-MTC4.indd Sec1:9 2/9/09 9:24:33 AM 2/9/09 9:24:33 AM...
  • Page 12 Filter Bag Click! Click! It is recommended to periodically wash filter bag in a washing machine. Use synthetic cleaning program Il est recommandé de laver périodiquement le sac-filtre dans la machine à laver. Utiliser le programme de nettoyage synthétique Se recomienda lavar periódicamente la bolsa del filtro en una máquina lavadora.
  • Page 13 Filter Bag Click! Click! 8151129-MTC4.indd Sec1:11 8151129-MTC4.indd Sec1:11 2/9/09 9:24:35 AM 2/9/09 9:24:35 AM...
  • Page 14 Cartridge Optional Click! Click! It is recommended to wash the cartridge after every cycle Note: In extremely dirty pools (e.g. spring cleaning), there is a need to open and clean the cartridge every 1/2 hr. of operation. Failing to clean the cartridge will result in poor scanning and inability to climb the pool walls.
  • Page 15 Cartridge Optional Click! Click! 8151129-MTC4.indd Sec1:13 8151129-MTC4.indd Sec1:13 2/9/09 9:24:37 AM 2/9/09 9:24:37 AM...
  • Page 16 8151129-MTC4.indd Sec1:14 8151129-MTC4.indd Sec1:14 2/9/09 9:24:37 AM 2/9/09 9:24:37 AM...
  • Page 17 Straighten the cable from time to time. Redresser le câble de temps en temps. Enderezar el cable de vez en cuando. Richten Sie das Kabel von Zeit zu Zeit. 45ºC 113ְ º F 5ºC 41ºF 45ºC 113ְ º F 5ºC 41ºF 8151129-MTC4.indd Sec1:15 8151129-MTC4.indd Sec1:15 2/9/09 9:24:38 AM...
  • Page 18 Optional Optional 8151129-MTC4.indd Sec1:16 8151129-MTC4.indd Sec1:16 2/9/09 9:24:40 AM 2/9/09 9:24:40 AM...

  • Page 19: Remote Control Unit

    REMOTE CONTROL UNIT The Control Panel Radio reception meter When no black lines are showing, move closer to the power supply unit Battery level meter When flashing, change the batteries The remote control unit Manual control indicator offers two operation modes – When flashing, you are in manual direction Automatic mode and manual control mode...
  • Page 20 Press the Manual/Automatic select button and then choose the desired parameters according to the following table: Cleaning cycle Fast Efficient Extra indicator (Default setting) This determines the length of the cleaning cycle. Supreme / 1.5-hour cycle 2.5-hour cycle for 3.5-hour cycle M family everyday use.
  • Page 21 8151129-MTC4.indd Sec1:21 8151129-MTC4.indd Sec1:21 2/9/09 9:24:43 AM 2/9/09 9:24:43 AM...
  • Page 22 8151129-MTC4.indd Sec1:22 8151129-MTC4.indd Sec1:22 2/9/09 9:24:43 AM 2/9/09 9:24:43 AM...
