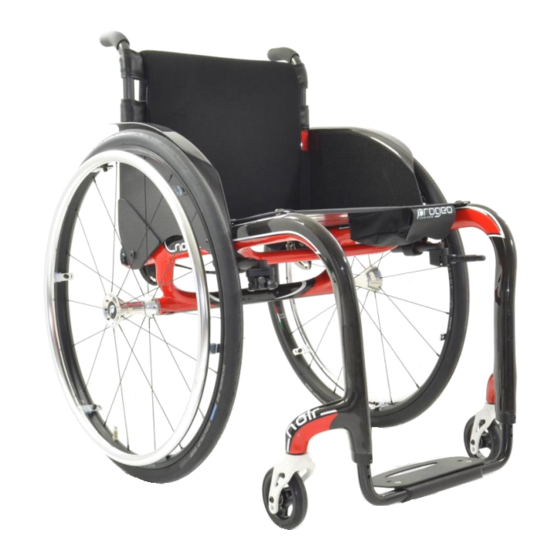

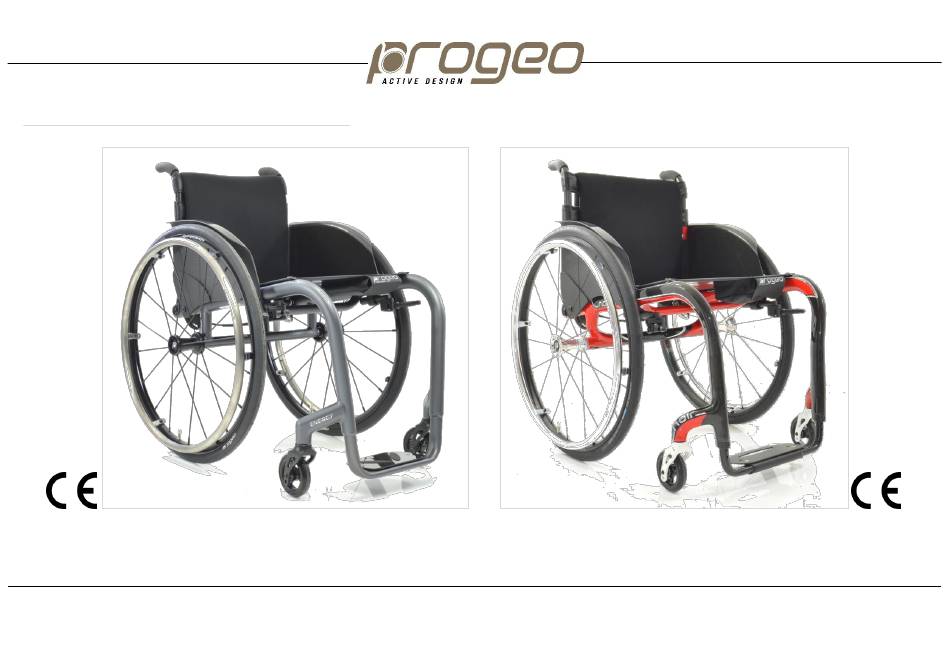

- Page 1 ULTRA-LIGHT WHEELCHAIR WITH RIGID FRAME JOKER NOIR 2.0 ENERGY User’s manual ENGLISH - rev. 0 – 2021/05...
- Page 2 Joker Energy / Noir 2.0 2...
-
Page 3: Table Of Contents
TECHNICAL SPECIFICATIONS ..............45 Ensuring stability ..................24 WARRANTY ....................46 TRASPORT OF THE WHEELCHAIR ............25 GENERAL DESCRIPTION OF PARTS ............26 ADJUSTMENTS ..................27 ACCESSORIES ..................28 Narrow passage transit wheels ..............28 Joker Energy / Noir 2.0 3... -
Page 4: Introduction
BEFORE using this wheelchair, please READ all parts of this manual and keep it for future reference. Check that the warranty certificate has been fully compiled by the dealer and keep it with care. This document is also available in PDF format for the visually impaired at www.rehateamprogeo.com. Joker Energy / Noir 2.0 4... -
Page 5: Flammability
Identification) XXXXXXX Product name Serial number Read the user’s manual Ambient usage Crash-test approved temperature Maximum weight load Not crash tested XXXXXXXXXXXXXXX Manufacturer data CE mark MD mark Maximum slope in use (Medical Device) Joker Energy / Noir 2.0 5... -
Page 6: Intended Purposes And Conditions Of Use
If the wheelchair configuration causes the wheelchair width to exceed 700 mm, it may be difficult or impossible to travel on public transport. JOKER ENERGY / NOIR 2.0 Given its dimensional and structural characteristics, the wheelchair model is ideal for use by both teenagers and adults. -
Page 7: Putting The Wheelchair Into Service And Regular Use
In case of installation of any additional accessory to the product delivered by Rehateam s.r.l., the latter must be guaranteed by your dealer, the accessory device manufacturer, and approved by Rehateam s.r.l. Joker Energy / Noir 2.0 7... -
Page 8: Tyre Pressure
Occupants with reduced upper limb strength should use the extended lever. Take care not to pinch/crush your fingers when applying and releasing the brakes, but also in any other situation where your hands come close to the brakes. Joker Energy / Noir 2.0 8... - Page 9 On the other hand, in comparison with traditional brakes, its lever is located a lower position and it is more challenging to operate. For these reasons, it is not suitable for occupants with reduced control/movement of the torso and/or upper limbs and hands. Joker Energy / Noir 2.0 9...
-
Page 10: Quick Release Rear Wheels
Always release the brake before removing and inserting the rear wheel. Always check the correct engagement of the quick release axles. The holes for the rear wheel positioning may pinch or crush your fingers. Take care whenever your hands are close to such holes. Joker Energy / Noir 2.0 10... -
Page 11: Unfolding And Folding The Backrest
When the backrest lock is closed, you can lift the wheelchair by grasping its ridizer bar. With tubular armrests, it may be necessary to rotate them slightly in order to fold down the backrest. Joker Energy / Noir 2.0 11... -
Page 12: Footrest
In the order form, according to the type of footrest, you can choose its position (internal, external or intermediate). The JOKER ENERGY and NOIR models have a customised frame with an integrated footrest that may be non-adjustable or adjustable. In both cases, the footrest cannot be raised, so there are no operations to be carried out by the occupant or carer. -
Page 13: Calf Strap
The combination of the inclination of the seat with the inclination of the backrest posts and the inclination of a postural backrest with respect to the posts, could result in an angle greater than 25° with respect to the vertical. In that case, the wheelchair must have a headrest or arrangement to secure it as intended for this model. Joker Energy / Noir 2.0 13... -
Page 14: Armrests
Armrest pads may contain phthalates that are potentially hazardous to health if ingested. Avoid scratching the padding and putting any residue on your fingers into your mouth or, worse still, nibbling or sucking on the padding itself (as may occur with children). Joker Energy / Noir 2.0 14... - Page 15 (8) To insert the armrest; insert the pin of the support A into the hole of the support B and turn the armrest until it locks as above-mentioned. The supports A and B are precisely machined so that inserting and removing the armrest is possible only if the movement is perfectly vertical. Joker Energy / Noir 2.0 15...
- Page 16 TUBULAR ARMRESTS WITH STEEL SUPPORT (JOKER ENERGY) You can swing this type of armrest away on the side and remove it to make transfer easier. With this type of armrests, the wheelchair is provided with side guards. Always check the armrests are secured when they are in their operating position shown as P (facing forwards and parallel with the sides of the wheelchair).
-
Page 17: Fasteners
Wheelchair lifetime PROGEO wheelchairs are used on a daily basis and they are consequently subject to continuous stress that causes inevitable wear and tear of the parts. With this in mind, PROGEO wheelchairs have a lifetime of 5 years provided they receive thorough periodic maintenance. -
Page 18: Safety
SAFETY The Progeo wheelchair is a medical device and therefore it MUST NOT BE LENT NOR GIVEN TO OTHER USERS, even for short period. It is forbidden to make any unauthorised modifications or use un-approved parts that may change the wheelchair structure and create an unsafe condition or possible harm to the wheelchair and occupant. -
Page 19: Transfers: Getting In And Out Of The Wheelchair
During wheelchair transfers, never lean or sit on the clothing guard or armrest. These elements could bend or break, possibly resulting in injury. If your wheelchair is equipped with armrests, remove or swivel the transfer-side armrest outwards or back to facilitate the manoeuvre. If your wheelchair is a tilting seat type, you should set it flat. Joker Energy / Noir 2.0 19... -
Page 20: Starting To Drive Your Wheelchair
If you hang a backpack, a bag or any other object on the push handlebars or any rear area of the wheelchair, the resulting uneven weight distribution can significantly affect the risk of overbalancing. TO PREVENT THE WHEELCHAIR FROM OVERBALANCING DURING NORMAL USE, WE RECOMMEND FITTING AN ANTITIPPING SYSTEM. Joker Energy / Noir 2.0 20... -
Page 21: Negotiating Obstacles: Steps And Stairs
Tip the wheelchair forward until the front castors rest on the upper surface of the obstacle. Lean forward in the chair so that the rear of the chair is lighter. Grasp the hand rims tightly and move the rear wheels forwards to push them on top of the obstacle. Joker Energy / Noir 2.0 21... - Page 22 In the case of stairs with more than one step, two assistants are always required. The first assistant stands behind the wheelchair and holds the push handles. The second assistant grasps a fixed part of the front frame, guiding the wheelchair manoeuvre from the front. Joker Energy / Noir 2.0 22...
-
Page 23: Negotiating Slopes Or Inclines
Hold on to the hand rims on the rear wheels and allow them to slide slowly through your hands. The occupant should be able to stop the wheelchair at any time simply by blocking the motion of the hand rims. Joker Energy / Noir 2.0 23... -
Page 24: Ensuring Stability
Do not move your upper body beyond the rear wheel as the wheelchair could overbalance. For greater safety and stability, hold on to the wheelchair with your free hand. Do not lean too far out to the side, the wheelchair could overbalance. Joker Energy / Noir 2.0 24... -
Page 25: Trasport Of The Wheelchair
Take hold of the chair with two hands on the two fixed parts of the frame to balance the wheelchair’s weight and make it easier to lift. Load the wheelchair into the car and then the rear wheels. Joker Energy / Noir 2.0 25... -
Page 26: General Description Of Parts
9 Rear wheel 10 Quick release axle 11 Tyre 12 Fork 13 Castor JOKER ENERGY 14 Calf strap 15 Footrest plate (fixed on the aluminium tubular plate) 16 Footrest plate 17 Footrest post NOIR 2.0 Joker Energy / Noir 2.0 26... -
Page 27: Adjustments
ADJUSTMENTS The PROGEO wheelchair is a medical device manufactured according to a patient-specific data sheet compiled by qualified personnel. Rehateam s.r.l.. manufactures, tests and delivers the wheelchair to the dealer with the measurements and characteristics required in the order data sheet. -
Page 28: Accessories
Remember that while using the transit wheels (with the rear wheels removed), the parking brakes will not work at all. The stability of the wheelchair resting on the wheels for narrow passages is reduced, therefore pay great attention and seek help from an assistant. Joker Energy / Noir 2.0 28... -
Page 29: Anti-Tip Wheel
(6) To put the anti-tip wheel on, insert the part A of the support in the hole of the part B and turn the post until the two parts locks together. The supports A and B are precisely machined; thus the anti-tip wheel may be inserted only with a vertical movement. Joker Energy / Noir 2.0 29... -
Page 30: Push Handles For Assistant
To insert the tipping aid, slide the post in the support B until the pin A touches the support. Then, press the pin and let the post in until the pin locks through the hole of the support. Joker Energy / Noir 2.0 30... -
Page 31: Crutch Support
To swing the handle up to the operating position (2), just swing it up until the pin A automatically locks. When the assistant moves the wheelchair with the occupant sitting on it, make sure the push handles are safely locked in their operating position. Joker Energy / Noir 2.0 31... -
Page 32: Tetraclip
Before using the tray, make sure it is firmly fixed. Try to move it to-and-fro: if it does not move, it is ready for use. To remove the tray, loosen the bolt A of the support S on each side of the wheelchair and slide it off. Joker Energy / Noir 2.0 32... -
Page 33: Pelvic Belt And Harness
Once seated in the chair with the belt or harness in place, the occupant can close the buckles by fastening the two parts together. Both belts can be easily adjusted by pulling the extremities of their bands. Joker Energy / Noir 2.0 33... -
Page 34: Lumbar Support
Turn the lever A by 90°and swing the lateral support to the opposite position where it will automatically lock. Make sure the system is stable. Always check the adjustment; in fact, if the system is unstable, it may pose a risk to the occupant. Joker Energy / Noir 2.0 34... -
Page 35: Rear Wheels
*You can choose this type of wheel as an additional kit to the main rear wheels you choose for your wheelchair. In this case, the wheels are interchangeable and, thus, you simply remove one pair and fit the other. See also the chapter “Quick release rear wheels”. Joker Energy / Noir 2.0 35... -
Page 36: Hand Rims
7.13 Hand rims Special hand rims are available for this PROGEO wheelchair model. Their special features ensure improved grip and therefore a more efficient pushing motion, especially for occupants with limited strength or mobility of the hands and fingers. When assembling these hand rims, there is a risk of pinching or crushing the fingers between the hand rim itself and the wheel rim. -
Page 37: Spoke Guards
1 cm. Soft castors offer a more comfortable drive than hard ones. The pneumatic castor is the most comfortable but must be inflated regularly. Hard casters absorb less vibration when driving on rough surfaces. Joker Energy / Noir 2.0 37... -
Page 38: Clothing Guards
The lateral clothing guards provided with this model are in carbon fibre. They can either be of the “mudguard” (1) or “straight” (1) type. For the Joker Energy model, the straight lateral clothing guard may also be in aluminium, welded to the frame. -
Page 39: Vanity Flap (Seat/Backrest Bonding Canvas)
This accessory is very useful for protecting the frame from possible impact. The application of this padding is quite simple, in fact it is sufficient to wrap it around the frame and fasten it with the Velcro strips. Joker Energy / Noir 2.0 39... -
Page 40: Seat With Velcro Straps
The operation is rather easy, in fact just detach the Velcro strap from itself and stretch it or slacken it as needed by letting it run through the buckle A. Finally, fasten the Velcro strap. 7.22 Rigid seat This is a non-deformable carbon fibre rigid seat board that provides greater stability. Joker Energy / Noir 2.0 40... -
Page 41: Maintenance
Have a complete check of the wheelchair carried out (at least every three months) by qualified personnel authorised for maintenance on PROGEO products. For any questions relating to the adjustment and maintenance of your PROGEO wheelchair, the experienced technical staff at Rehateam s.r.l. are at the complete disposal of all our clients. -
Page 42: Replacement Of Worn Parts
• Check the folding system (seat and/or backrest). • Check the footplate. • Check the parking brakes. • General check of all screws. • The condition of all parts subjected to wear and tear. Joker Energy / Noir 2.0 42... -
Page 43: Disinfection And Reuse Of The Wheelchair
Alternatively, you can return the backrest to your dealer for disposal In the event of disposal, be aware of any broken or damaged parts which could create a situation of potential danger with cutting or pinching injuries. The use of suitable protection is recommended. Joker Energy / Noir 2.0 43... -
Page 44: Troubleshooting Guide
Change tyres. Friction on the locking pin. Clean and lubricate the parts. The backrest does not lock. The travel-limit screw is too long and it touches the frame before Tighten the travel-limit screw. locking occurs. Joker Energy / Noir 2.0 44... -
Page 45: Technical Specifications
WEIGHT OF REAR WHEELS (pair) 3.2 kg 3.2 kg WEIGHT OF REMOVABLE FOOTRESTS WEIGHT OF ARMRESTS (pair) 1.0 – 2.0 kg 1.0 – 2.0 kg MAXIMUM LOAD 125 kg 125 kg OVERALL FOOTPRINT (folded wheelchair) TILT-IN-SPACE Joker Energy / Noir 2.0 45... -
Page 46: Warranty
The authorised distributor in cases of simple repairs may take action independently to eliminate the defect or bring the defect to the attention of Rehateam s.r.l. in specific cases. With reference to our production line that is labelled with the trademarks PROGEO and PHYSIO, since these products are manufactured to occupant specifications and with artisanal and not industrial procedures, minor imperfections, minor colour and carbon fibre weave discrepancies are not to be considered as defects. - Page 47 Joker Energy / Noir 2.0 47...
- Page 48 UNI CEI EN 13485 : 2016 Place of production: Castagnole di Paese (TV) ITALY DISTRIBUTOR / DEALER PRODUCT LABEL Date of delivery to user: ___________________________ Stamp of distributor / dealer Joker Energy / Noir 2.0 48...
