Summary of Contents for progeo JOKER ENERGY

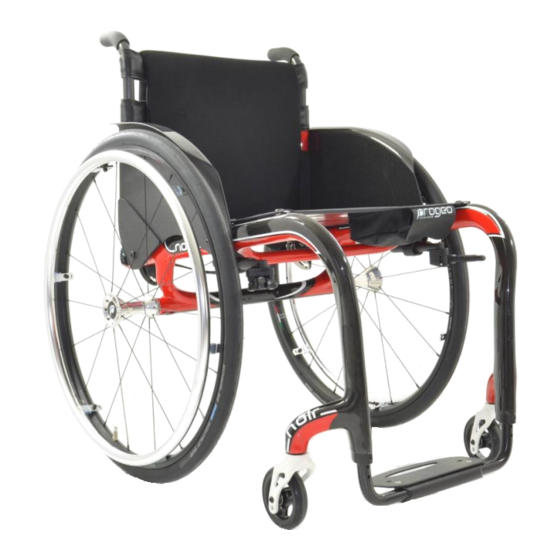

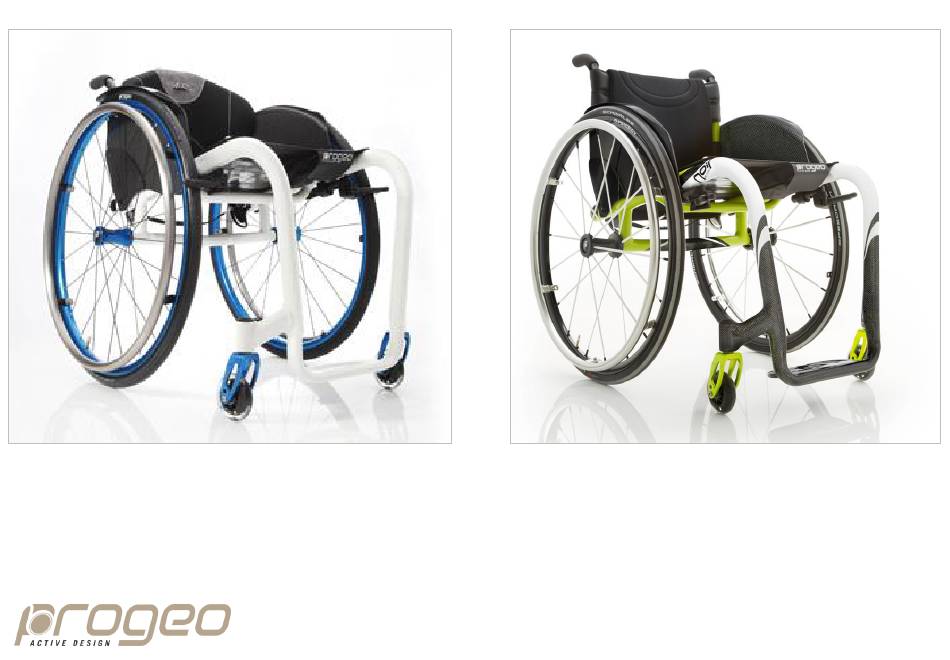

- Page 1 JOKER ENERGY NOIR User’s manual ENGLISH - rev. 10 - 29/06/2016...
- Page 2 Joker Energy , Noir...
-
Page 3: Introduction
FIREPROOF PROPERTY This product has been tested in compliance with the rule EN12183. Such rule includes a flammability test. Joker Energy , Noir... -
Page 4: Table Of Contents
Replacements of worn parts Tyre pressure Inspection of components Brakes Trouble shooting guide Quick release rear wheels TECHNICAL DATA Folding/unfolding the backrest EC CERTIFICATE Footplate WARRANTY Calf strap Adjustable backrest upholstery Armrests Fasteners 2.10 Wheelchair lifetime Joker Energy , Noir... -
Page 5: Intended Use And Condition Of Use
It is important that a general check of all the functional parts of the wheelchair IS CARRIED OUT BY QUALIFIED AND AUTHORISED PERSONNEL ONLY, both to The wheelchair JOKER ENERGY / NOIR is self-propelled which means that it can be moved assess its suitability and to provide the user and his/her possible attendant with manually by using the hand rims on the rear wheels. -
Page 6: Tyre Pressure
However, during normal use, they are less fluent than traditional tyres. To release the brake, pull the lever backward. The brake automatically goes back to its resting position. Joker Energy , Noir... - Page 7 In order to do so, pull the lever up first and then fold it forward. To put it back to the normal using position, turn the lever up and then push it down Joker Energy , Noir...
-
Page 8: Quick Release Rear Wheels
If the quick release axles are not correctly placed and fastened they may work loose during normal use and could result in the wheel accidentally coming off, in the wheelchair overbalancing and possibly causing injury. Joker Energy , Noir... -
Page 9: Folding/Unfolding The Backrest
With one hand, take hold of the string A that is located at the lower side of the backrest and pull it The model JOKER ENERGY / NOIR is a rigid frame wheelchair and you can fold the backrest only. -
Page 10: Footplate
3 height, angle and position adjustable aluminium footplate with titanium tubes. 4 height adjustable carbon fibre footplate with aluminium tubes. The models JOKER ENERGY and NOIR, can be provided with made-to-measure integrated 5 height, angle and position adjustable carbon fibre footplate with aluminium tubes. -
Page 11: Calf Strap
The calf strap has to be adjusted in such a way that the user’s feet never touch the required and place the upholstery back. casters. You can easily adjust the calf strap via Velcro straps. Joker Energy , Noir... -
Page 12: Armrests
If you wish, you can swing the armrest away until it locks in its The model JOKER ENERGY / NOIR can be equipped with Tubular armrests. opposite position (the part A locks in the part B). -
Page 13: Fasteners
2.10 Wheelchair lifetime When delivered to the user, the wheelchair is checked by the retailer who, thus, The PROGEO® wheelchairs are daily used and consequently they undergo ensure it is in perfect condition. continuous stress that causes an inevitable wearing out of the parts. -
Page 14: Safety
While getting into or out of the wheelchair do not place your feet on the footplate. The Progeo® wheelchair is a medical device and therefore it MUST NOT BE This could result in the wheelchair tipping up, possibly causing harm both to the LENT NOR GIVEN TO OTHER USERS even for short period. -
Page 15: Starting To Drive Your Wheelchair
Tip the wheelchair forward until the front wheels are on top of the obstacle. Lean forward in the chair so that the rear of the chair is lighter. Hold the hand rims tightly and move the rear wheels forwards bringing them over the top of the obstacle. Joker Energy , Noir... -
Page 16: Dealing With Slopes Or Inclines
Hold on to the hand rims on the rear wheels and allow them to slide slowly through your hands. The occupant should be able to stop the wheelchair at any time simply by blocking the motion of the hand rims. Joker Energy , Noir... -
Page 17: Ensuring Stability
In order to do this, move the wheelchair forwards and then backwards. Do not engage the brakes. Lean backwards without changing your sitting position. Do not lean too far back over the backrest, wheelchair could overbalance. Joker Energy , Noir... -
Page 18: Trasport Of Wheelchair
Fold the backrest. Take hold of the chair with one hand on the front frame and the other hand on another part of the frame to balance the weight of the wheelchair and make lifting it easier. Joker Energy , Noir... -
Page 19: General Description Of Parts
8 Hand rim 9 Rear wheel 10 Quick release axle 11 Tyre 12 Fork 13 Caster 14 Calf strap JOKER ENERGY 15 Plastic plate (fixed on the aluminium tubular plate) 16 Footresr plate 17 Footplate tube NOIR Joker Energy , Noir... -
Page 20: Adjustment
Check that all screws and nuts are tightened and that all moving parts are functioning correctly. The PROGEO® JOKER ENERGY / NOIR wheelchair is a medical device based on the patient detailed specifications that are reported on the original order form filled in by qualified personnel. -
Page 21: Accessories
B and turn the tube until the two parts locks together. Due to the precision of the supports A and B, inserting and removing the anti-tip wheel is possible only with vertical movement. Joker Energy , Noir... -
Page 22: Push Handles For Attendant
A and slide the fork off. To put it on, press and hold the pin P and let the axle A go through the hole of bearing to full stroke. Finally, release the pin. Joker Energy , Noir... -
Page 23: Tetraclip
Once seated in the chair with the belt or harness in place the occupant can close the buckles by fastening the two parts together. Both belts can be easily adjusted by pulling the extremities of their bands. Joker Energy , Noir... -
Page 24: Lumbar Support
You can choose this type of wheel as additional kit to the main rear wheels you choose for the wheelchair. In this case, the wheels are interchangeable and, thus, you just have to remove one pair and put the other on. Joker Energy , Noir... -
Page 25: Hand Rims
7.11 Hand rims 7.12 Tyres For this model of PROGEO wheelchair, special hand rims are available. Different type of tyres are available. These hand rims with special features ensure improved grip, and therefore a more efficient pushing The compatibility with the rear wheel depends on the wheel’s size. -
Page 26: Spoke Guards
Note: there is also another foam pad layer, however, this is not 5” soft 5” active soft removable because it is sewed to the cover. 7.15 Side guards They can be of the type “mudguards” or “straight”. 5 mm Joker Energy , Noir... -
Page 27: Maintenance
MAINTENANCE For any questions relating to the adjustment and maintenance of your PROGEO wheelchair, the experienced technical staff at RehaTEAM are at the complete disposal of all our clients. You can contact us directly at the address below: Periodic inspection of the wheelchair is vital to guarantee maximum performance and a long life. A ®... -
Page 28: Inspection Of Components
Friction on the locking pin. Clean and lubricate the pin. ◙ The full stroke bolt is too long The backrest does not lock. and it touches the frame before Screw the full stroke bolt. the point where the pin locks. Joker Energy , Noir... -
Page 29: Technical Data
TECHNICAL DATA model JOKER ENERGY TECHNICAL DATA model NOIR SEAT WIDTH 330 360 390 420 450 480 mm SEAT WIDTH 330 360 390 420 450 mm SEAT DEPTH 350 375 400 425 450 475 500 mm SEAT DEPTH 350 375 400 425 450 475 mm... -
Page 30: Ec Certificate
Vicolo Negrelli, 4 – 31040 Castagnole di Paese (TV) Italy based in Vicolo Negrelli, 4 – 31040 Castagnole di Paese (TV) Italy declares that the product defined as declares that the product defined as WHEELCHAIR FOR DISABLED PEOPLE, PROGEO SERIES, WHEELCHAIR FOR DISABLED PEOPLE, PROGEO SERIES, NOIR JOKER ENERGY... -
Page 31: Warranty
WARRANTY With reference to our production line that is labelled with the marks PROGEO and PHYSIO, being these products manufactured to measure and with artisanal and not industrial procedures, minor imperfections, minor imprecisions on colours and The warranty agreement exists only between RehaTEAM® s.r.l. and its authorised carbon fibre weaves are not to be considered as defects. - Page 32 By RehaTEAM® Srl Vicolo Negrelli, 4 – 31040 Castagnole di Paese (TV) Italy Tel. +39 0422 484657 ra Fax +39 0422 484661 http//www.rehateamprogeo.com progeo@rehateamprogeo.com WARRANTY CERTIFICATE Medical device Class 1 directive 93/42/EEC s.m.i. ULTRA LIGHT WHEELCHAIR Place of production: Castagnole di Paese (TV) - ITALY...
