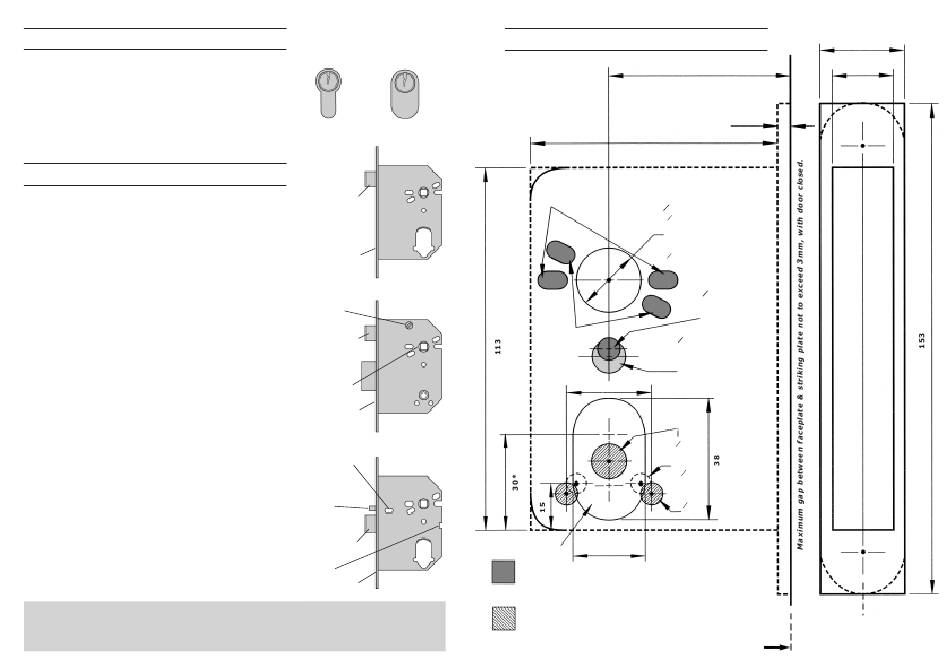

FITTING CYLINDERS
To fit a Euro Profile cylinder, simply remove the
faceplate, place the cylinder in the cylinder hole, and
insert the fixing screw through the forend into the
cylinder.
When fitting an Oval Profile cylinder, the two plastic
inserts in the cylinder hole should first be levered out
with a screwdriver or similar tool; then proceed to fit
new cylinders as above.
CHANGING HAND
SASH LOCK, LATCH
1) Remove the faceplate from the lock.
2) Rotate the latchbolt to the desired handing.
3) Replace the faceplate and test the operation of the
lock. Locks with brass finish: remove temporary M4
screw from faceplate and fit brass M4 screw.
BATHROOM LOCK, ESCAPE SASH LOCK
1) Remove the faceplate from the lock with the
deadbolt extended.
2) Retract the latchbolt by placing a lever handle
spindle into the handle follower and turning it.
3) With the latchbolt retracted, remove the handing
screw (illustrated).
4) Turn the handle back until it is possible to reverse
the latchbolt (do not completely release the
handle).
5) Fully retract the handle again and replace the
handing screw and faceplate. Release the handle
and replace the faceplate.
6) Test the operation of the lock.
NIGHTLATCH
1) Remove the faceplate.
2) Insert a screwdriver or similar tool into the handing
hole in the rear of the case.
3) Push the latchbolt clear of the forend and rotate to
the correct hand.
4) Insert a screwdriver or similar tool into the
deadlocking ram handing slot.
5) Push the deadlocking ram clear of the forend and
rotate to the correct hand.
6) Replace the faceplate and test the operation of the
lock.
3069B EMERGENCY DEADLOCK
The lock is supplied with two self adhesive labels. Please ensure the appropriate label
(depending on the handing of the door) is attached to the inside of the door.
Euro Profile Oval Profile
Latchbolt
Faceplate
Handing
Screw
Latchbolt
Handle
Follower
Faceplate
Handing
Slot
Deadlocking
Ram
Latchbolt
Handling
Hole
Faceplate
TEMPLATE
77
Drill for
other handles
o20
(o25 for Escape Nightlatch,
Escape Sash Lock and
Escape Deadlock)
See note on front cover
(o25 for Funxion handles)
Drill for
ASSA round
rose handles
*26.5
22
See note on front cover
Drill as required for handles to be used.
Drill holes for cylinder, handle spindle and handle
screws as appropriate for the products to be fitted.
*NOTE: On Bathroom lock only, drill holes in shaded
area instead of normal cylinder cut-out.
On 44mm doors, fold along line and place around edge of door
57
4
o7
Drill for DIN
Severe Duty
handles
o10
(When fitting 3020 with
3508 - Drill hole on
INSIDE FACE of door
only)
See note on front cover
*o10
*o6
*o7
26
19
Centre
line of
door
