Assa Abloy Lockwood 3P82TSS-A11E Mounting Instructions

HAND OF DOOR ACCORDING TO ENGLISH PRACTICE
DOOR OPENING IN DOOR OPENING OUT
INSIDE
RIGHT LEFT
HAND HAND
LOCK LOCK
RIGHT
HAND
LOCK
OUTSIDE
SETTING OF HUB FUNCTION
1
Establish functional operation
for the required side of the
door.
Fully loosen screw to free hub
selection disc. (Screw will be
retained)
Rotate disc to desired position.
Retighten screw. (Note: Do
not use power driver for this
3.
application.)
2.
A A
NTI-LOCKOUT NTI-LOCKOUT
'C'
C C
OMBINATION OMBINATION -
E
E 'E'
SCAPE SIDE - SCAPE SIDE
E
Escape (Left side) - Left side handle set to Escape
E Escape (Right side) - Right side handle set to Escape
C
Combination – both handles lockable
A
Anti-lockout (Left side) - Left side handle set to Anti-lockout
A
Anti-lockout (Right side) - Right side handle set to Anti-lockout
Anti-lockout - Retracting the bolt by inside lever handle, key or closing the
door will 'kick-off' the locking feature, and unlock outside lever handle.
To reset Hub Function - The Cylinder Function Position must be at '0', 'I' or 'II',
see Section 2 for setting of Cylinder Function.
Part No.
Function
Escape Office Lock - Anti-lockout
3P82TSS-A11E
Outside - Handle locked/unlocked. Key locks/unlocks.
Inside - Handle always free. Turn locks/unlocks.
Old P/No. 3582WA#SC
Escape Office Lock
3P82TSS-E11E
Outside - Handle locked/unlocked.
Inside - Handle always free. Turn locks/unlocks.
Old P/No. 3582WT#SC
Storeroom Lock
3P82SS-E23E
Outside - Handle rigid. Key retracts latch.
Inside - Handle always free.
Old P/No. 3582X-#SC
Entry Door Lock
3P82TSS-E21E
Outside - Handle locked/unlocked. Key retracts latch.
Inside - Handle always free. Turn locks/unlocks outside.
Old P/No. 3582XT#SC
Classroom Lock
3P82SS-E11E
Outside - Handle locked/unlocked. Key locks/unlocks.
Inside - Handle always free.
Old P/No. 3582Z-#SC
Anti-Vandal Classroom Lock
3P82VSS-E11E
Outside - Handle locked/unlocked. Key locks/unlocks/retracts latch.
Inside - Handle always free.
Double Cylinder Glass Door Lock
3P82SS-C11D
Outside - Handle locked/unlocked. Key locks/unlocks.
Inside - Handle locked/unlocked. Key locks/unlocks.
Old P/No. 3584ZZ#SC
Glass Entry Door Lock
3P82SS-C21E
Outside - Handle locked/unlocked. Key retracts latch.
Inside - Handle locked/unlocked. Key locks/unlocks.
Old P/No. 3584XZ#SC
Single Cylinder Glass Door Lock
3P82SS-C11E
Outside - Handle locked/unlocked. Key retracts latch.
Inside - Handle locked/unlocked.
Old P/No. 3584Z-#SC
# - Denotes Left (L) or Right (R) lockset
CONTENTS
3P80 series mortice lock
Cover plate
INSIDE Strike
Strike box
Spindle (x2)
LEFT
HAND
Spindle spring (x2)
LOCK
OUTSIDE
SETTING OF LOCK FUNCTION
2
Function setting
tool (supplied)
1.
A 'A'
NTI-LOCKOUT -
C
OMBINATION
E
SCAPE SIDE
Hub
Setting
A
E
E
E
E
E
C
C
C
For a full list of all functions visit
Cylinder retaining pin (x2)
M4 x 8 screw (x9)
Function setting tool
Instructions
Establish the cylinder function
required on each side of the lock.
Use the Function setting tool
to set the desired position on
each side of the lock.
Feel for 2 'clicks' and ensure the
indicator hole and marks are
aligned.
Indicator Hole
'Click, Click'
RESETTING OF CYLINDER
FUNCTION
If resetting is required, insert
cylinder retaining pin into
'RESET' hole and set to required
position.
Remove cylinder retaining pin.
Cylinder retaining pin
Outside Inside
Turn
Setting Setting
Adaptor
3P72-STA01
3P72-STA01
N/A
3P72-STA01
N/A
3P72-VTA01
N/A
N/A
N/A
lockweb.com.au
or contact 1300 LOCK UP (1300 562 587)
3P80 SERIES MORTICE LOCK
MOUNTING INSTRUCTIONS
TOOLS REQUIRED
Electric drill
Phillips head screwdriver
Ø3, 4.5, 10, & 19mm drill bits Ruler / Measuring tape
Router or compass Saw
Pencil
File
Please ensure that all necessary safety precautions are
undertaken when installing this lockset.
SETTING OF CYLINDER FUNCTION
Cylinder Function Setting Positions
Lock
side
0
Passage
mode
Lock/Unlock
mode
(Unlocked position)
Retracts latch
by key or turn
Lock/Unlock
mode
(Locked position)

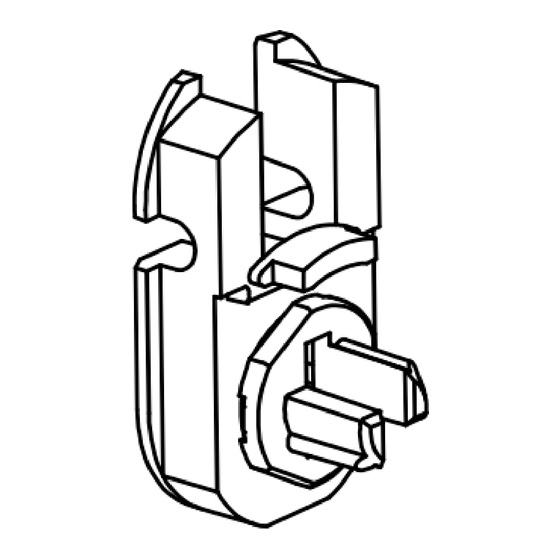

TURN KNOB ADAPTORS (If required)
3
3P72-ETA01 3P72-STA01
Emergency (E) Standard (T)
INSTALLATION OF STANDARD
TURN ADAPTOR
Install turn adaptor to inside of
lockset, ensuring cam is engaged.
2.
Insert retainer pin to secure
adaptor in lock.
1.
EMERGENCY TURN ADAPTOR
EMERGENCY
Turn Adaptor Ensure lock is in Position 1 and
THIS SIDE OF
both sides are in the UNLOCKED
LOCK ONLY
mode.
Install Emergency turnknob
adaptor (
the side of lock as shown only.
Ensure through slot is vertical
when in UNLOCKED mode.
Insert retainer pin to secure
adaptor in lock.
Lock
side
0
Passage
mode
Lock/Unlock
mode
(Unlocked position)
Retracts latch
by key or turn
Lock/Unlock
mode
(Locked position)
3P72-VTA01
Anti-Vandal (V)
3P72-ETA01 ) into
