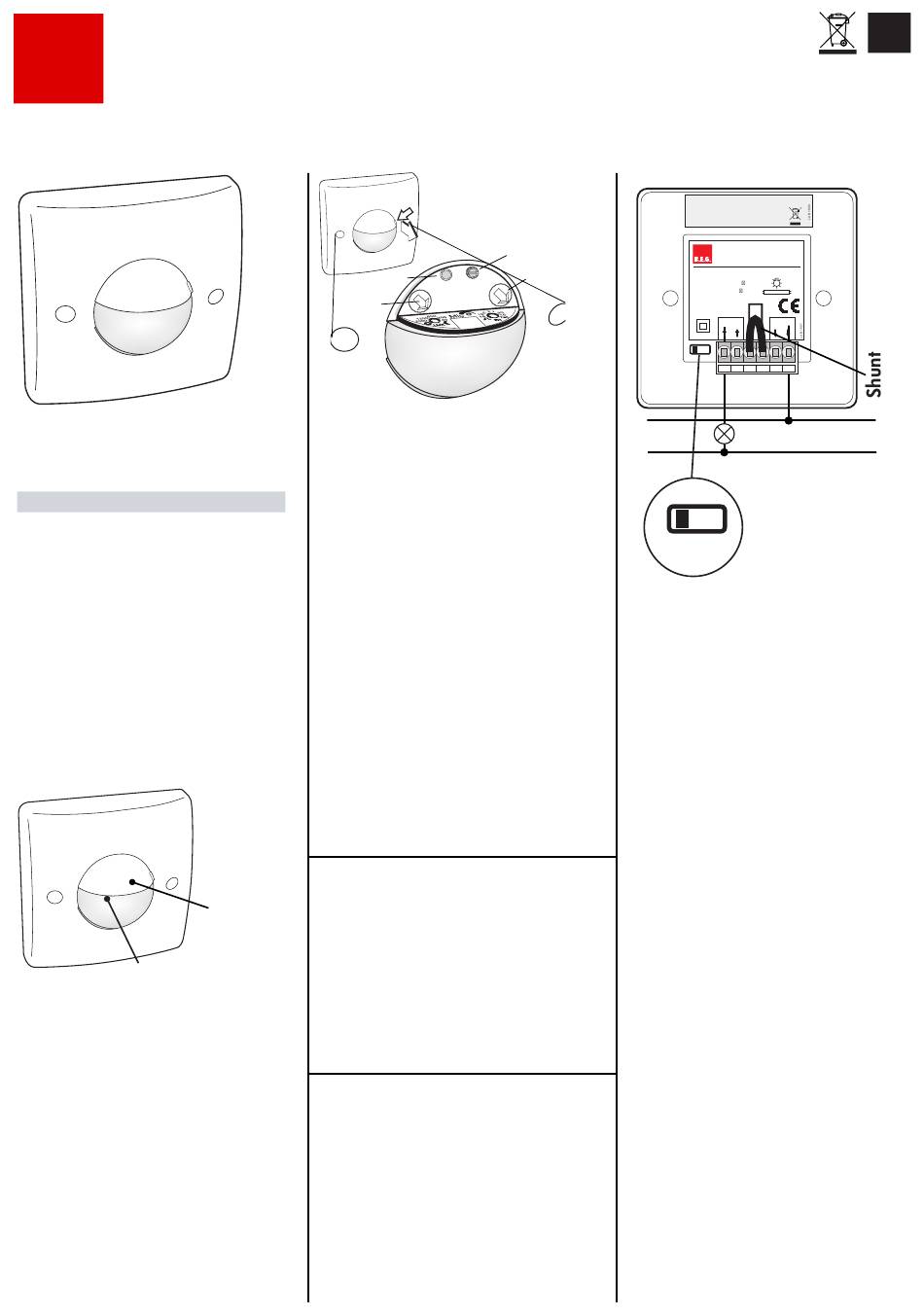

Operating and mounting Instruction for B.E.G. -Occupancy detector as wallswitch Indoor 180/R-2W UK
CAUTION: Have all work involving the 230 VAC mains supply
carried out by a qualified electrician!
Before starting disconnect the mains !
Article detection angle
Indoor 180R 2W UK 180°
1. Product description
The LUXOMAT Indoor 180-R/2W UK is a occupancy detec-
®
tor designed for flush-mounting in indoor lighting applications.
The Indoor 180 utilizes infrared- and accoustic- sensing
technology to detect the presence and movement of persons
(as well the infrared-radiation of larger animals and objects).
The sensor contains 2 red LEDs:
LED 1 for indication of
movements (in normal operation)
lux-level (in TEST mode)
LOW BATTERY/2hr charging status
LED 2 for sound indication
LED-1
Movement/Lux-level
Low Battery
Furthermore it contains a twilight (Lux) sensor, a microphone
and a timer.
Lux-level , microphone and timer can be set here:
remove top cover as shown, this will give access to the controls.
Please follow the markings on the flat top of the lens for
adjustment.
®
RESET
LUX
Fig.1
Function:
(Assuming the unit is switched OFF, 230 VAC is present and
battery is charged).
Once the set twilight level is reached (=dark), the Indoor 180
will react only to detected movements and turn ON the relay,
thus illuminating the room, until no further movements or sounds
are detected and the internal timer elapses.
Once switched ON, each detected movement and/or sound will
Part.-Nr.
restart the timer interval thus prolonging the ON-period.
Once the relay is switched OFF, the accoustic sensor remains
92615
active for another 8-10 sec, to allow the relay to be re-triggered
by sounds or noises into ON state within this period.
2-wire installation:
The Indoor 180-R/2W-UK model has been specifically designed
to replace manually operated light-switches in so called 2-wire
installation.
2-wire installations pose the problem, that once the relay turns
ON the connected luminaires, the powersupply for the sensor
is cut-off.
The solution to this problem is the use of a rechargeable battery,
which will be charged while the luminaires are OFF and which
will supply the sensor while the luminaires are switched ON.
In ON state the sensor will draw power from the battery and
constantly monitor the battery voltage.
Once the battery voltage drops to a defined LOW-BATTERY
value, the sensor will switch OFF the relay and enforce a
2hrs long charging period.
The LED-1 will quickly flash!
(Please note: during this 2hrs-period , the unit remains OFF and
will not react to any movement or sound)
If no mains supply is present, the battery will discharge further
and at some point in time the deep-discharge protection will kick
in and shut down the sensor entirely.
2. Prior to Installation
Before installation the following has to be considered:
• The LUXOMAT
LED-2
installation in standard switch flushmount boxes.
Sound
• The recommended fixing height is 1.10 - 2.2m
• No parallel installation of units is allowed/
recommended.
• The connect luminaire load must not exceed
Ohmic load
Fig.2
Inductive load
Electronic ballast
• There must be no obstacles in the view of the sensor, since
infrared rays cannot penetrate solid materials.
• The LUXOMAT
switch which cannot be used in intrusion applications.
The minimum load must exceed 50 W. If not, please
install the capacitor.
3. Installation
The 230VAC mains to be switched OFF
The LUXOMAT
®
box. The location height on the wall should be between
1.10 - 2.20 m.
Indoor 180/R-2W UK
MIC-SOUND
TIME
Indoor 180 is designed for the
®
3000 W, 10 A, cosϕ= 1
1500 VA, 5 A, cosϕ= 0.5
35x 50 W 140 uF max.
Indoor 180 is an automatic light
®
Indoor 180 fits into a standard flushmounting
Connect wiring as shown:
contains RECHARGEABLE BATTERIES:
6 x NiMH/30AAAAH
1.2V/300mAh
LUXOMAT
INDOOR 180-R/2W-UK
230VAC ± 10% , 50-60Hz
2300W/10A/cos =1
1150VA/5A/cos =0.5
IP20
L'
ON OFF
Fig.3
L
N
Attention:
S
Before installation switch S is
to be put in position „ON"
ON OFF (left)!
Note:
There is a pre-inserted shunt (thick wire) .
In normal operation this shunt must be installed!
Do not remove!
Setting into operation:
Note:
The battery is in most cases discharged due to prolonged period
of storage and requires charging!
Once connections are in place and the unit is securely fastened,
turn on mains supply.
Scenario A:
Battery is discharged! - Lights remain OFF!
LED-1 shall light up and flash quickly to indicate
LOW BATTERY and sensor will remain for 2hrs in charging
mode = relay OFF.
Scenario B:
Battery is sufficiently charged! - Lights turn ON
LED-1 shall light up and flash slowly for start-up period of
60secs. After start-up period unit is operational.
Scenario C:
Battery is discharged! - BUT light turn ON!!
LED-1/LED-2 do not flash , relay does not switch!
In this unlikely case the unit cannot recover without removing the
SHUNT:
Turn OFF 230 VAC mains supply and remove shunt, than
reconnect 230VAC.
Without shunt installed , the load is disconnected from the relay
and regardless of relay state , charging should resume and LED-
1 should flash quickly (perhaps with some delay) .
Actions in scenarios A + C:
Let the unit charge for approx. 10mins.
The battery shall have recharged sufficiently to allow a few
minutes of sensor operation.
Than for Scenario C , disconnect 230VAC and install shunt ,
and connect 230VAC again.
For A + C now press the RESET button (near MIC control). Since
the battery is charged to nominal voltage, the unit will reset and
enter the start-up period (LED-1 slow flashing).
After 60 secs the unit is operational and settings can be
performed as described below.
GB
®
L
Fig.4
