7.3.1 Setting the minimum temperature
A
B

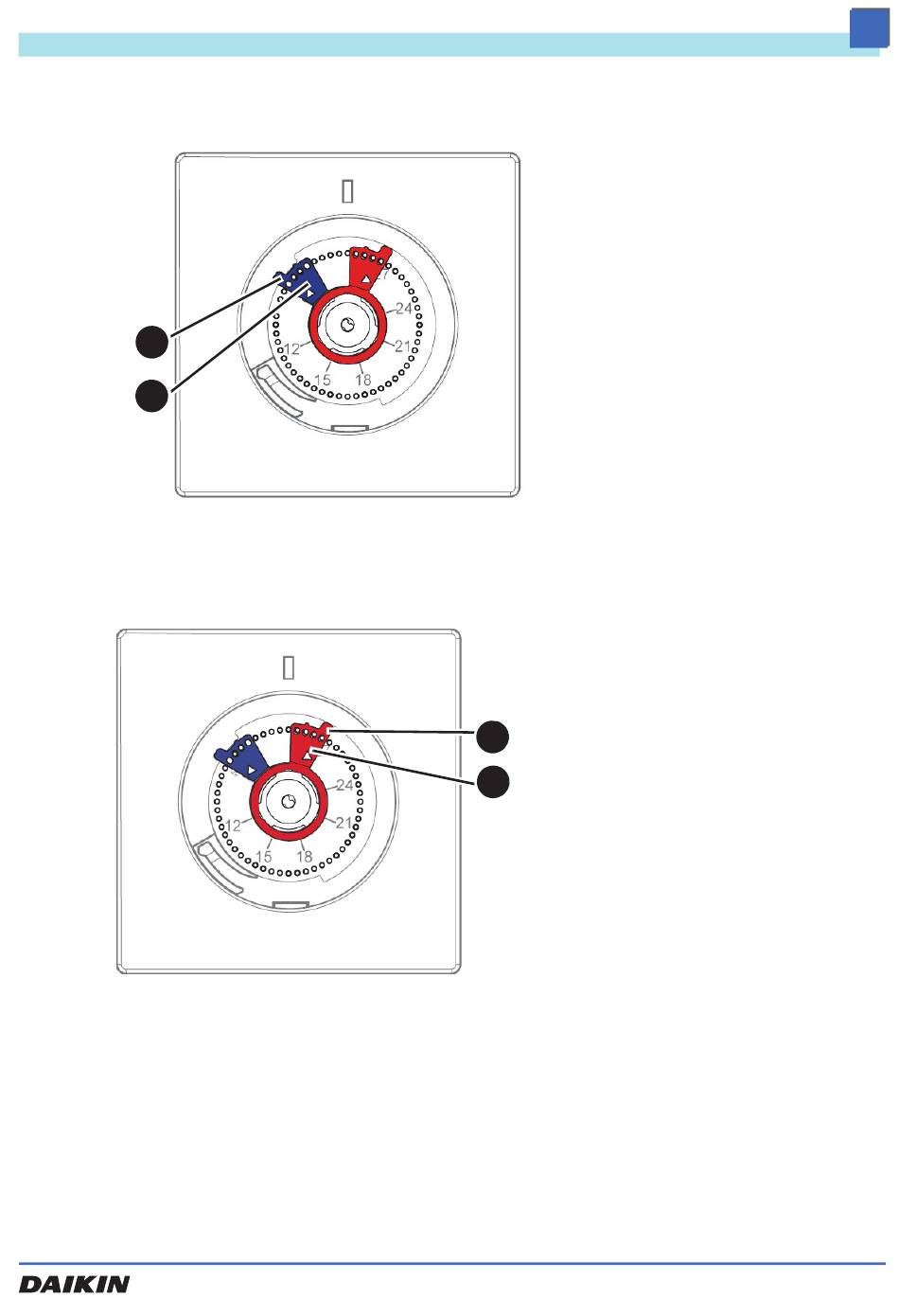

Fig. 7-6: Limiting the minimum temperature
7.3.2 Setting the maximum temperature
Fig. 7-7: Limiting the maximum temperature:
Operation
RoCon UFH
1. Lift the blue restrictor at the
flag (A).
2. Turn the blue restrictor with
the restrictor adjustment
edge (B) to the desired value
for the minimum temperature
and refit it.
1. Lift the red restrictor at the
flag (A).
2. Turn the red restrictor with
A
the restrictor adjustment
edge (B) to the desired value
B
for the maximum tempera-
ture and refit it.
3. Turn the cam screw at the
product back to the initial
position so that you can refit
the rotary knob.
4. Fit the rotary knob to the
upper part of the housing.
