Controller modules wired
A. Controller module RoCon UFH-
RMD2
B. Controller module RoCon UFH-
RMD6
C. End cover

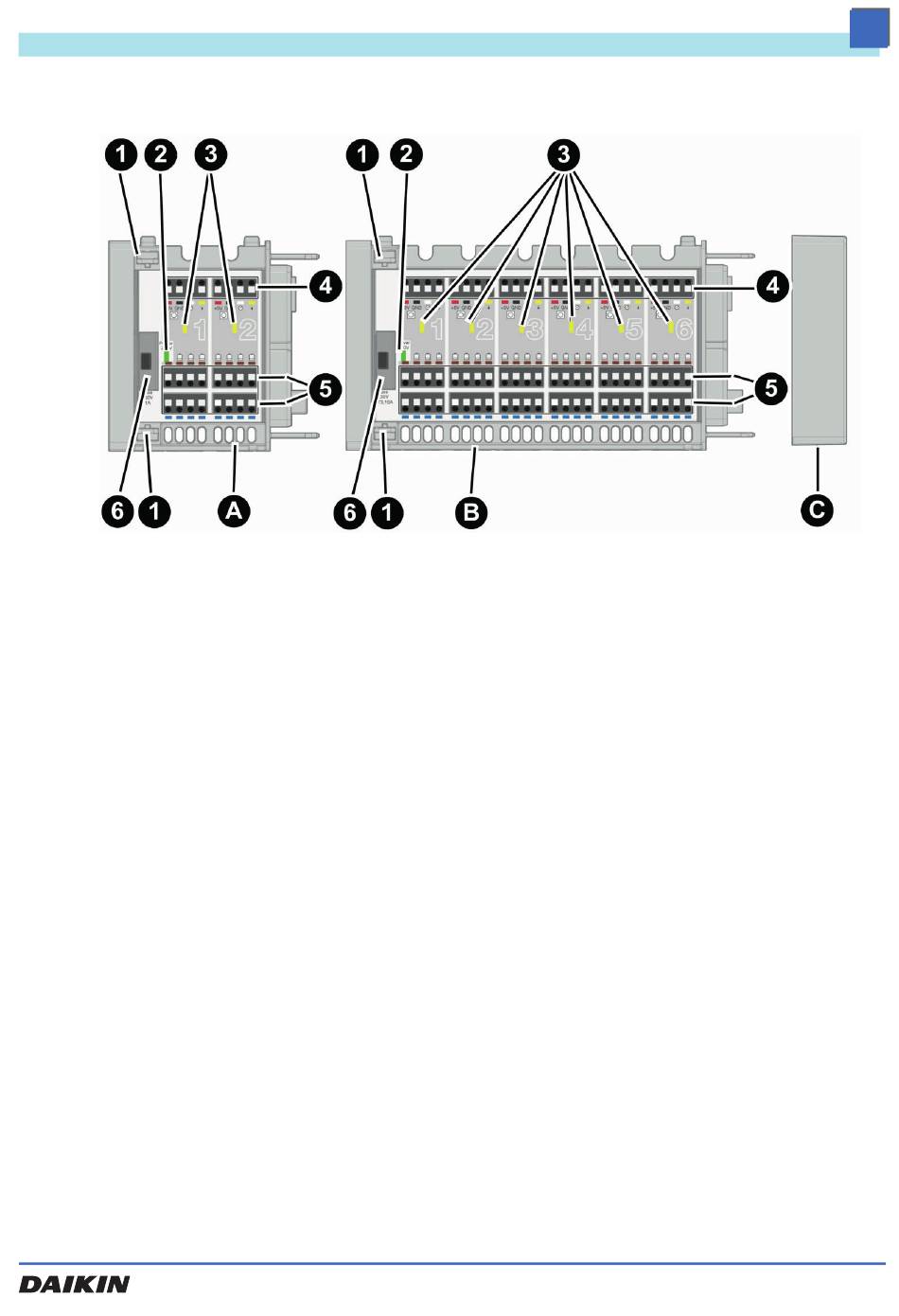

Fig. 4-2: Front view controller modules wired
RoCon UFH
Product description
1. Catch
2. Operation mains voltage (LED green)
3. Thermostatic actuator active (LED
yellow)
4. Terminal block for room controller
RoCon UFH-RD
5. Terminal block for thermostatic actua-
tors
6. Fuse compartment
