Installing Calf Strap - Invacare Action 2 Basic Service Manual

5. If necessary, repeat STEPS 1
Mounting Screw
Adjusting Elevating Legrest Angle, Height and Calf
pad Depth
NOTE: For this procedure, refer to FIGURE 2.5.
Ad justing the Legrest Angle
There are nine pre-set positions available for angle adjustment.
1. Loosening the knob and pull it up with one hand while
supporting the leg rest with your other hand.
2. Adjust into one of nine pre-set positions, downwards the knob
into the desired position and firmly tighten the knob.
3. If necessary, repeat STEPS 1
Ad justing the Footplate
There are two different foot plates available.
• Height adjustable foot plates
1. Loosening the fixing bolt A with 10 mm spanner.
2. Adjust into one of four pre-set positions and tighten the
fixing bolt (5 Nm) A into the desired position.
3. If necessary, repeat STEPS 1
• Height, depth and angle adjustable foot plates
1. Loosening the screw B with 5 mm Allen key.
2. Adjust into the depth and angle positions and firmly tighten
the screw (12 Nm) B into the desired position.
4 to adjust remaining Angle Adjustable Footplate.
-

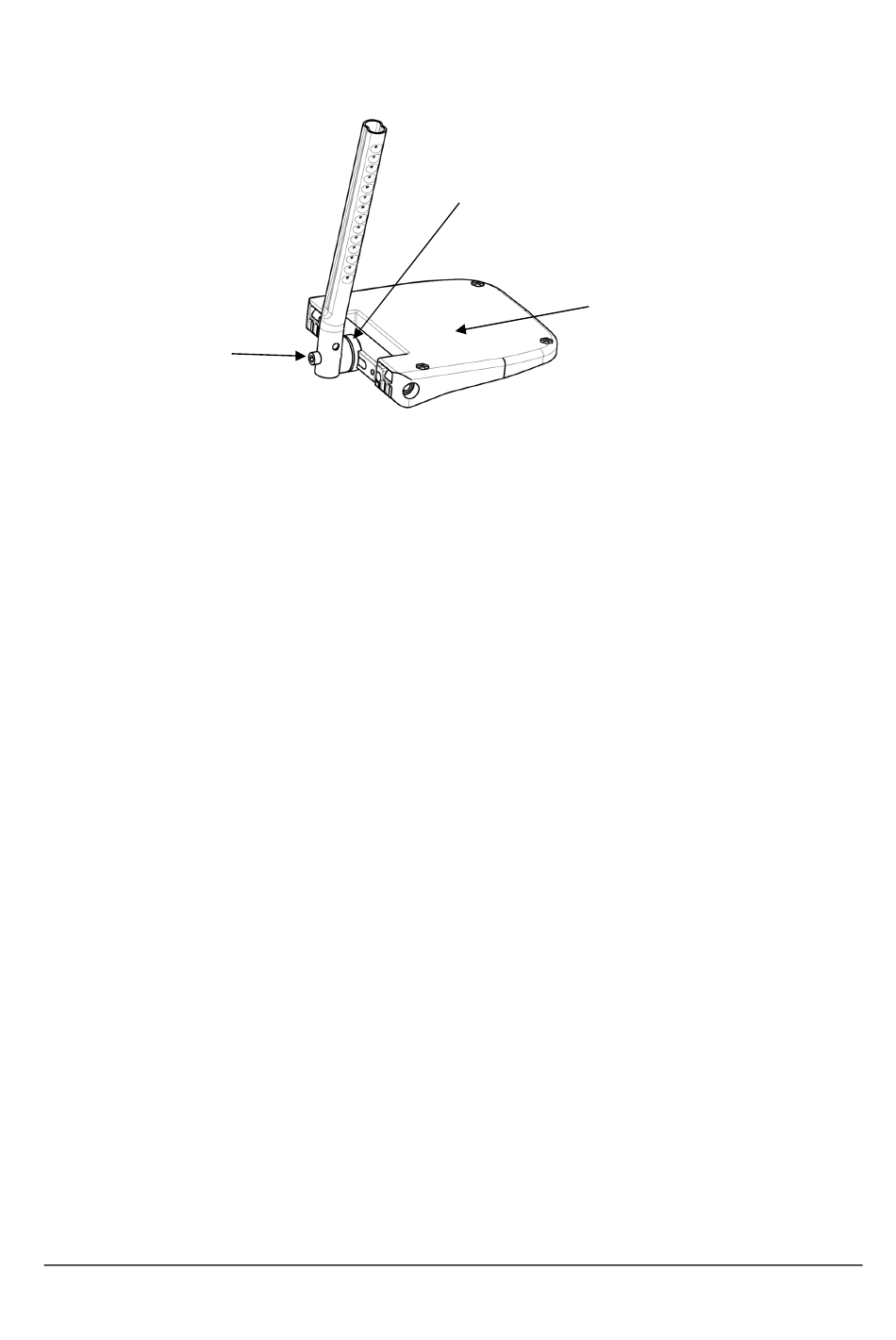

FIGURE 2.4 Installing Angle Adjustable Footplate
2 to adjust remaining elevating legrest angle.
-
SECTION 2—FRONT HANGERS
Tooth Plates
2 to adjust remaining footplate height.
-
12
Angle Ajustable Footplate
