2

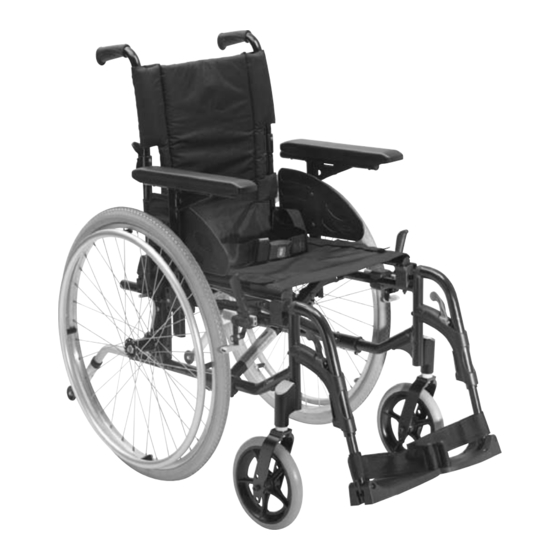

I n v a c a r e
Action
NG Range
®
®
User guide
EN
This manual must be given to the user of the product.
Before using this product, read this manual and safe for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Action 2 NG Range and is the answer not in the manual?

Questions and answers

Related Manuals for Invacare Action 2 NG Range

Summary of Contents for Invacare Action 2 NG Range

  • Page 1 I n v a c a r e Action NG Range ® ® User guide This manual must be given to the user of the product. Before using this product, read this manual and safe for future reference...
  • Page 2 Invacare. As the European and world's leading manufacturer of wheelchairs, Invacare endeavours to supply a wide range of wheelchairs to meet all the needs of the user in everyday life. However, final selection of the wheel- chair rests solely with the user and his/her qualified health advisor.
  • Page 3 ® inevitable that wear, tear and usage will eventually render the product unusable. Invacare® recommends that the average usable life of this product is five years, providing the product has been correctly...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS B. DESCRIPTION OF YOUR WHEELCHAIR A. GENERAL GUIDELINES Page Page 1. Presentation 1. Safety and operating limits 1.1. Introduction 1.1. Reaching an object from the chair 1.2. General description 1.2. Transferring to other seats 2. Adjustments 1.3. Tilting 2.1.

  • Page 5: General Guidelines

    A GENERAL GUIDELINES within the points of contact of the forward and rear wheels with the ground. 1. Safety and operating limits - Weight Limit The maximum recommended weight of the user is 125kg. For a safe operation of your wheelchair, the following para- However, the level of activity is an essential factor.
  • Page 6 This can cause the chair to tip backwards causing injury. Therefore, Invacare® strongly recommend the use of anti-tippers (available as an option) when using your backposts with additional load (back pack or similar items).

  • Page 7: Transferring To Other Seats

    1.2.Transferring to other seats 1.2.2 Front transfer (figure 9) If you are more or less able to stand up and if your upper 1.2.1 Sideways transfer body is strong and mobile enough, you can transfer forward to another seat. This may be done without assistance provided that you are If you find this movement difficult, we recommend that you sufficiently mobile and have a strong enough torso.

  • Page 8: Tilting

    - When transferring, position yourself as far back as possible Warning : in the seat to prevent breaking screws, damaging the seat - Be aware of detachable parts such as armrests or legrests : upholstery or causing the wheelchair to tip forward. they must NEVER be used as lifting supports as they may be - Lock the two brakes ;...

  • Page 9: Stairways

    - Method 2 (figure 12) Warning : In this case, the attendant stays on the pavement and tilts We recommend that users over 100 kg in weight do not use the wheelchair in a backwards position with the rear wheels this stairway manoeuvre ! against the kerb.

  • Page 10: Slopes

    1.6. Slopes Warning : It is recommended to avoid using ramps with a slope higher It is recommended to avoid using ramps with a slope greater than 9°. The wheelchair risks tipping over in the event of than 9 degrees and do not attempt to turn whilst on a slope. spinning or side movement (figure 14).

  • Page 11: Wheelchair Propulsion

    2.2. Wheelchair propulsion - Then, engage the two manual brakes, open the footrest/ legrest and check the ground clearance (footrest/ground Self propelling wheelchair propulsion is achieved through the distance - see paragraph B-2.1.4). You can now sit down in use of the handrims mounted on the wheels. the wheelchair.

  • Page 12: Safety Inspection And Maintenance

    3. Safety inspection and maintenance 3.2. General inspection 3.1. Performance control Your distributor, who has the required technical expertise, is responsible for any wheelchair repairs. As the user, you will be the first to notice any possible We recommend that you take the wheelchair to your operational defects with your wheelchair.

  • Page 13: Transportation

    Test no : S10757 (Self propulsion) check the wear of the solid tyre tread. n. Cleaning and disinfection Customer : Invacare UK Ltd, Date : 24.04.2009 Cleaning: Use only damp clothes and gentle detergent. Test no : S10880 (Transit version) Do not use abrasive or scouring liquid.

  • Page 14: Observations

    A. Front restraints with straps (picture 23A & detail A) the wheelchair or to structural and frame parts without the 1. Connect the front straps around the front part of the written consent of Invacare ® frame. (See location of the attachment labels).
  • Page 15 C. Posture belt 1.The posture posture belt is mounted on the back frame (picture 24). 2. Check that the posture belt on the wheelchair is correctly fastened. If posture belt on the wheelchair is missing we recommend that the user should transfer to the seat of the vehicle, if possible.The posture belt should be used in addition to but never as a substitute for an approved passenger restraint system (3-point belt).

  • Page 16: Summary Of Warranty Terms

    This is to certify that your manual wheelchair is warranted - Do not attempt to reach objects if you have to move by Invacare for a period of 2 years for the frame and cross- forward in the seat. bars, all others parts 2 years also but subject to the following...

  • Page 17: Description Of Your Wheelchair

    1.2. General description (see photo) B. DESCRIPTION OF YOUR WHEELCHAIR Your wheelchair is made of various parts and this manual 1. PRESENTATION describes only the main parts. We recommend that you become acquainted with the following terms in order to 1.1.

  • Page 18: Adjustments

    Adjustments The castor consists of the front wheel and the fork. The  castors provide front contact with the ground and determine 2.1. Seat the steering by the direction of the forks. 2.1.1 Seat upholstery The manual brake is a parking brake. The two manual ...

  • Page 19: Type Of Backrest

    - Reclining backrest, 0° to 30°, 43 cm backrest height (photo 4). Invacare provides a wide range of seat cushions adapted to your needs. Please contact your dealer. The intended use of reclining backrest is to get a relaxing, comfort position for the user. It is not indented to be used in...

  • Page 20: Backrest Upholstery

    This can cause the chair to tip backwards causing injury. To remove the footrest support, simply pull up after Therefore, Invacare® strongly recommend the use of anti- unlocking the assembly. Reverse the procedure to reassem- tippers (available as an option) when using your backposts to ble, while still in the unlocked position.

  • Page 21: Armrests

    2.1.5 Armrests The distance between the lowest part of the footrest and the ground must be at least 40 mm. - Removable : - Footrests (photo 7) : the footplate can be lifted during • Simple n°1 (photos 8 & 9) : to remove armrests, simply pull transfers footrests are height adjustable.

  • Page 22: Frame

    Note : the armrests are mounted in pairs on the wheelchair ; - Swing-away, removable n°2 (photos 10 & 11) whenever you remove them, remember that you have a right This range of armrests can be swung away to facilitate and a left side ! transfers and disassembling during transport.

  • Page 23: Rear Wheel

    Any wheels position of your wheelchair should only be per- Note : remember that in order to maintain the interchangea- formed at the direction of a competent person who has fully bility of the chair wheels equipped with quick-release axles, risk assessed the implication of any changes to the wheelchair the pressure in the two tyres should be the same.

  • Page 24: Axles

    The quick release axle is a precision part, take care of shocks 2.3.3 Axles and clean regularly to ensure the good working of the mecha- The axles connect the wheels and frame. nism. - Quick-release axles (photo 13) : depress the button (A) and 2.4.

  • Page 25: Brakes

    2.5. Brakes Please make sure this adjustment is always done as describe whatever the chair configuration is. 2.5.1 Manual brakes Solid tyre X = 6 mm, Pneumatic tyre X = 5 mm The manual brakes (photo 15) are designed to secure the wheelchair during long stops.

  • Page 26: Options

    2.6. Options 2.6.2 Propulsion options 2.6.1 Seating options - Transit version (photos 19 & 20) : the wheelchair is designed - Back brace (photo 17) : it provides tension to the backrest to be driven only by the attendant. To facilitate sideways upholstery and provides the attendant better ergonomics transfers and save space, the wheelchair is equipped with rear when pushing the wheelchair.
  • Page 27 Ensure you are sitting correctly, i.e. fully back in the seat, and - Safety optional equipment : the pelvis is as upright and symmetrical as possible - not Anti-tippers (photo 22) : prevent back tipping which ensures forward on one side or tilted back. Position the posture belt safety when using a reclining backrest, driving on slopes or so that the hip bones can be felt above the belt.As a guide, crossing obstacles.

  • Page 28: Specification And Tool's

    Note : Make sure that the anti-tipper wheel is ALWAYS loca- 3. Specifications and tool's ted out side the rear wheel volume. All these adjustments and changes of position must be perfor- 3.1. Standard wheelchair specifications med by a professional technician because these can affect the stability and the safety of the user ! Please consult your dealer.

  • Page 29: Tools For Adjustments And Regular Maintenance (Not Supplied)

    After sale and disposal recommendations (mm) rear wheel (mm) Height from • It is compulsary to use original Invacare spare parts which Backrest ® ground to angle you can buy through any Invacare dealer. ®...
  • Page 30 ������� ������� ������� ����������� ������� ����������� ����� ����� ������� ������������� 200/260 �������� ������ ������ ����� ����� ������� ���������� ���� ������� ����� ����������� ������ ������� ������� �� ������� ����� ����������� ������ ������� ���������� ������� �������� ��������������� ����� ������ Wheels ������� ��������� Armrests ��������...
  • Page 31 Manufacturer : Invacare France Operations SAS - Route de Saint Roch - 37230 Fondettes - France ® Invacare Australia Pty Ltd. ® 1 lenton Place, North Rockes NSW 2151 Australia ( (61) 2 8839 5333 Fax (61) 2 8839 5353 Invacare n.v.
  • Page 32 Manufacturer Invacare France Operations SAS ® Route de Saint Roch 37230 Fondettes France N°. 1531661-EN VC 09/2011 www.invacare.eu.com...
