SECTION 2—FRONT HANGERS

Replacing Heel Strap

NOTE: For this procedure, refer to FIGURE 2.2.
1. Remove the locking screw that secure the footrest tube to the footrest support.
2. Remove the lower footrest assembly.
3. Remove the mounting screw, strap pin
that secure the heel strap to the
footplate.
4. Slide heel strap over footrest tube.
NOTE: When securing the heel strap to
the footrest assembly, tighten the
mounting screw and strap pin until they
are secure.
5. Using the mounting screw, strap pin,
secure the heel strap to the footplate.
6. Using the locking screw, secure the
footrest tube to the footrest support.
Assembly description
Heel-loop peg screw
Installing Angle Adjustable Footplate
NOTE: For this procedure, refer to FIGURE 2.4.
NOTE: This procedure is for individual Angle Adjustable Footrests only.
1. Position the angle adjustable footplate on the footrest support tube at the desired
height.
2. Using the locking screw, loosely secure the angle adjustable footplate to the
footrest support tube.
NOTE: Refer to Adjusting Footrest Height paragraph on page 10.
3. Using the mounting screw, adjust to the desired angle (Tooth Plates) by rotating the
footplate and depth by sliding the footplate into the tooth plates support.
4. Using the mounting screw, secure the Angle Adjustable Footplate to the footrest
tube. Securely tighten.
Ac t i on 2 B a s ic

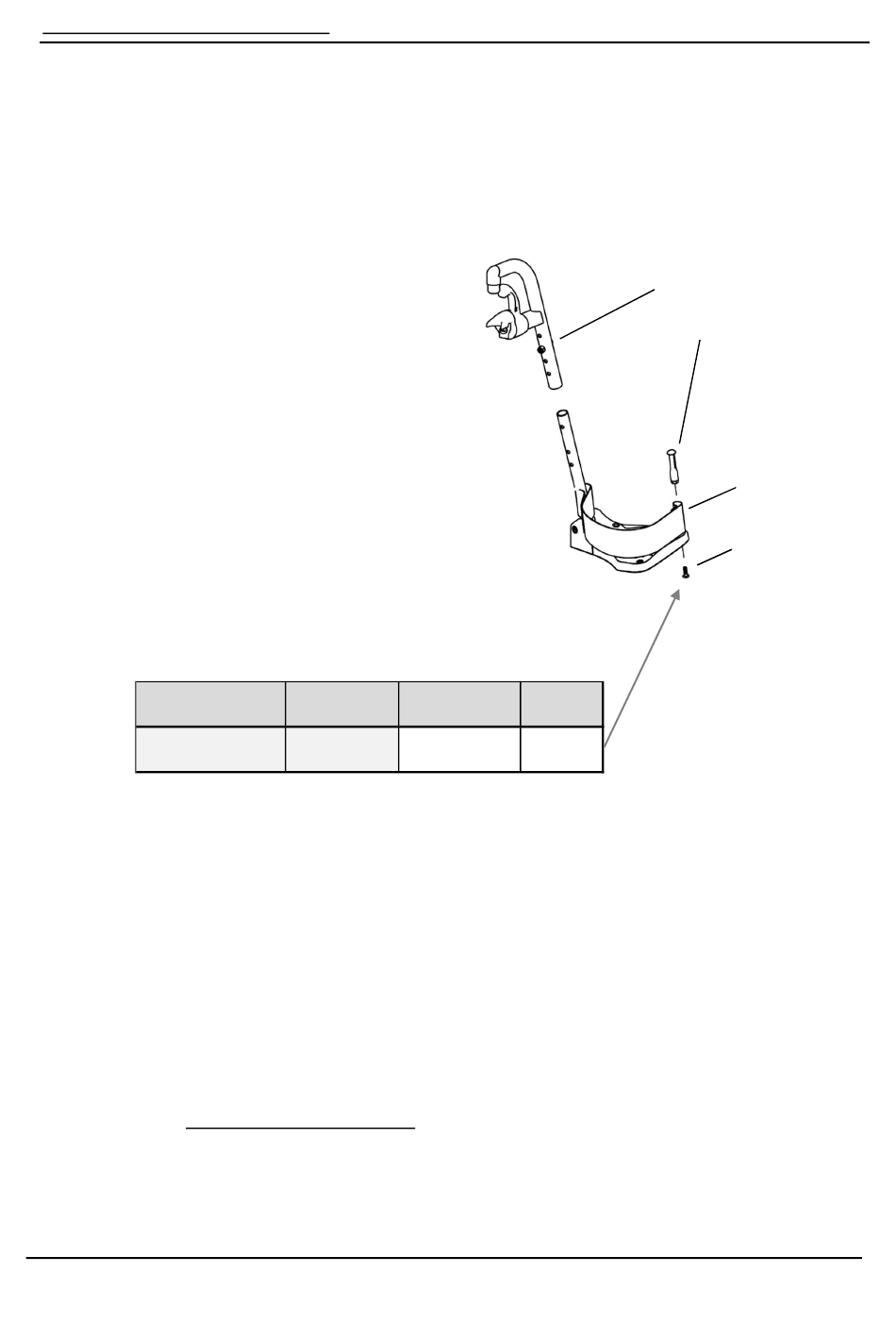

FIGURE 2.2Replacing Hell Strap
Screw Tool
CR 4,5x16 Phillips #2
1 1
Locking screw
Torque
2,5±0,5 Nm
Strap pin
Heel strap
Mounting screw
