SECTION 5—REAR WHEELS/FRONT CASTORS
Removing/Installing/ Replacing the Castor
Assembly
NOTE: If replacing a front castor note the mounting position of the existing front
wheel castor for installation of the new front castor.
NOTE: Both front castors MUST be the same size (8") and adjusted to the
same height. NOTE: For this procedure, refer to FIGURE 5.9.
Removing Front Wheel
3. Remove the mounting bolt and
locknut that secure the front wheel
to the fork.
4. Remove the wheel from the fork.
Installing Front Wheel
3. Using the mounting bolt and locknut,
secure the wheel to the desired wheel
mounting position. Torque to 6Nm.
4. Ensure fork stem is perpendicular to
the flat surface.
Ac t i on ² B a s i c
Front
Fork
Mounting
Bolt
8" Castor

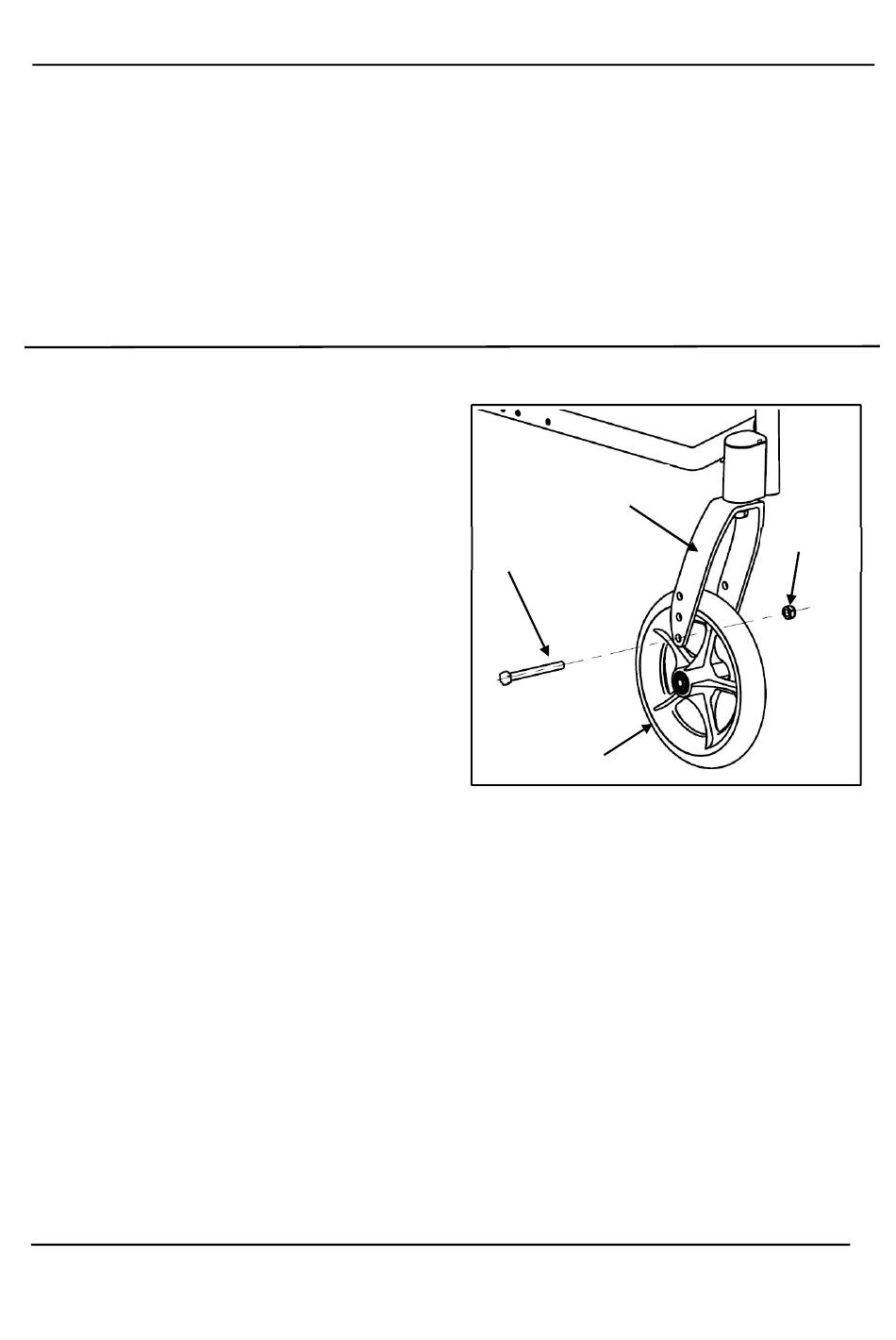

FIGURE 5.9 Removing/Installing/
Replacing the front wheel
