Installing/Removing the Back Brace

If a back brace is already installed, you don't have to re-install the back
cane inserts.
After ANY adjustments, repair or service and before use, make sure all
attaching hardware is tightened securely - otherwise injury or damage
may occur.
NOTE: For this procedure, refer to FIGURE 4.6.
NOTE: To remove the back brace, reverse this procedure
1. Align the back brace ends with the handles of the back canes.
2. Secure the back brace to the back canes with the mounting bolts.
Mounting Bolts
Handle
Back cane
W A R N I N G

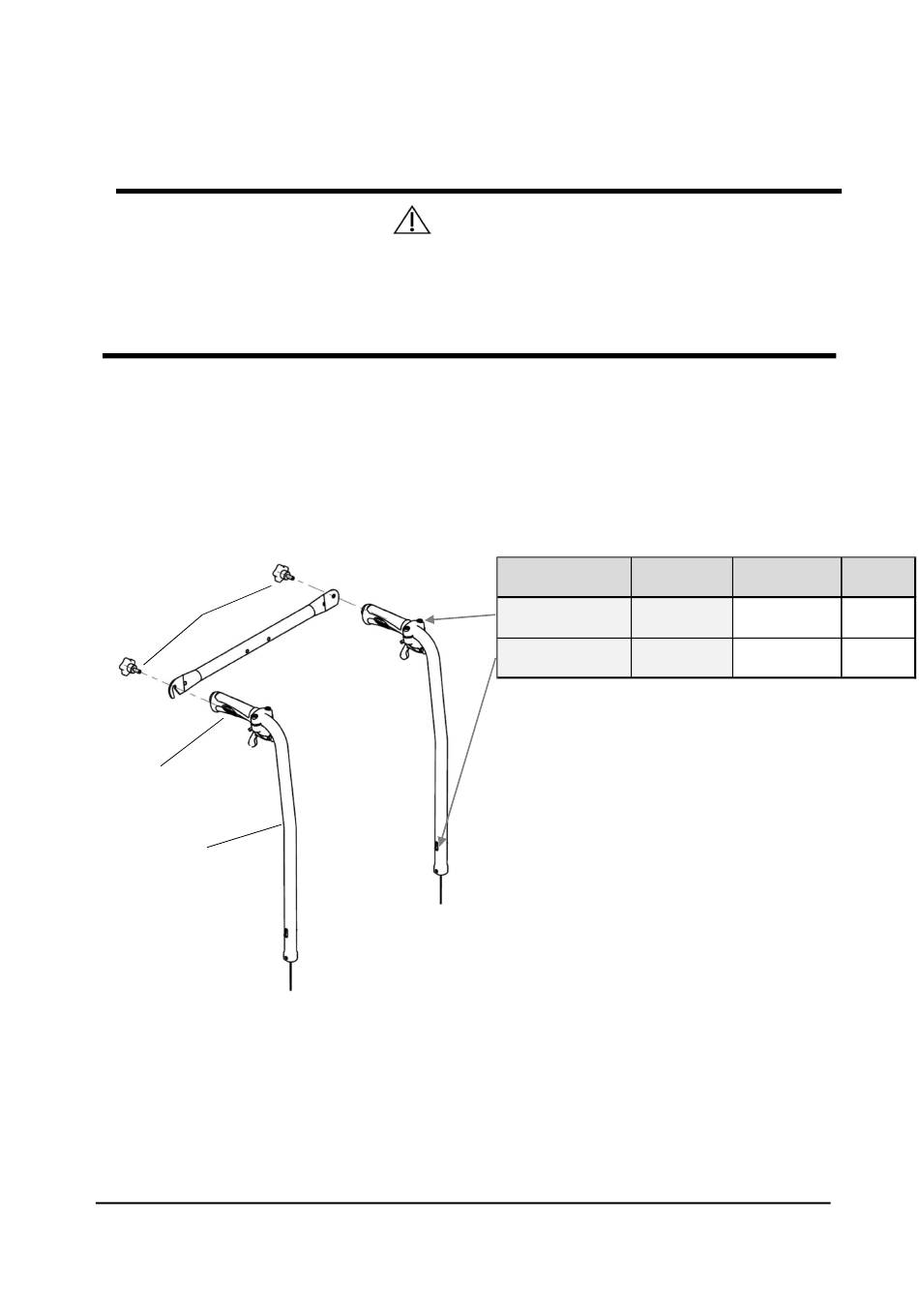

FIGURE 4.6 Installing/Removing the Back Brace
SECTION 4—SEAT/BACK
Assembly description
actuator recliner
Cable end
2 2
Screw Tool
Plastic screw Torx T20
Cable end Allen wrench #2,5
Torque
1,9 ±0,3 Nm
1,2 ±0,2 Nm
