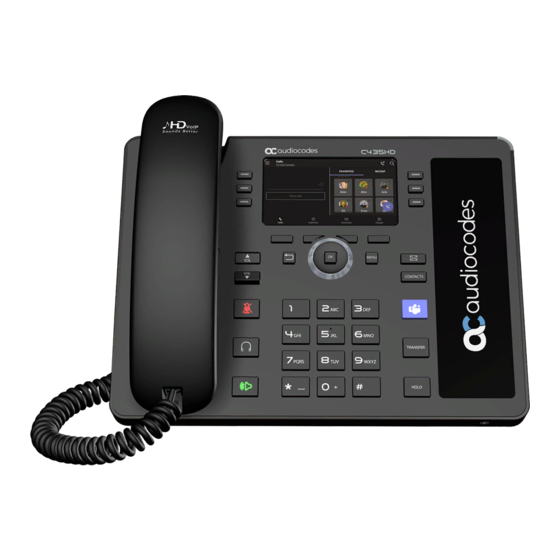

AudioCodes C435HD IP Phone for Microsoft® Teams™
1. Before Installing
Congratulations on purchasing your AudioCodes C435HD for Microsoft Teams IP Phone!
Before installing your phone, make sure the following items are included in the shipped box:
C435HD IP Phone
AC power adapter (optional)
Cat 5e Ethernet cable
Handset
Handset cord
Desktop stand
Wall mount

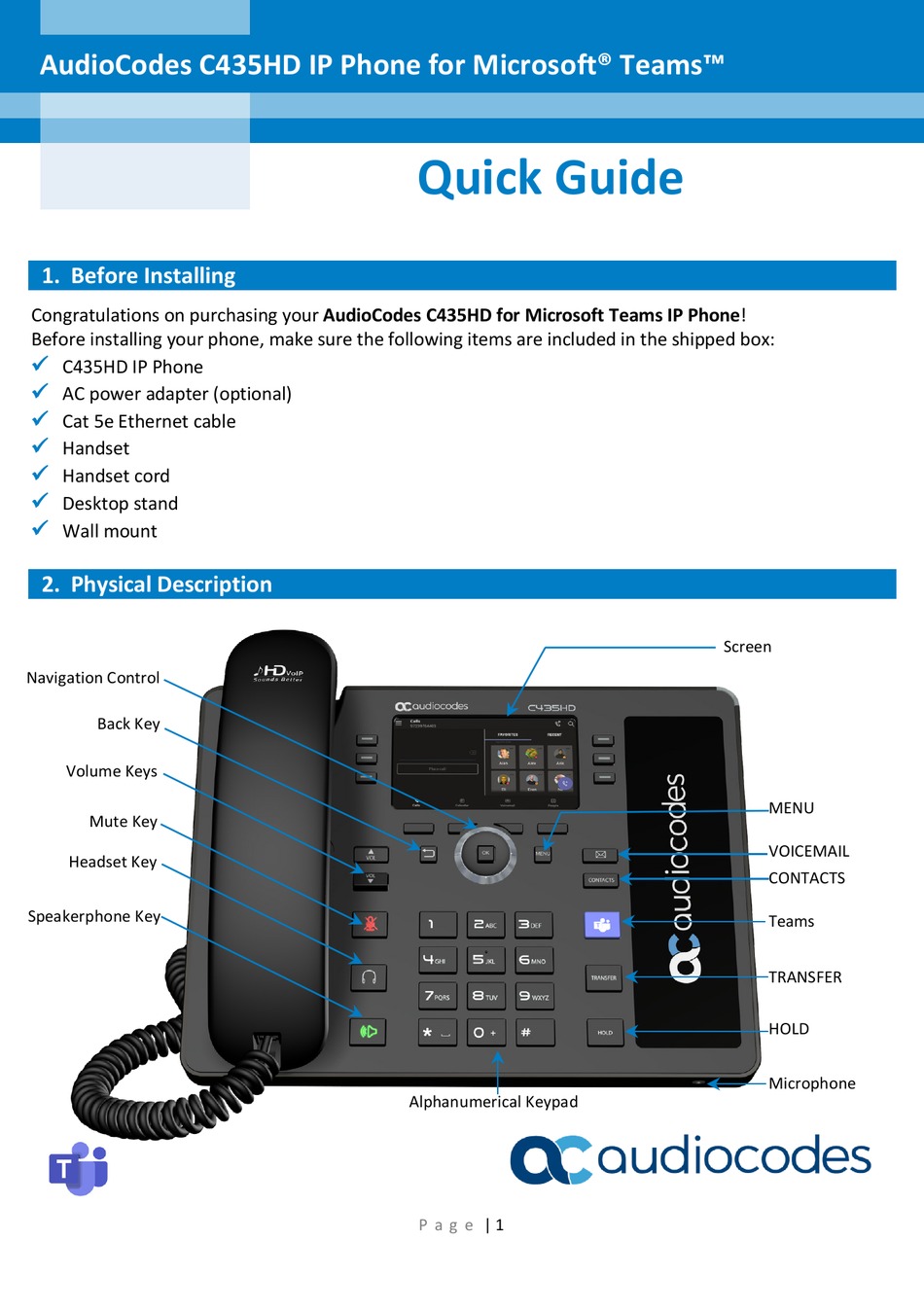

2. Physical Description
Navigation Control
Back Key
Volume Keys
Mute Key
Headset Key
Speakerphone Key
Quick Guide
Alphanumerical Keypad
P a g e
| 1
Screen
MENU
VOICEMAIL
CONTACTS
Teams
TRANSFER
HOLD
Microphone
Advertisement
Table of Contents
Related Manuals for AudioCodes C435HD
Summary of Contents for AudioCodes C435HD
- Page 1 AudioCodes C435HD IP Phone for Microsoft® Teams™ Quick Guide 1. Before Installing Congratulations on purchasing your AudioCodes C435HD for Microsoft Teams IP Phone! Before installing your phone, make sure the following items are included in the shipped box: C435HD IP Phone ...
- Page 2 3. Cabling the Phone Warning: Prior to connecting power, refer to the Compliancy and Regulatory Information document at https://www.audiocodes.com/library/technical-documents. To cable the phone: Connect the short, straight end of the phone cord to the handset, and the longer straight end of the cord, to the handset jack on the phone.
- Page 3 4. Mounting the Phone on a Desktop or Wall For the principles of assembling the stand, scan the QR code or refer to https://www.youtube.com/watch?v=oGe9STB9lFE. Desktop mounting: Slide stand's outer rails (A) onto phone's outer notches (A). Wall mounting: Slide stand's middle rails (B) onto phone's inner notches (B). ...
- Page 4 To mount the phone on a wall: Using the mounting plate's two screw holes as a template, mark the locations on the wall where you want to mount the phone. The horizontal distance between the screw holes is 5.39 inches (137 mm).
- Page 5 5. Signing in To sign in with your username and password: After connecting the phone to the network, it starts up and the following is displayed: Open your web browser and navigate to https://microsoft.com/devicelogin Enter the code provided by the phone and click Next. P a g e...
- Page 6 In the ‘Pick an account’ screen, double-click the account (or click + to use another). Enter your password (the same as the password for your pc) and then click Sign in. Use the phone’s navigation control button to navigate to and select your password (the same as the password for your pc).
- Page 7 To sign out: , navigate to and select Settings and then the Sign out option. Navigate to and select Navigate to and select OK; you’re signed out of the phone. 6. Changing your Presence Status To change your presence status: Navigate to and select and then navigate to and select the current presence status displayed (Available in the figure below).
- Page 8 Information contained in this document is believed to be accurate and reliable at the time of printing. However, due to ongoing product improvements and revisions, AudioCodes cannot guarantee accuracy of printed material after the Date Published nor can it accept responsibility for errors or omissions. Updates to this document can be downloaded from https://www.audiocodes.com/library/technical-documents.
