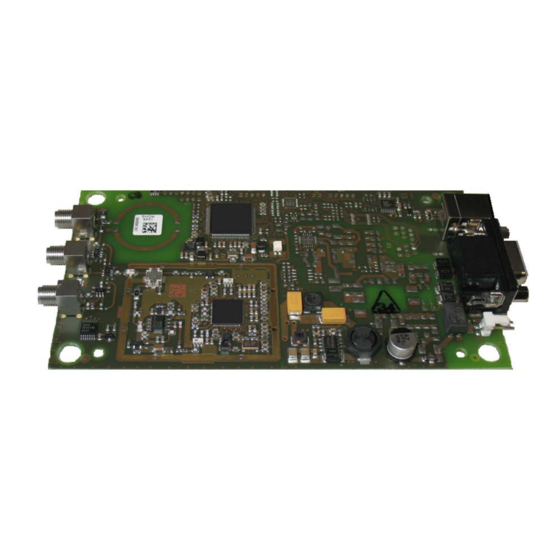

Feig Electronic OBID i-scan ID ISC.MRMU102-A Installation Manual
Uhf mid range reader module
Hide thumbs
Also See for OBID i-scan ID ISC.MRMU102-A:
- User manual (64 pages) ,
- Installation manual (36 pages) ,
- Installation manual (29 pages)
Related Manuals for Feig Electronic OBID i-scan ID ISC.MRMU102-A
Summary of Contents for Feig Electronic OBID i-scan ID ISC.MRMU102-A

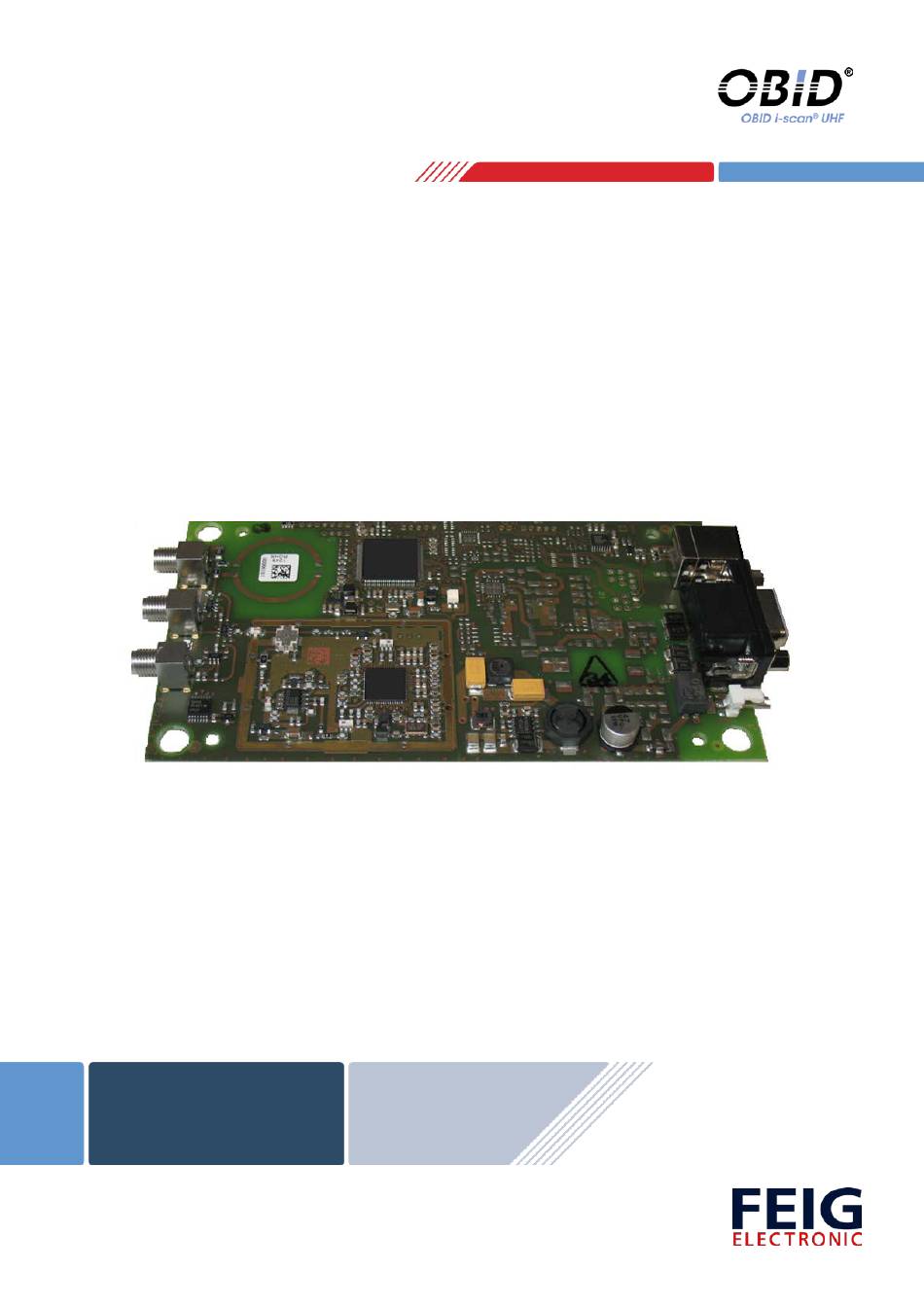

- Page 1 INSTALLATION ID ISC.MRMU102-A / ID ISC.MRMU102-POE UHF Mid Range Reader Module final – public (B) 2016-06-07 – M21112-2e-ID-B.docx...
- Page 2 FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed with components and testing methods for a level of reliability suitable for use in or in connection with surgical implants or as critical components in any life support systems whose failure to perform can reasonably be expected to cause significant injury to a human.
- Page 3 • The following figure formats are used: 0...9: for decimal figures 0x00...0xFF: for hexadecimal figures, b0...1 for binary figures. • The hexadecimal value in brackets "[ ]" marks a control byte (command). FEIG ELECTRONIC GmbH Page 3 of 24 M21112-2e-ID-B.docx...
-
Page 4: Table Of Contents
4.3.1. External Antenna ANT 1 - 3 ..................16 4.3.2. Internal Antenna ANT 4 ....................16 5. Control and Display Elements 5.1. LED ........................... 17 6. Technical Data 7. Radio Approvals 7.1. Europe (CE) ........................20 FEIG ELECTRONIC GmbH Page 4 of 24 M21112-2e-ID-B.docx... - Page 5 7.3.2. Label Information Reader Module ................22 7.3.3. Installation with FCC / IC Approval ................22 7.3.4. USA (FCC) and Canada (IC) approved antennas ............22 ANHANG ANNEX A - Accessories ......................23 FEIG ELECTRONIC GmbH Page 5 of 24 M21112-2e-ID-B.docx...
- Page 6 Although this device doesn't exceed the valid limits for electromagnetic fields you should keep a minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in an immediate proximity of the device respective the antenna for some time. FEIG ELECTRONIC GmbH Page 6 of 24 M21112-2e-ID-B.docx...
-
Page 7: Performance Features Of The Reader
3 x SMA connectors for external antennas , 50Ohm 4494.000.00 1 x integrated antenna Housed version with Ethernet- Interface, Power over Ethernet ID ISC.MRU102-POE-LED 1 x integrated antenna 3888.000.00 3 x optical and 1 x acoustic signaler FEIG ELECTRONIC GmbH Page 7 of 24 M21112-2e-ID-B.docx... -
Page 8: Assembly And Wiring
Before any installation the intended position of the reader should be tested for its suitabil- ity. 3.1. Viewing and Dimensions 3.1.1. Viewing and Dimensions ID ISC.MRMU102-A Figure 1: Dimensions ID ISC.MRMU102-A (all dimensions are in mm) FEIG ELECTRONIC GmbH Page 8 of 24 M21112-2e-ID-B.docx... -
Page 9: Viewing And Dimensions Id Isc.mrmu102-Poe
® OBID i-scan Installation ID ISC.MRMU102 3.1.2. Viewing and Dimensions ID ISC.MRMU102-POE Figure 2: Dimensions ID ISC.MRMU102-POE (all dimensions in mm) FEIG ELECTRONIC GmbH Page 9 of 24 M21112-2e-ID-B.docx... -
Page 10: Connections
Figure 3: Pin connection of the power supply - Connector X1 For connection of the power supply a special DC-Connector from the manufacturer Molex is re- quired. The necessary components of the DC-Connector are listed in Table 4. FEIG ELECTRONIC GmbH Page 10 of 24 M21112-2e-ID-B.docx... -
Page 11: Rs232 Interface On Connector X2
Table 5: Serial Data Cable Feig Part No. Description 1690.000.00 ID CAB.RS-A Interface parameter can be configured via software protocol (e.g. ISOStart). Further information can be found in the System Manual H10410-Xe-ID-B.pdf of the reader. FEIG ELECTRONIC GmbH Page 11 of 24 M21112-2e-ID-B.docx... -
Page 12: Usb Interface On Connector X3
The length of the USB-cable can be a max. of 5 meter. It isn’t allowed to use longer cables! The reader must be powered with a external power supply even if it is connected to a “high powered port”. FEIG ELECTRONIC GmbH Page 12 of 24 M21112-2e-ID-B.docx... -
Page 13: Connections Id Isc.mrmu102-Poe
To take full advantage of the Reader performance, you must use a sufficiently regulated and low- noise power supply. When using a switching power supply, be sure that its internal switching fre- quency is less than 300 kHz. (See also:ANNEX A - Accessories) FEIG ELECTRONIC GmbH Page 13 of 24 M21112-2e-ID-B.docx... -
Page 14: Power Supply Via Power Over Ethernet (Poe)
It must be ensured that the reader is supplied with 42,5 V DC (48 V DC – cable losses) at least. The maximum cable distance for Ethernet is 100m. It is recommended to use a shielded twisted pair STP CAT5 cable. FEIG ELECTRONIC GmbH Page 14 of 24 M21112-2e-ID-B.docx... -
Page 15: Ethernet-Interface On Connector X4 (10/100Tbase)
Table 10: Standard factory configuration of the Ethernet connection Network Address IP-Address 192.168.10.10 Subnet-Mask 255.255.0.0 Port 10001 DHCP NOTE: The reader provides a DHCP able TCP/IP interface. It is recommended to use a shielded twisted pair STP CAT5 cable. FEIG ELECTRONIC GmbH Page 15 of 24 M21112-2e-ID-B.docx... -
Page 16: Antenna Terminals
40 cm. In combination with a near field transponder the maximum read range is approx. 5 cm. Figure 6: Position of the internal antenna FEIG ELECTRONIC GmbH Page 16 of 24 M21112-2e-ID-B.docx... -
Page 17: Control And Display Elements
Turns on when the Reader is ready „LABEL“ Turns on when a transponder is detected. LED red Flashes if RF-Warning (red – green alternating with 8Hz) (Temperature alarm, short circuit on antenna output) FEIG ELECTRONIC GmbH Page 17 of 24 M21112-2e-ID-B.docx... -
Page 18: Technical Data
860 MHz to 960 MHz max. 500 mW ± 1,5 dB RF-Power 3 x SMA female(50 Ω) Antenna Connector 1 x integrated Antenna (ANT4) Interfaces • MRMU102-A RS232 USB (Full Speed) • MRMU102-POE Ethernet FEIG ELECTRONIC GmbH Page 18 of 24 M21112-2e-ID-B.docx... - Page 19 * Caution: Overheating of the device may result in performance losses. It is recommended to activate the RF of the reader only if there is a transponder in the detection range of an antenna. FEIG ELECTRONIC GmbH Page 19 of 24...
-
Page 20: Radio Approvals
Performance Classification according to ETSI EN 301 489: Class 2 7.2. Declaration of Conformity Hereby, FEIG ELECTRONIC GmbH declares that the radio equipment type ID ISC.MRMU102 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.feig.de. -
Page 21: Usa (Fcc) And Canada (Ic)
Warning: Changes or modification made to this equipment not expressly approved by FEIG ELECTRONIC GmbH may void the FCC authorization to operate this equipment. FEIG ELECTRONIC GmbH Page 21 of 24... -
Page 22: Label Information Reader Module
Following antennas are approved by FCC according FCC Part 15 and IC Canada according RS210 • ID ISC.ANT.U170/170 –FCC (4.0 dBic) • ID ISC.ANT.U270/270-FCC (9.0 dBic) • ID ISC.ANT.U600/270-FCC (10,5 dBic) • Integrated antenna (- 7dBic) FEIG ELECTRONIC GmbH Page 22 of 24 M21112-2e-ID-B.docx... -
Page 23: Anhang
Pole mounting set for antenna ID ISC.ANT.U270/270, diameter 3309.000.00 Mounting Set Antenna UHF up to 60 mm ID ISC.ANT.U170/170-MS Pole mounting set for antenna ID ISC.ANT.U170/170, diameter 3310.000.00 Mounting Set Antenna UHF up to 60 mm FEIG ELECTRONIC GmbH Page 23 of 24 M21112-2e-ID-B.docx... - Page 24 ® OBID i-scan Installation ID ISC.MRMU102 ID ISC.ANT.C2-A UHF 1654.002.00 Antenna cable, length: 2 m Antenna Cable 2m ID ISC.ANT.C6-A UHF 1654.003.00 Antenna cable, length: 6 m Antenna Cable 6m FEIG ELECTRONIC GmbH Page 24 of 24 M21112-2e-ID-B.docx...
