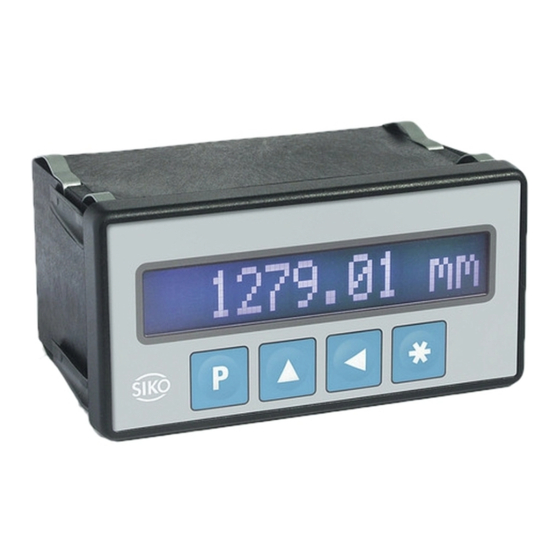

  • Page 1 User manual Electronic display MA10/4 Software SW02...

  • Page 2: Table Of Contents

    Example of Modulo display mode ................... 21 10.2 Example: Mitre-box saw (Display mode 0-90-0) ..............21 10.3 MA10/4 combined with an MSK magnetic sensor and the MR magnetic ring ......21 Trouble shooting ........................22 Parameter list ..........................22 12.1 Incremental version .........................

  • Page 3: General Information

    0 to 359. Furthermore, the MA10/4 SW02 may be used as an angle display for mitre-box saws. With the saw blade swinging, the measured value decreases from 90° into the 0° direction.

  • Page 4: Operating Modes

    Input mode: Functions required during normal application. Display description The MA10/4 has a backlighted 12-digit LC display. The display as well as the meaning of the individual symbols is explained in the tables below. The display differs depending on the...

  • Page 5: Programming Mode

    After entering the programming mode (see chapter 4) the parameters described below can be configured. Depending on the settings selected, only the menu items that are relevant for the application will be displayed. MA10/4-SW02 Date: 06.05.2014 Page 5 of 23 Art.No.

  • Page 6: Incremental Version

    A and B signals. 'kurz' index signal is exactly as wide as one increment '0' index signal with positive logic 'I' index signal with negative logic MA10/4-SW02 Date: 06.05.2014 Page 6 of 23 Art.No. 87185 Mod. status 422/13...
  • Page 7 'off' Actual value memory off: when switched on, the display must be calibrated (zeroed) (Display value is flashing). 'on' Actual value memory on: when switched on, the last measured value is displayed. MA10/4-SW02 Date: 06.05.2014 Page 7 of 23 Art.No. 87185 Mod. status 422/13...

  • Page 8: Ssi Version

    'modulo' angle measurement, e. g., 0-360° '0-90-0' angle measurement for mitre-box saws DEC: 0., 0.0, 0.00 Positions after the comma '0.' : 1° resolution '0.0' : 0.1° resolution '0.00' : 0.01° resolution MA10/4-SW02 Date: 06.05.2014 Page 8 of 23 Art.No. 87185 Mod. status 422/13...
  • Page 9 -999999 ... +900 (resolution 0.1°) -999999 ... +9000 (resolution 0.01°) OFF: -999999 ... Offset (displacement) +999999 Can be any value; used to influence the value displayed, e. g. tool correction value. MA10/4-SW02 Date: 06.05.2014 Page 9 of 23 Art.No. 87185 Mod. status 422/13...
  • Page 10 'BAUD:'. Possibility of input/ modification of the upper and lower limiting values in the input mode. 'off' Modification of limiting values disabled in input mode. 'on' Modification of limiting values enabled in input mode. MA10/4-SW02 Date: 06.05.2014 Page 10 of 23 Art.No. 87185...

  • Page 11: Input Mode

    The absolute measuring value is displayed again.  While in the incremental measurement mode the display can also be set to zero by pressing . This does not change the absolute measurement in the background. MA10/4-SW02 Date: 06.05.2014 Page 11 of 23 Art.No. 87185...

  • Page 12: Direct Alteration Of Reference/Offset Value Or Calibration/Offset Value

    Finishing direct input of reference/calibration/offset value  If no key has been pressed for approx. 30 s or if you press again key , MA10/4 will return to display mode. Direct input of limiting value...

  • Page 13: 0-90-0 Angle Display

    The display must always be referenced/calibrated:  before the first use of the measuring system.  if the actual value memory (STO:) was programmed to 'off'.  in case of a displacement during power failure. MA10/4-SW02 Date: 06.05.2014 Page 13 of 23 Art.No. 87185...

  • Page 14: Manual Referencing / Calibration

    The contact of the reference point transmitter must only be active for less than one revolution of the encoder (see Fig. MA10/4-SW02 Date: 06.05.2014 Page 14 of 23 Art.No. 87185 Mod. status 422/13...
  • Page 15 4, the clamping ring and the coupling of the incremental encoder are retightened. Drive Driving spindle ref. point transmitter Incremental encoder Incremental card of the MA10/4 Fig. 4: Referencing setup MA10/4-SW02 Date: 06.05.2014 Page 15 of 23 Art.No. 87185 Mod. status 422/13...

  • Page 16: Serial Interface

    Serial Interface (Only interface option!) Data can be exchanged with a PC via the serial interface of the MA10/4: Two different protocols are used depending on the MA10/4 version (standard protocol or SIKONETZ3). Standard protocol Menu item 'BAUD:' must be programmed on "2400", "4800", "9600" or "19200".
  • Page 17 Issue flag register xx: flag register 0 (HEX) yy: flag register 1 (HEX) ">" Actual value store (incremental only!) x=0: actual value store off x=1: actual value store on MA10/4-SW02 Date: 06.05.2014 Page 17 of 23 Art.No. 87185 Mod. status 422/13...

  • Page 18: Sikonetz3 Protocol Description

    The SIKONETZ3 protocol is a bus-capable protocol based on RS485 interface. Parameter: 19200 baud, 8 bits, no Parity, 1 Start bit, 1 Stop bit The protocol setup follows the Master-Slave-System; the MA10/4 only has the slave function. There are 2 telegram lengths:...
  • Page 19 Column Signification Hexadecimal value of the command Length of telegram from master to MA10/4 Length of telegram from MA10/4 to master Transmitted parameter is permanently stored in the sensor For this command programming mode has to be activated (command 0x32; 0x33)
  • Page 20 Send type of reference switch (only incremental!) 0x7f Program type of reference switch (only incremental!) Error messages The slave (MA10/4) recognizes transmission or input errors and then issues the following error messages: Function 82 Hex Check sum data transmission error...

  • Page 21: Application Examples

    Example: Mitre-box saw (Display mode 0-90-0) An MA10/4 as an angle display is tho be installed on a mitre-box saw. While the saw blade is swinging, the measured value shall decrease from 90° in the direction of 0° on both sides. An incremental encoder with 100 pulses per revolution is available, the resolution shall be 1°.

  • Page 22: Trouble Shooting

    RE/OF.EN: off, on RE.EN: off, on STO: off, on P-KEY: 3s, 5s, 10s, 20s, 30s BAUD: 2400, 4800, 9600, 19200, 4800 SIKON.3, SCHALT ADR: 1 ... 31 MA10/4-SW02 Date: 06.05.2014 Page 22 of 23 Art.No. 87185 Mod. status 422/13...

  • Page 23: Ssi Version

    2400, 4800, 9600, 19200, 4800 SIKON.3, SCHALT ADR: 1 ... 31 UPL: -999999 ... +999999 +00000.0 LOL: -999999 ... +999999 +00000.0 LIMIT.EN: off, on UNITS: --, ° DIS.ANGLE: -5 ... +4 MA10/4-SW02 Date: 06.05.2014 Page 23 of 23 Art.No. 87185 Mod. status 422/13...
