Anchor AL-TX Owner's Manual

HAVING TROUBLE W/ YOUR SOUND SYSTEM?
CONDITION POSSIBLE CAUSE
No Sound • power supply turned off on the transmitter and/or receiver
• transmitter and receiver are set to different frequencies
• transmitter output is not connected to mixer or amplifier input
• receiver is too far from transmitter
• metal object near transmitter or obstructions between transmitter & receiver
Sound Interference • adjust the antenna location
• when using 2 or more transmitters use different frequency setting for each
• interference from other wireless microphone, TV, radio, etc.
Distortion • transmitter volume level too high or to low
• interference from other wireless microphone, TV, radio, etc.
Anchor Audio Customer Service
888-444-6077

SYSTEM TECHNICAL SPECIFICATIONS

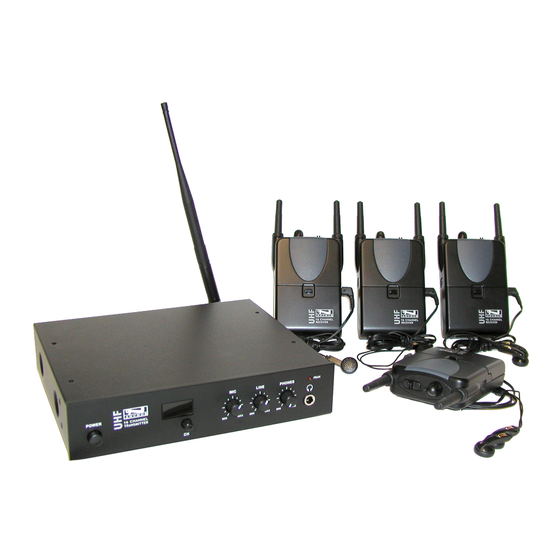

AL-TX – Base Station Transmitter
System Range Up to 200' line of sight
Frequency Range UHF 682– 698MHz or 863 – 865MHz
RF Power Output 682 – 998MHz @ 100 mW
863 – 865MHz @ 10 mW
Frequency Stability ± 0.005%
Maximum Deviation ± 48 KHz w/ limiting compressor
Spurious Emission > 60 dB below carrier frequency
T.H.D. < 1% @ 1KHz
Power Supply DC 12 ~ 18 V
Tone Key 32.768 KHz
Current Consumption 85 mA ± 10 mA (10 mW)
Dimensions (WHD) 8.3 x 1.7 x 7.1" / 211 x 44 x 180 mm
WB-6000 – BELT PACK TRANSMITTER
RF Power Output 10mW
Oscillator PLL synthesized
Maximum Deviation +/- 48 KHz
Spurious Emission > 60 dB below carrier frequency
Tone Key 32.768 KHz
Power Supply DC 3V (2 x 1.5 V AA Batteries)
Current Consumption 65 mA +/- 5 mA
Dimensions (WHD) 3.86 x 2.60 x 1.02" / 98 x 66 x 26mm
(Specifications subject to change without notice.)
Anchor Audio, Inc.
Portable Sound Systems • Torrance, California
AL-WB – Belt Pack Receiver
System Range Up to 200' line of sight
Frequency Range UHF 682– 698MHz or 863 – 865MHz
Oscillator PLL synthesized
Receiving Mode Single channel diversity
Frequency Stability ± 0.005%
Receiving Sensitivity @ 5dBuV over 80 dB S/N ratio
Image & Spurious Rej. 80 dB min
Selectivity > 50 dB
Modulation Mode FM
IF Frequency 1st 56 MHz / 2nd 10.7 MHz
Dynamic Range > 96 dB
S/N Ratio > 94 dB @ 15KHz deviation &
60 dBuV antenna input
AF Response:
Headphone 100 Hz – 10 KHz (± 3 dB)
Line 40 Hz – 15 KHz (± 3 dB)
T.H.D. < 1% @ 1KHz
Power Supply DC 3V (2 x 1.5 V AA batteries)
Audio Output:
Headphone Stereo 20 mW
Line Stereo Level -10 dB
Current Consumption 130 mA ± 10 mA
Dimensions (WHD) 3 x 4.2 x 1.1" / 76 x 106 x 29 mm
Visit Our Website – www.anchoraudio.com – For The Latest Product Information
Anchor Assistive
Listening Systems
16 Channel UHF Monitor
OWNER'S MANUAL
Getting Started ................................................................................................................................................. 2
Belt Pack Receiver Setup .................................................................................................................................. 3
Belt Pack Transmitter Setup .......................................................................................................................... 4
Base Station Transmitter Setup .................................................................................................................... 5
Assistive Listening System Operation .......................................................................................................... 6
QUICK SETUP INSTRUCTIONS ................................................................................................................................ 6
ASSISTIVE LISTENING PACKAGES & ACCESSORIES ............................................................................................... 7

HAVING TROUBLE W/ YOUR SYSTEM? ................................................................................................................... 8

SYSTEM TECHNICAL SPECIFICATIONS .................................................................................................................... 8
100-0158-000/A - 5/07
CONTENTS
