AN-130+ Speaker Monitor Owners Manual
few minutes to review this manual to ensure the maximum enjoyment of your Anchor
system. Or, you can view a demonstration video complete with a trouble shooting
section at www.anchoraudio.com.
Feel free to call our friendly customer support staff at 1-800-ANCHOR1
with any questions. We love to hear from our customers.
Janet Jacobs, President
on behalf of all Anchor employees
CONTENTS
GETTING STARTED .................................................................................................................. 1
BASIC SYSTEM OPERATION ..................................................................................................... 2
WIRELESS REMOTE CONTROL ................................................................................................. 3
OPERATING THE BUILT-IN UHF WIRELESS RECEIVER ................................................................. 4
OPERATING WIRELESS RECEIVER/MICROPHONE ....................................................................... 5
IMPORTANT SAFETY INSTRUCTIONS ........................................................................................ 6
HAVING TROUBLE WITH YOU SOUND SYSTEM? / TECHNICAL SPECS ......................................... 7
A Message from the President

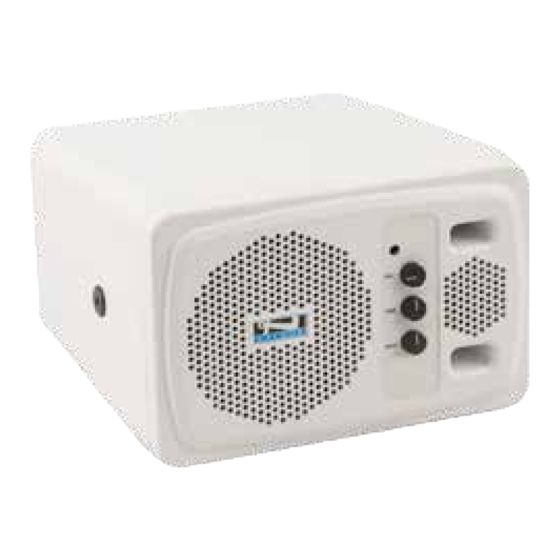

Congratulations on purchasing an Anchor Audio
Speaker Monitor, the choice of thousands of satisfied
customers including the White House, prestigious
universities, school districts nationwide, police and fire
departments, and all branches of the U.S. Military. Our
products are made of the finest materials and built with
pride in the U.S.
We've incorporated the latest technology into your
sound system yet kept it simple to use. Just take a
MADE IN USA
MADE IN USA
SIX YEAR WARRANTY
SIX YEAR WARRANTY

GETTING STARTED

Please check your new unit carefully for any
damage which may have occurred during shipment.
Each Anchor product is carefully inspected at the
factory and packed in specially designed boxes for
safe transport.
Notify the freight carrier immediately of any damage
to the shipping box or product. Repack the unit
in the original box and wait for inspection by the
carrier's claim agent. Notify your dealer of the
pending freight claim.
NOTE: All damage claims must be made with freight carrier!
RETURNING SYSTEMS FOR SERVICE
OR REPAIR
For service or repair, please contact the dealer
you purchased your system from or visit
www.AnchorAudio.com to fill out an
RA (Return Authorization) form. If your system is
still under warranty, you will receive an RA Number
with instructions to follow. All shipments to Anchor
Audio must include an RA number and must be
shipped prepaid. C.O.D. shipments and shipments
without an RA number will be refused and returned
at your expense.
IMPORTANT: Save the shipping box & packing materials,
they were specially designed to ship your unit!
The AN-130+ Speaker Monitor come with a six year warranty,
the remote comes with a two year warranty, and wireless comes
with a two year warranty.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN-130+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anchor AN-130+

Summary of Contents for Anchor AN-130+

  • Page 1: Table Of Contents

    Just take a in the original box and wait for inspection by the few minutes to review this manual to ensure the maximum enjoyment of your Anchor carrier’s claim agent. Notify your dealer of the system.

  • Page 2: Basic System Operation

    AN-130+ Speaker Monitor Owners Manual MADE IN USA BASIC SYSTEM OPERATION SIX YEAR WARRANTY The AN-130+ monitor is used to amplify the signal from a microphone, electronic musical instrument or BACK PANEL OF AN-130U1+ line-level sources (MP3, cassette, CD, VCR, etc). You’ll need a connection cable and an AC outlet.

  • Page 3: Wireless Remote Control

    AN-130+ Speaker Monitor Owners Manual MADE IN USA SIX YEAR WARRANTY WIRELESS REMOTE CONTROL REMOTE OPERATION (AN-130RC+ ONLY) Point the red Mute button towards the front of the AN-130RC+, aiming the remote at VOLUME MUTE the red window located near the Volume and DOWN Tone controls.

  • Page 4: Operating The Built-In Uhf Wireless Receiver

    DIVERSITY WIRELESS BY ANCHOR AUDIO Anchor Audio UHF wireless is a 16 channel, diversity wireless system that receives signals with two independent antennae. With diversity wireless the receiver processes the stronger signal, effectively minimizing dropouts and interference from other transmitting sources. The antennae are mounted internally so there are no obstructions or risk of damage.

  • Page 5: Operating Wireless Receiver/Microphone

    AN-130+ Speaker Monitor Owners Manual MADE IN USA OPERATING THE WIRELESS MICROPHONE/TRANSMITTER SIX YEAR WARRANTY CHANNEL SELECTION - HANDHELD TRANSMITTER CHANNEL SELECTION - BODY-PACK TRANSMITTER 1. Unscrew battery cover on bottom of microphone 1. The channel selection dial is located on the side of the transmitter 2.

  • Page 6: Important Safety Instructions

    AN-130+ Speaker Monitor Owners Manual MADE IN USA SIX YEAR WARRANTY Important Safety Instructions 15) Outdoor Antenna Grounding – If an outside antenna or cable system is connected to 1) Read Instructions – All the safety and operation instructions should be read before the the product, be sure the antenna or cable system is grounded so as to provide some product is operated.

  • Page 7: Having Trouble With You Sound System? / Technical Specs

    • make sure all cables are completely plugged in • increase volume control • press mute button on remote (AN-130+RC only) • turn power switch to off then back to on (AN-130+RC only) Distorted Sound • check input cable connection •...
