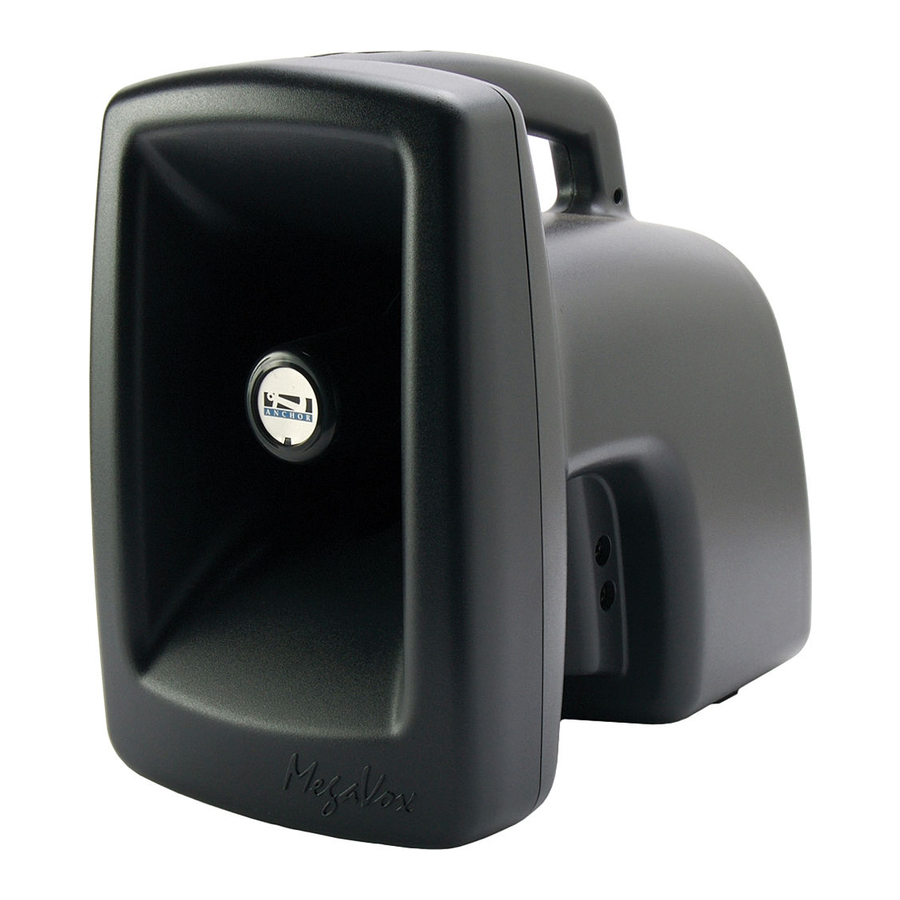

Anchor megavox pro Owner's Manual

HAVING TROUBLE W/ YOUR SOUND SYSTEM?
CONDITION POSSIBLE CAUSE
No Sound (power LED = OFF) • power switch is in OFF position
• batteries are fully discharged - LED may flash briefly
Charge Indicator Not On • confirm proper charger - replace if necessary
No Sound (power LED = ON) • no output from source
• input cable unplugged or
• input volume control is low or off
Shortened Battery Life • short in external speaker cable or speaker
• total external speaker impedance < 8 ohm
• batteries are not fully charged or need to be replaced
Distorted Sound • poor connection on input cable
• input signal too strong
Excessive Hum or Noise • input cable not shielded
HAVING TROUBLE W/ YOUR WIRELESS SYSTEM? (WIRELESS MODELS ONLY)
CONDITION POSSIBLE CAUSE
No Sound (RX ON Indicator = ON) • wireless volume control is to low or off
• no mic plugged into belt-pack transmitter
No Sound (RX ON Indicator = OFF) • sound system not turned on
• transmitter power switch turned off
• low battery or no battery in transmitter
• transmitter and receiver are not on the same channel
NEED MORE HELP? View demonstration videos on proper system setup and
operation at our website - http://www.anchoraudio.com/mgx.php
ANCHOR AUDIO CUSTOMER SERVICE
888-444-6077
MEGAVOX PRO TECHNICAL SPECIFICATIONS
Rated Power Output 22 watts
Max SPL @ Rated Power 126 dB @ 1 meter
Frequency Response 400 Hz - 10 kHz
Battery 12 volt rechargeable, 5.0 AH
Operation Time 6 -10 hours (dependent upon use)
Charger (RC-6000) 18V DC/universal input
(100Vac - 240Vac, 50 - 63Hz)
Dimensions (HWD) 13 x 9 x 14" / 33 x 23 x 36 cm
Weight 15 pounds / 6.8 Kg
Anchor Audio, Inc.
Portable Sound Systems • Torrance, California
Inputs
Line Hi-Z, unbalanced, 1/4" phone
Mic 1 Lo-Z, unbalanced, 1/4" phone
(used for wireless on MEGA-6000U1)
Mic 2 Lo-Z, unbalanced, 1/4" phone
Outputs
Line Lo-Z, 1/4" phone (post fader)
Speaker 8 ohm, unswitched, 1/4" phone
(Specifications subject to change without notice)
MEGAVOX PRO
PORTABLE PUBLIC ADDRESS SOUND SYSTEM
OWNER'S MANUAL
GETTING STARTED ................................................................................................................................................. 2
SETTING UP / CONNECTING YOUR MEGAVOX PRO SOUND SYSTEM ................................................................. 2/3
FEEDBACK / SPEAKER STAND SETUP .................................................................................................................... 3
BASIC SYSTEM OPERATION / CARING FOR YOUR BUILT-IN BATTERIES ................................................................ 4
CARING FOR & CHARGING YOUR BUILT-IN BATTERIES ........................................................................................ 5
OPERATING THE BUILT-IN UHF WIRELESS RECEIVER ........................................................................................... 6
MEGAVOX PRO ACCESSORIES ................................................................................................................................. 6
OPERATING THE WIRELESS MICROPHONE / TRANSMITTER ................................................................................. 7
HAVING TROUBLE W/ YOUR SOUND SYSTEM? ...................................................................................................... 8
MEGAVOX PRO TECHNICAL SPECIFICATIONS ........................................................................................................ 8
100-0058-000/F - 11/06
CONTENTS
