Having trouble with the sound system?
Condition
Possible Solution
No sound (power LED not lit):
• turn POWER switch on
• plug in power cord
No sound (power LED lights):
• check for output from source
• make sure all cables are completely plugged in
• increase volume control
• press mute button on remote (AN-130RC only)
• turn power switch to off then back to on
(AN-130RC only)
Distorted sound:
• check input cable connection
• lower input signal level
Excessive hum or noise:
• use shielded input cable
Having trouble with the wireless system?
Condition
Possible Solution
No sound:
• confirm transmitter power switch is set to on
• turn up volume control
• plug microphone into body-pack transmitter
• turn sound system on
• replace mic/transmitter battery
• make sure collar, headband or lapel mic cable is
fully plugged into transmitter
• turn off mute by pressing, volume up,
volume down or mute (AN-130RC only)
Frequent transmitter dropouts:
• replace mic/transmitter battery
• move mic/transmitter closer to AN-130
• change transmitter to different channel
ANCHOR Audio, Inc. (310) 784-2300
100-0126-000 / Rev. A - 08/03

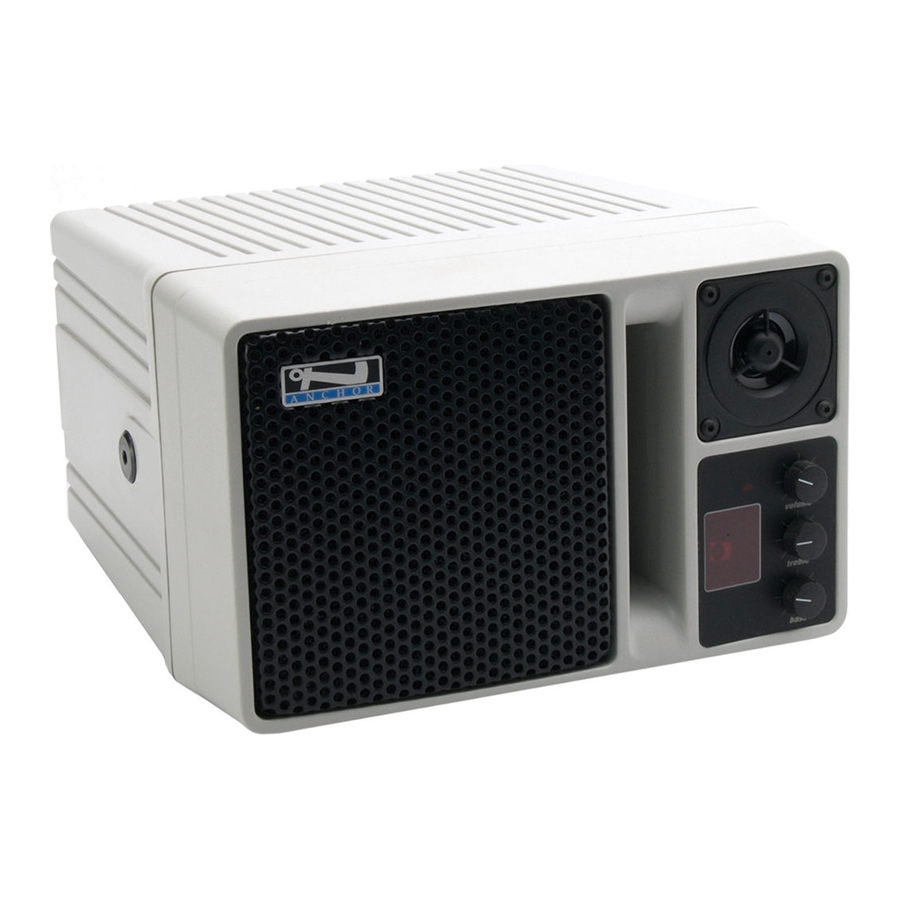

TROUBLESHOOTING GUIDE

AN-130
AN-130DC
AN-130RC
AN-130U1
Owner's Manual
e
lu m
v o
b le
tr e
s s
b a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN-130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anchor AN-130

Summary of Contents for Anchor AN-130

  • Page 1: Troubleshooting Guide

    • turn off mute by pressing, volume up, volume down or mute (AN-130RC only) AN-130DC Frequent transmitter dropouts: • replace mic/transmitter battery • move mic/transmitter closer to AN-130 • change transmitter to different channel AN-130RC AN-130U1 Owner’s Manual ANCHOR Audio, Inc. (310) 784-2300...

  • Page 2: Important Safeguards

    (service) dans le livret d'instruction accompagnant l'appareil. DATE OF MANUFACTURE The date of manufacture of this Anchor Audio product can be determined by the eight digit serial number code. The fourth digit denotes the year, the third digit (letter) denotes the month (A=Jan, B=Feb, etc.) Example: "AWDO1432"...

  • Page 3: Table Of Contents

    NOTES Thank you for choosing an Anchor Audio portable sound system. Our products incorporate state-of- the-art design and the finest quality of materials and workmanship. We’re proud of our products and appreciate the confidence which you have shown by selecting an Anchor system.

  • Page 4: Quick Use Guide

    QUICK USE GUIDE ACCESSORIES REMOTE-130 Wireless Remote Control The AN-130 monitor is used to amplify the signal from a microphone, electronic musical instrument or line-level sources (cassette, CD, Controls volume up, down and mute for the AN-130RC. VCR, etc). You’ll need a connection cable and an AC outlet.

  • Page 5: Getting Started

    SB-1 Swivel Stand Mounting Bracket designed to Warranty Registration The SB-1 bracket can be used to mount the AN-130 to a wall, ship your unit SB-1 ceiling or on a speaker stand (stand adapter included). safely.

  • Page 6: General Operation

    WIRELESS REMOTE CONTROL Operating The Sound System Remote Operation (AN-130RC only) 1. Place the AN-130 at desired location. With the red, mute button facing towards the AN-130RC, aim the NOTE: remote at the red window located near the volume and tone controls.
  • Page 7 WIRELESS OPERATION GENERAL OPERATION Replacing Transmitter Battery Line Inputs (summing) CAUTION: Handheld Transmitter: The line-level RCA input jacks may be used with audio sources such Harmful as computers, VCR’s, and cassette tape or compact disc players. 1. Unscrew battery compartment cover on lower end of mic. feedback may The inputs may be used for two separate sources, or they may be occur when...

  • Page 8: Wireless Operation

    WIRELESS OPERATION WIRELESS OPERATION Diversity Wireless by Anchor Audio Receiver Channel Selection Anchor Audio UHF wireless is a 16 channel, diversity wireless Before you use your UHF wireless system, NOTE: system that utilizes two independent antennae to receive signal. The...
