Anchor AN-MINI Owner's Manual

HAVING TROUBLE W/ YOUR SOUND SYSTEM?
CONDITION POSSIBLE CAUSE
No Sound (LED off) • turn POWER switch ON
• charge batteries
No Sound (LED on)
• turn microphone switch ON
• make sure all cables are completely plugged in
No Sound When Using CD Input • check for output from source
• make sure all cables are completely plugged in
Distorted Sound • lower system volume control
• replace or recharge batteries
Shortened Battery Life • replace worn NiMH batteries
• 'Cycle' NiMH batteries (see page 3)
Unit Turns Off & Back On During Use • batteries are low and need to be replaced
HAVING TROUBLE W/ YOUR WIRELESS SYSTEM? (Wireless Model Only)
No Sound (RX Indicator: ON)
• microphone volume control is to low or off
• no mic plugged into belt-pack transmitter
No Sound (RX Indicator: OFF) • sound system not turned on
• transmitter power switch turned off
• low battery or no battery in transmitter
• transmitter and receiver are not on the same channel
ANCHOR AUDIO CUSTOMER SERVICE
888/444-6077
www.anchoraudio.com
AN-MINI TECHNICAL SPECIFICATIONS
Rated Power Output 30 watts
Max SPL @ Rated Power 109 dB @ 1 meter
Frequency Response 100 Hz – 15 kHz +/- 3dB
Speaker Type 4.5 inch neodymium woofer
Battery Type 10 'AA' alkaline
Dimensions (HWD) 5.5 x 5.5 x 6.5" / 13.9 x 13.9 x 16.5 cm
Weight 2.5 lbs / 1.13 Kg
Line Out line level, 3.5 mm
Inputs
Line line level, 3.5 mm
Powered Mic Lo-Z phantom power, 3.5 mm jack
Mic Lo-Z, 1/4" phone
Anchor Audio, Inc.
Portable Sound Systems • Torrance, California
310/784-2300
RC-30 – Recharge Kit (optional)
Battery Type 10 'AA' size, NiMH 2.5 AH
Charger AC-30
AC-30 Input 120 VAC, 60Hz, 24 watts max
AC-30/220 Input 220 VAC, 50Hz, 10 watts max
Shipping Weight 2.1 lbs / 1.0 Kg
(Specifications subject to change without notice)

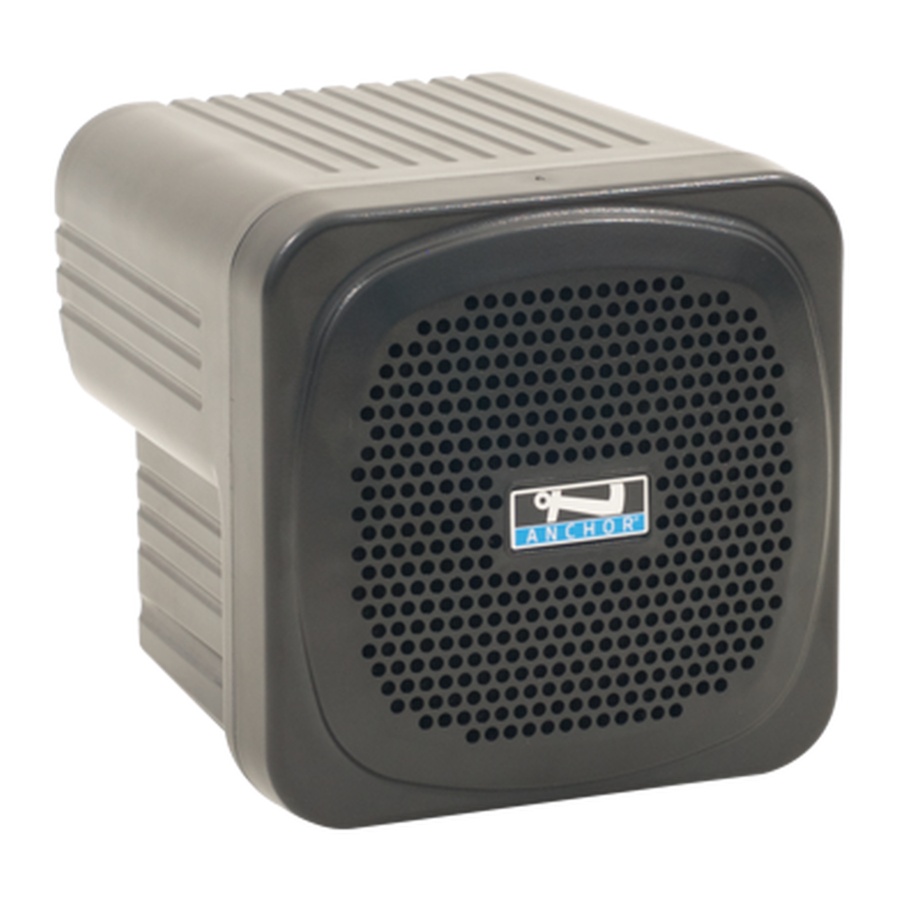

AN-Mini Speaker Monitor
PORTABLE SOUND SYSTEM
OWNER'S MANUAL
GETTING STARTED / SYSTEM INVENTORY .......................................................................................................... 2
USING AN OUTBOARD CD/TAPE PLAYER ........................................................................................................... 3
RECHARGEABLE BATTERY KIT ............................................................................................................................. 3
BASIC SYSTEM OPERATION ................................................................................................................................. 4
AN-MINI ACCESSORIES ........................................................................................................................................ 4
BATTERY INSTALLATION ..................................................................................................................................... 5
BUILT-IN UHF WIRELESS RECEIVER .................................................................................................................... 6
OPERATING THE WIRELESS MICROPHONE / TRANSMITTER .............................................................................. 7
HAVING TROUBLE W/ YOUR SOUND SYSTEM? ................................................................................................... 8
AN-MINI TECHNICAL SPECIFICATIONS ................................................................................................................ 8
100-0174-000/A - 3/08
For Setup & Operation Videos Go To:
www.anchoraudio.com
CONTENTS
