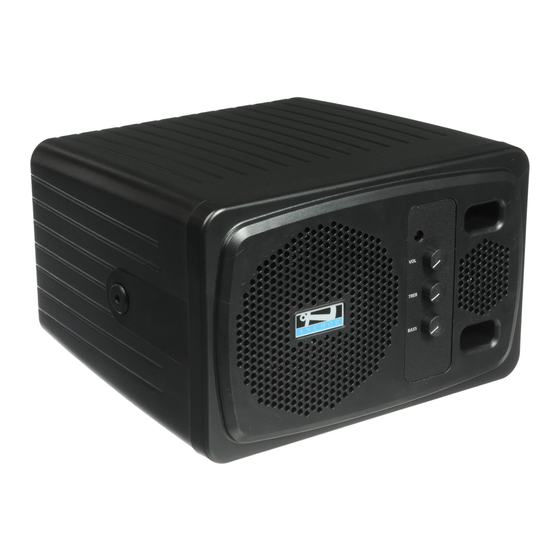

Anchor AN-1000X+ Quick Start Manual

MOUNTING THE SPEAKER MONITORS
1. Attach mounting bracket securely to the wall/ceiling with pre-
RECOMMENDED BRACKET
2. Remove Allen head cap screws from the bracket mounts on
SB-3BK+, SB-360BK+,
AN-1000X+ RM1BK+, or RM12BK+
3. Align the bracket arm with mounting hole on unit.
AN-30 SB-30
4. Attach both sides of the speaker securely to mounting bracket.
HAVING TROUBLE WITH YOUR SOUND SYSTEM?
CONDITION POSSIBLE SOLUTIONS
• Turn POWER knob clockwise to turn ON
No Sound (Power LED: OFF) • Check battery level, charge battery, or plug in AC cord
• Check your source audio and turn up volume of source audio
• Make sure all cables are completely plugged in
No Sound (Power LED: ON) • Turn up volume control
• Check battery level of microphone
Wireless Mic will not Connect to • Un-pair all microphones from the system then re-pair the
System microphones
• Check the Mute button on the microphone or belt pack
Connected Wireless Mic but No Sound • Raise volume on the microphone and system
(Solid Green LED) • Check battery level of microphone and system
• Check battery level of microphone and system
• Re-position system away from any possible interference
sources
• Minimize obstructions between the system and wireless
microphone
Poor Wireless Range / • If wireless range continues to be poor, call Anchor Audio Tech
Poor Wireless Audio Quality Support
• Check battery level, charge battery, or plug in AC cord
• Lower system volume
• Lower source audio volume
• Wireless belt pack - ensure Mic and/or Line Level setting is
Distorted Sound correct
• Lower the volume on the microphone (handheld or belt pack)
• Do not stand within at least 10 feet in front of the speaker
Excessive Feedback (Squelching) with the mic(s)
• Use shielded cables
Excessive Hum or Noise • Use a balanced microphone
NEED MORE HELP?
anchoraudio.com | 800.262.4671 | techsupport@anchoraudio.com
drilled holes.
the unit.
QUICK START MANUAL
AN-1000X+ | AN-30 | AN-MINI
For a complete Owner's Manual, visit anchoraudio.com
Please check your new unit carefully for any damage which
may have occurred during shipment.
*Please keep the product box(es) that your Anchor Audio product(s) was
shipped in, so it is available in the event the product(s) need to be shipped
back to Anchor Audio for any reason.
