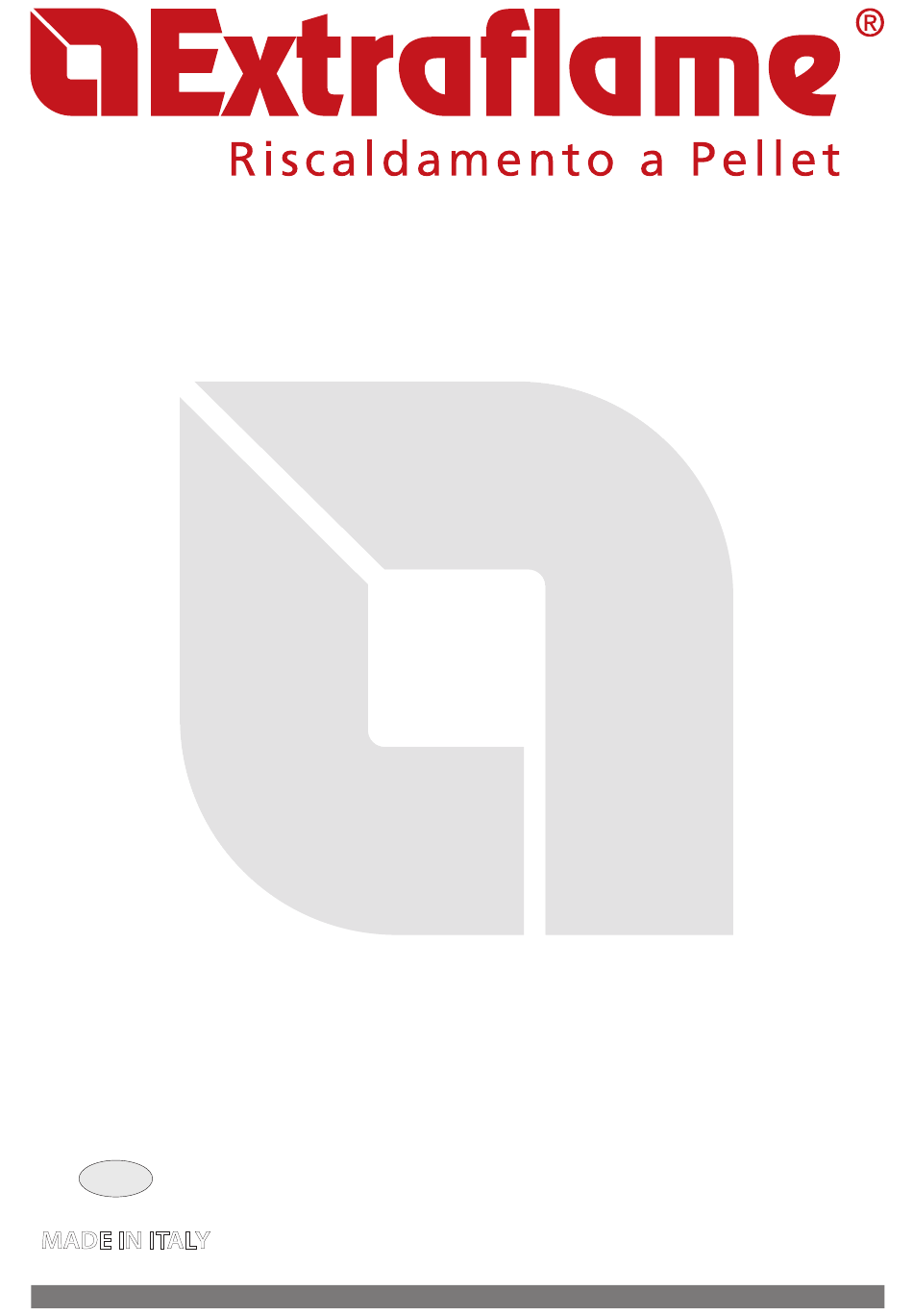

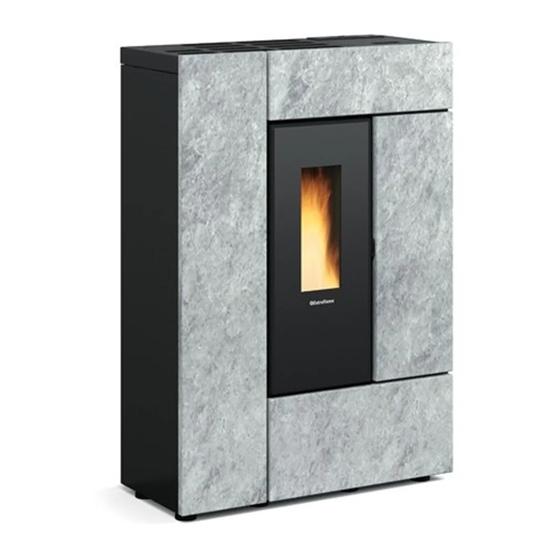

- Page 1 PELLEt StovES USER MANUAL GABRIELLA PLUS MADE ITALY design & production 004280494 - Rev 000...
- Page 2 APPLY TECHNICAL DATA LABEL ENGLISH...
-
Page 3: Table Of Contents
................................11 HErMEtIcaLLy SEaLEd INStaLLatIoN ..............................12 combustion air ..............................................12 FumEs EXHaust sYstEm.............................................12 GaBrIELLa PLuS dEtaILS .................................... 13 spacErs ..................................................14 Hot aIr ductING ......................................14 aDDitionaL tHErmostat to controL tHE Duct motor ...............................14 StoVE PoSItIoNING ..................................... 15 NotES for corrEct oPEratIoN ................................ - Page 4 Nas primeiras horas de fuNcioNameNto, podem ser gerados fumos e odores decorreNtes do processo de “rodagem térmica” Normal. duraNte este processo, de duração variável coNsoaNte o produto, é recomeNdável remover eveNtuais partes em faiaNça, pedra Natural ou metal da parte superior do produto. gabriella plus pietra gabriella plus ENGLISH...
-
Page 5: English
We thank you for having chosen our company; our product is a great heating solution developed from the most advanced technology with top quality machining and modern design, aimed at making you enjoy the fantastic sensation that the heat of a flame gives, in complete safety. Warnings This instructions manual is an integral part of the product: make sure that it always accompanies the appliance, even if transferred to another owner... - Page 6 RECEIVED INSTRUCTIONS ON SAFE USE OF THE APPLIANCE AND THAT THEY UNDERSTAND THE INHERENT DANGERS. Š THE GENERATOR MUST NOT BE USED BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY AND MENTAL CAPACITIES OR WHO ARE UNSKILLED PERSONS, UNLESS THEY ARE SUPERVISED AND TRAINED REGARDING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.
-
Page 7: Routine Maintenance
(STRONG WIND, FREEzING) SAFETY SYSTEMS MAY INTERVENE THAT SWITCH THE GENERATOR OFF. IF THIS OCCURS, CONTACT THE TECHNICAL AFTER-SALES SERVICE AND ALWAYS DISABLE THE SAFETY SYSTEMS. Š IN THE EVENT THE FLUE CATCHES FIRE, USE SUITABLE SYSTEMS FOR SUFFOCATING THE FLAMES OR REQUEST HELP FROM THE FIRE BRIGADE. -
Page 8: Regulation (Eu) 2015/1185
INFORMATION REQUIREMENTS FOR SOLID FUEL LOCAL SPACE HEATERS (COMMISSION REGULATION (EU) 2015/1185) Model identifier(s) - - - GABRIELLA PLUS Indirect heating functionality - - - Direct heat output Indirect heat output Fuel - - - Compressed wood with moisture content < 12 % Seasonal space heating energy efficiency η... -
Page 9: Installation
InstallatIOn general The flue gas exhaust and hydraulic connections must be carried out by qualified personnel who must issue installation conformity documentation compliant with national standards. The installer must provide the owner or person acting for him, according to the legislation in force, with the declaration of conformity, supplied with: 1) the use and maintenance manual of the appliance and of the system components (such as for example, the smoke ducts, chimney, etc.);... - Page 10 In the presence of type B gas appliances with intermittent operation not intended for heating, they must have their own aeration and/or ventilation opening. The air inlets must meet the following requirements: Š they must be protected with grids, metal mesh, etc., but without reducing the net useful section; Š...
-
Page 11: Upper Fumes Outlet Assembly
UPPER FUMES OUTLET ASSEMBLY 1. Remove upper swarf. 2 . Remove rear cover. 3. Remove upper closure and rear extension. 4. Install upper extension and rear closure. 5. Install rear cover. 6. Insert upper discharge. NOT AVAILABLE FOLLOW THE ASSEMBLY INSTRUCTIONS CAREFULLY! ALWAYS FOLLOW THE ASSEMBLY INSTRUCTIONS IN COMPLETE SAFETY! THE STOVE MUST BE COMPLETELY COLD, SWITCHED OFF AND DISCONNECTED FROM THE ELECTRICAL POWER SUPPLY. -
Page 12: Hermetically Sealed Installation
Hermetically sealed installation The generator is a fully sealed product with respect to the environment in which it is installed. This means that it is ideal for passive houses because it does not take air in from within the house. combustion air To ensure the stove remains hermetically sealed, the connection pipe for the combustion air must be directly connected to the exterior, using special pipes and sealed connectors. -
Page 13: Gabriella Plus Details
PlUS DeTAilS Spacer On/Off Rear fumes exhaust Fuse Access to combustion chamber 230 V power supply Lateral ducting Serial input Room probe Additional thermostat input Room air outlet Ducting thermostat input Display Rear ducting Upper fumes exhaust Combustion air inlet... -
Page 14: Spacers
SPACeRS There are 2 spacers located at the back of the machine which determine the minimum distance from any support behind the stove. The spacers must not be removed. Please note: direct the room probe downwards or towards the outside of the stove. hOT AiR DUCTiNg The pipe used for ducting the hot air must have an internal diameter of 80 mm and it must also be insulated or at least be protected against heat dispersion. -
Page 15: Stove Positioning
STOVe POSiTiONiNg To ensure the stove works correctly, it should always be positioned so that it is perfectly level, using a spirit level. NOTeS fOR CORReCT OPeRATiON Pellet hopper lid The following indications must be respected for correct pellet stove operation: Both during stove operation and when it is not used, all hatches (pellet hopper, door, ash drawer) must remain closed at all times. -
Page 16: Pellets And Feeding
Pellets and feeding Pellets are made by subjecting wood shavings, i.e. the rejects of pure wood (without paint) produced by sawmills, joineries and other activities connected to working and transforming wood, to very high pressures. This type of fuel is fully ecological as no glues are used to hold it together. Indeed, the compactness of the pellets over time is guaranteed by a natural substance found in wood: lignite. -
Page 17: Remote Control
Remote contRol The remote control can be used to adjust the main stove functions. Transmitter Select air mode Display Lock keyboard On/off stove (hold for 3 seconds) Degrees Celsius / Fahrenheit Set power Press the button once to enable or disable the chrono Set switch-off delay: The button allows to set the switch- off delay. -
Page 18: Remote Control Icons
Remote contRol Icons Air mode selected: Enable chrono Flashing COMFORT Light on = activated On AUTO Light off = deactivated Indicates the transmission of the radio signal Set switch-off delay On = during all radio communication Off = radio communication absent Battery low Keys locked Set power level. -
Page 19: Control Board
Control Board TEXT MESSAGE TO ACCESS ON/OFF DISPLAY THE MENU BUTTON OPERATING TEMPERATURE POWER SETTINGS SETTINGS ICon key Indicates the presence of an alarm. Indicates the status of the weekly programming Off: indicates that there are no alarms Off: deactivated. On: indicates the presence of an alarm On: activated. -
Page 20: General Menu
General menu Go back - exit Scroll parameters: next (3); previous (2) Change settings data: increase (4); decrease (5) Confirm - access menu FRONT AIR AIR DUCTING EASY SETUP CHRONO ENABLING PRG1 PRG2 SETTINGS DATE-TIME PRG3 LANGUAGE PRG4 DISPLAY STAND BY DELTA-T FIRST LOAD DEGREES... -
Page 21: First Ignition Settings
fIrst IGnItIon settInGs Once the power cord at the back of the stove has been connected, move the switch, also located on the back, to (I). The switch at the back of the stove powers the stove board. The stove remains off and a first screen appears on the panel reading OFF . date-tIme This menu allows the date and time to be set. -
Page 22: Operation And Logic
operatIon and loGIC IGnItIon Once the previously listed points have been checked, press key 1 for three seconds to ignite the stove. During ignition, the stove will check for a flame for a period of 15 minutes. Once the control temperature has been reached, the stove interrupts the ignition phase and switches to PREPARATION. -
Page 23: Front Air
front aIr This menu allows the front ventilation speed to be set. Range: (COMFORT, AUTO). When COMFORT mode is selected, the front air speed is reduced with respect to AUTO mode. CONTROLS PROCEDURE Š Press key 6. Š Confirm FRONT AIR by pressing key 6. Š... -
Page 24: Chrono
Chrono This function allows stove ignition and switch-off to be automatically programmed. The factory setting for CHRONO is off. The chrono allows the programming of 4 time slots per day, which can be used every day of the week. for each time slot, it is possible to set ignition and switch-off times, specific days of application, desired temperature and set power. Current day and time settings are essential for the correct operation of the Chrono. - Page 25 EXAMPLE OF CHRONO OVERLAPPING TIMES/SLOTS TIME SLOT 02:00 08:00 16:30 23:00 SET POWER 02:00 08:00 16:30 23:00 SET THERMOSTAT 22° 18° 02:00 08:00 16:30 23:00 start 02:00 Time slot 1 power 3 - SET THERMOSTAT 22°C stop 23:00 start 08:00 Time slot 2 power 1 - SET THERMOSTAT 18°C stop 16:30...
-
Page 26: Settings
settInGs • date-tIme • lanGuaGe See chapter: firSt ignition SettingS • deGrees DISPLAY This menu allows you to adjust the brightness of the display. The values range from OFF, 1 to 20. If set to OFF, the display backlighting is set to maximum brightness and turns off after a 60 second delay. -
Page 27: Additional Thermostat
addItIonal thermostat n.B. : InstallatIon must Be performed By an authorIsed teChnICIan It is possible to control the temperature of a room adjacent to the room where the stove is positioned; simply connect a thermostat following the procedure described in the following section (it is advisable to place the optional mechanical thermostat at a height off the ground equal to 1.50 m). -
Page 28: Easy Control
EASY CONTROL The function allows for two values to be set: Š OFF (disabled - factory default) Š ON (enabled) Activation (EASY CONTROL = ON) is recommended in the event that there is an excessive formation of combustion residues in the flue during operation at reduced power (see FLUE EXHAUST chapter). -
Page 29: Cleaning And Maintenance
TO FIND OUT WHERE YOUR NEAREST SERVICE CENTRE IS, CONTACT YOUR DEALER OR VISIT THE WEBSITE: WWW.LANORDICA-EXTRAFLAME.COM CLEANING AND MAINTENANCE ALWAYS FOLLOW THE INSTRUCTIONS IN COMPLETE SAFETY! Š Make sure that the power supply cable plug is disconnected, as the generator may have been programmed to turn on. - Page 30 BURN POT AND COMBUSTION CHAMBER Š Remove the ash conveyor (1) completely, emptying any ash resides into the burn pot below. Š Remove the burn pot (2) and empty out any ash residues. Š Vacuum the ash from the combustion chamber and spark-plug pipe holder (A).
- Page 31 HEAT EXCHANGER - TOP PART Remove the deflector and eliminate any ash that may have deposited in the top part of the heat exchanger, using the pipe cleaner supplied. Pay attention to any ash that may have deposited on the deflector. ENGLISH...
-
Page 32: Routine Maintenance Performed By Qualified Technicians
THE SEALS OF THE PELLET HOPPER, BURN POT AND FIRE DOOR ENSURE THE CORRECT OPERATION OF THE STOVE. THESE NEED TO BE PERIODICALLY CHECkED BY THE USER. IF THEY ARE WORN OR DAMAGED, REPLACE THEM IMMEDIATELY. THESE OPERATIONS MUST BE CARRIED OUT BY A QUALIFIED TECHNICIAN. A CLEAN BURN POT GUARANTEES CORRECT OPERATION! BY kEEPING THE BURN POT AND ITS HOLES CONSTANTLY CLEAN AND FREE OF COMBUSTION RESIDUE, EXCELLENT COMBUSTION IS GUARANTEED OVER TIME,... - Page 33 HEAT EXCHANGER ENGLISH...
- Page 34 ROUTINE MAINTENANCE THE IMAGES ARE FOR ILLUSTRATIVE PURPOSES. Fumes motor (disassembly and cleaning and fumes pipe and "T"), new silicone in the provided points Gaskets, pellet hopper, inspections, ash drawer and door (replace and apply silicone where indicated) Combustion chamber and heat exchanger (full cleaning) including ignition plug pipe Hopper (complete emptying and cleaning) and check gasket.
- Page 35 ROUTINE MAINTENANCE THE IMAGES ARE FOR ILLUSTRATIVE PURPOSES. Fumes motor (disassembly and cleaning and fumes pipe and "T"), new silicone in the provided points Gaskets, pellet hopper, inspections, ash drawer and door (replace and apply silicone where indicated) Combustion chamber and heat exchanger (full cleaning) including ignition plug pipe Hopper (complete emptying and cleaning) and check gasket.
-
Page 36: Displays
Displays Display Reason Generator off sTaRT The start-up phase is in progress pelleT loaDinG Continuous pellet loading is in progress during the ignition phase iGniTion The ignition phase is in progress pRepaRaTion The preparation phase is in progress WoRk The normal work phase is in progress MoDulaTion The generator is working at minimum final cleaninG... -
Page 37: Disposal
Disposal InformatIon for management of electrIc and electronIc applIance waste contaInIng batterIes or accumulators This symbol, which is used on the product, batteries, accumulators or on the packaging or documents, means that at the end of its useful life, this product, the batteries and the accumulators included must not be collected, recycled or disposed of together with domestic waste. Improper management of electric or electronic waste or batteries or accumulators can lead to the leakage of hazardous substances contained in the product. - Page 38 ENGLISH...
- Page 39 ENGLISH...
- Page 40 ExtraflamE S.p.a. Via Dell’Artigianato, 12 36030 - MONTECCHIO PRECALCINO (VI) - ITALY +39.0445.865911 - +39.0445.865912 - info@extraflame.it - www.lanordica-extraflame.com MADE ITALY design & production TO FIND THE SERVICE CENTRE NEAREST TO YOU CONTACT YOUR DEALER OR CONSULT THE SITE WWW.LANORDICA-EXTRAFLAME.COM...
