AL400X220 Series
Power Supply/Charger
Models Include:
AL400X220
- Single Output.
AL400PD4220
- Four (4) Fuse Protected Outputs.
AL400PD8220
- Eight (8) Fuse Protected Outputs.
AL400XPD16220
- Sixteen (16) Fuse Protected Outputs.
For a red enclosure add an "R" suffix to the part #, e.g. AL400PD8R220
For a larger enclosure add an "X" suffix to the part #, e.g. AL400XPD8220
Installation Guide
Rev. 102512
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
AL400PD4CB220
- Four (4) PTC Protected Outputs.
AL400PD8CB220
- Eight (8) PTC Protected Outputs.
AL400XPD16CB220
- Sixteen (16) PTC Protected Outputs.
More than just power.
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix AL400X220 Series
Summary of Contents for Altronix AL400X220 Series
- Page 1 AL400X220 Series Power Supply/Charger Models Include: AL400X220 - Single Output. AL400PD4220 AL400PD4CB220 - Four (4) Fuse Protected Outputs. - Four (4) PTC Protected Outputs. AL400PD8220 AL400PD8CB220 - Eight (8) Fuse Protected Outputs. - Eight (8) PTC Protected Outputs. AL400XPD16220 AL400XPD16CB220 - Sixteen (16) Fuse Protected Outputs.
-
Page 2: Specifications

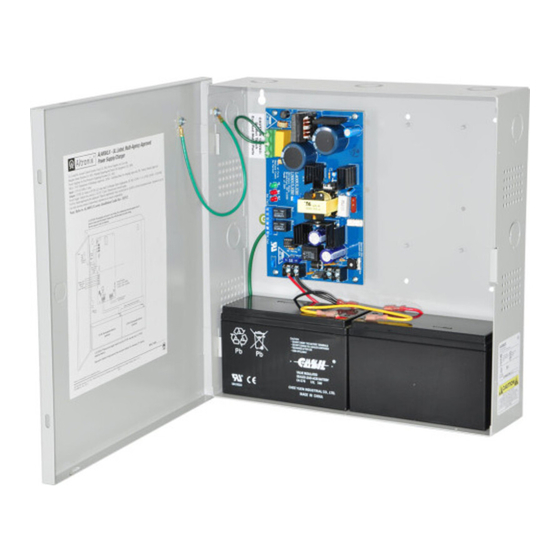

Overview: Altronix AL400X220 is a power supply that converts a nominal 220VAC (working range 198VAC-256VAC), 50/60Hz input to a 12VDC or 24VDC regulating output (see specifications below). The AL400X is the base power supply unit for the multi-output power supply/charger series: AL400PD4220, AL400PD4CB220, AL400PD8220, AL400PD8CB220, AL400XPD16220, AL400XPD16CB220 (Refer to AL400X220 Series Power Supply Configuration Reference Chart below). -
Page 3: Power Supply Output Specifications
Alarm = 3.0A Alarm = 3.0A Fig. 1 - AL400X220 Series CAUTION: De-energize unit prior to servicing. For continued protection against risk of electric shock and fire hazard replace fuse with the same type and rating. Do not expose to rain or moisture. -
Page 4: Installation Instructions
Note: Maximum charging current under discharges is 0.7A. Note: Expected battery life is 5 years; however, it is recommended changing batteries in 4 years or less if needed. - 4 - AL400X220 Series... -
Page 5: Led Diagnostics
Stand-by battery connections. Maximum charge current 0.7A. Power Distribution Module Terminal Legend Function/Description PD4/PD4CB PD8/PD8CB 1P to 4P 1P to 8P Positive DC power outputs. 1N to 4N 1N to 8N Negative DC power outputs. AL400X220 Series - 5 -... -
Page 6: Power Distribution Module(S)
COMMON POWER OUTPUTS DC Output to devices From Power Supply DC Output to devices From Power Supply 1P-8P Power Outputs, Board 1P-8P Power Outputs, Board 1N-8N Common Outputs (Factory Installed) 1N-8N Common Outputs (Factory Installed) - 6 - AL400X220 Series... - Page 7 (35.6mm) 1.20” (30.5mm) 0.75” 0.75” 12.5” (317.5mm) 1.20” 1.20” (19.1mm) (19.1mm) (30.5mm) (30.5mm) 11.0” (279.4mm) 0.9375” (23.8mm) 1.40” 1.40” (35.6mm) (35.6mm) 0.9375” (23.8mm) 3.25” (82.6mm) 3.25” (82.6mm) 1.0” (25.4mm) 1.0” 1.0” 10.5” (266.7mm) (25.4mm) (25.4mm) AL400X220 Series - 7 -...
- Page 8 (38.1mm) (38.1mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. IIAL400X220 Series G06U MEMBER...
