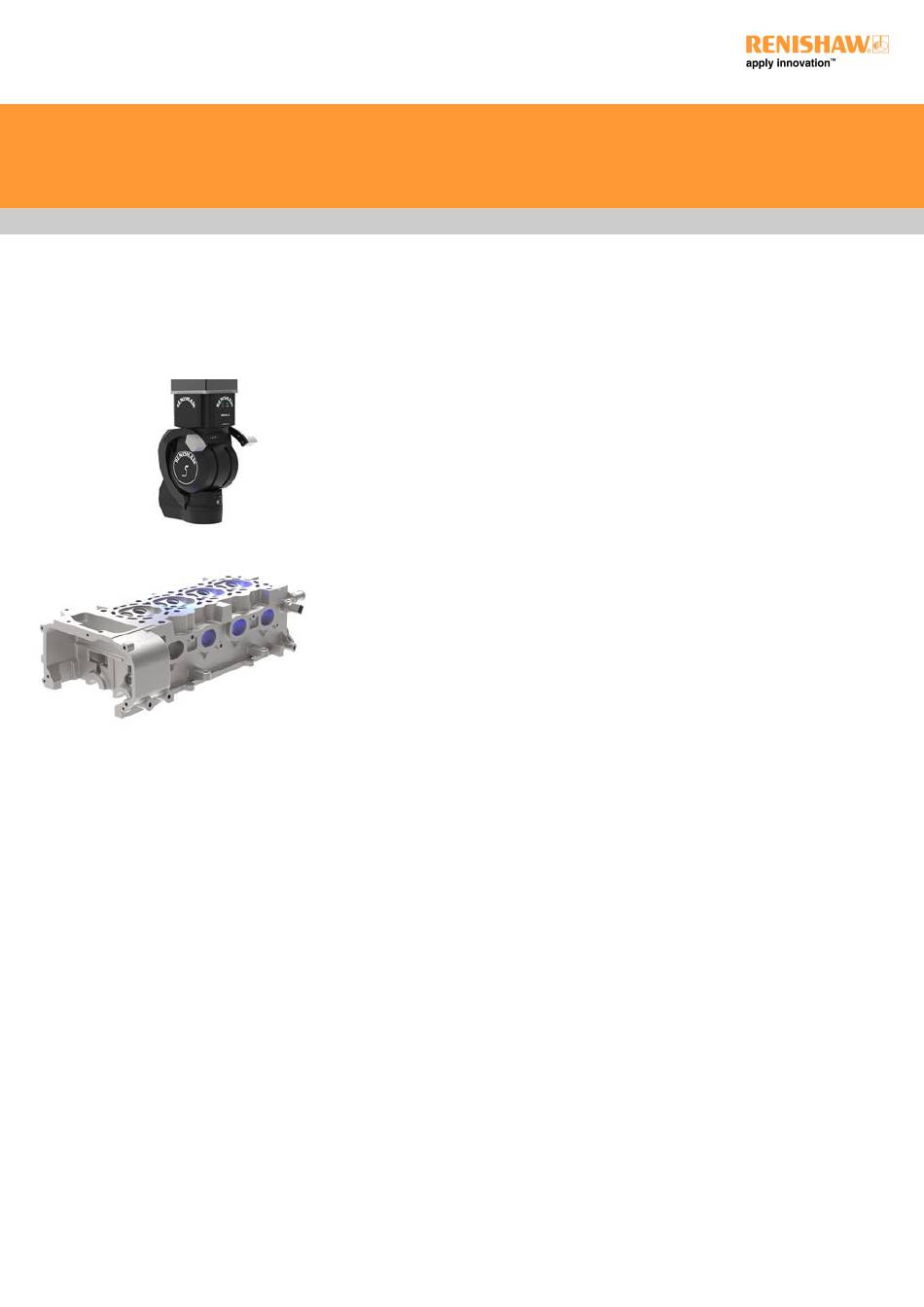

- Page 1 RFP1 user's guide www.renishaw.com RFP1 user's guide Document part number H-1000-5430-03-F Issued 06 2022...
-
Page 2: General Information
WEEE The use of this symbol on Renishaw products and / or accompanying documentation indicates that the product should not be mixed with general household waste upon disposal. It is the responsibility of the end user to dispose of this product at a designated collection point for waste electrical and electronic equipment (WEEE) to enable reuse or recycling. - Page 3 Renishaw warrants its equipment and software for a limited period (as set out in the Standard Terms and Conditions), provided that they are installed and used exactly as defined in associated Renishaw documentation. You should consult these Standard Terms and Conditions to find out the full details of your warranty.
- Page 4 RFP1 user's guide www.renishaw.com Patents Features of Renishaw's RFP1 and associated products (such as REVO-2) are the subjects of one or more of the following patents and patent applications:: CN100453970 EP1877727 JP2016-533484 US10260856 WO2014/191729 CN101166951 EP1877732 JP2019-522213 US10627259 WO2015/049341 CN101166953...
-
Page 5: Product Compliance
Information to user (47 CFR 15.21) The user is cautioned that any changes or modifications not expressly approved by Renishaw plc or authorised representative could void the user's authority to operate the equipment. - Page 6 Information required by Article 33﴾1﴿ of Regulation ﴾EC﴿ No. 1907/2006 ﴾“REACH”﴿ relating to products containing substances of very high concern (SVHCs) is available at: www.renishaw.com/REACH China RoHS Contact Renishaw plc or visit www.renishaw.com/ChinaRoHSCMM for the full China RoHS tabulation. Issued 06 2022...
- Page 7 RFP1 user's guide www.renishaw.com Safety Before unpacking and installing the RFP system, the user should carefully read the safety instructions below and ensure that they are followed at all times by all operators. The RFP system should only be used with the REVO-2 head.
-
Page 8: Environmental Conditions
The REVO-2 head and probe electronics are powered from the UCC S5. The head motors are powered from the SPA3. The VPCP is powered by a separate power supply that is supplied by Renishaw. Any additional backlighting is powered by a separate power supply that is supplied by Renishaw. -
Page 9: References And Associated Documents
RFP1 user's guide www.renishaw.com References and associated documents The following Renishaw documents are referred to in this document or may be a source of further relevant information. They can easily be acquired from Renishaw web site www.renishaw.com. Title Document number... -
Page 10: System Description

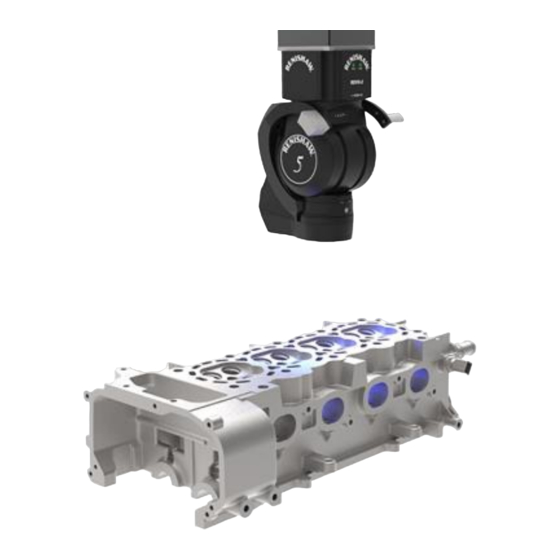

RFP1 user's guide www.renishaw.com System description ® The REVO fringe probe (RFP1) is a non-contact structured light sensor for the REVO system offering highly accurate measurement of surface topology on an infinite positioning, 5-axis CMM platform. RFP1 increases the multi-sensor capability of the REVO system, which now offers interchangeable tactile scanning, touch-trigger, surface finish, non-contact structured light and vision probes. -
Page 11: Operating Principle
RFP1 user's guide www.renishaw.com Operating principle RFP1 projects a sinusoidal fringe pattern onto the surface of the part and the camera takes images of the pattern deformation caused by the surface topology. On a flat plane the pattern will be uniform:... - Page 12 RFP1 user's guide www.renishaw.com The change in fringe intensity at each point is used to calculate the absolute 3D position of that point on the part surface. A patch of XYZ position data points is returned for each fringe capture with up to 640,000 points in each patch.
-
Page 13: System Components Overview
RFP1 user's guide www.renishaw.com System components overview Description Part number REVO-2 head A-5759-0001 RFP1 probe A-5417-0010 FA10 calibration artefact A-5417-0021 VPCP probe change port A-5378-0081 Issued 06 2022... - Page 14 RFP1 user's guide www.renishaw.com RFP1 RFP1 is the probe component of the system and houses the fringe projector, camera and digital signal processor. It is automatically interchangeable with other probe options using the VPCP heated change port. FA10 calibration artefact The FA10 is an optical calibration artefact used to calibrate RFP1.
-
Page 15: Dimensional Information
RFP1 user's guide www.renishaw.com Dimensional information RFP1 VPCP Issued 06 2022... - Page 16 RFP1 user's guide www.renishaw.com FA10 Issued 06 2022...
- Page 17 / detach RFP1 use the following procedure. 1. Align the front of the head with the probe (look at the 'Renishaw' engraving on the front of probe or alignment marks as applicable). 2. Carefully slide the RFP1 up, then horizontally forwards onto the REVO-2 head, ensuring the counterweights do not foul the head as they pass.
- Page 18 RFP1 user's guide www.renishaw.com RFP1 calibration FA10 calibration artefact Data collected by RFP1 is in the same reference frame as data collected by the REVO-2 tactile probes. The FA10 artefact is used to calibrate RFP1 and provides the link between RFP1 and the tactile reference frame.
- Page 19 RFP1 user's guide www.renishaw.com Calibrating an RFP1 1. At the start of the qualification process, the RFP1 will move from its current position to the safe position values defined in the FA10 dialogue box. User must take care to ensure that there is a clear line of sight from the current position to the FA10 safe position before requesting a qualification 2.
- Page 20 RFP1 user's guide www.renishaw.com Fixing FA10 calibration artefact to CMM The FA10 calibration artefact is designed to be fixed securely to the bed of the CMM to allow accurate and repeatable calibration of RFP1. The diagrams below show how to fix the FA10 to the bed of the CMM.
-
Page 21: Installation
Installation NOTE: Please refer to the REVO-2 change port system spacing guide (Renishaw part number H-1000-5408) for full details of the recommended spacing for positioning all sensors and artefacts on the MRS / MRS2 rail. Fitting VPCP to the MRS / MRS2 rack The VPCP heated change ports can be fixed to an MRS or MRS2 rack system. - Page 22 Connecting VPCP to PSU Using a PSU other than the one supplied by Renishaw is not recommended. DC extension cables are available for the PSU but the length should not exceed 15 m otherwise the performance can be affected.
- Page 23 RFP1 user's guide www.renishaw.com VPCP switch settings The temperature can be set using the rotary switch on the rear of the port: Position Description 0 - 3 Reserved for future use 4 (factory set) Suitable for specified system ambient temperature...
- Page 24 A cleaning kit for the precision ball seating and permanent magnet is available from your Renishaw supplier (part number A-1085-0016). It comprises strips of yellow tack material. Use the yellow tack to clean the areas indicated with arrows numbered [1] on the image below.
- Page 25 NOTE: Cleanliness of the optical windows is important to maintain the highest level of performance of the probe and modules. If any contamination cannot be removed and is resulting in degraded metrology performance, please contact your local Renishaw office.
-
Page 26: Technical Terminology
RFP1 user's guide www.renishaw.com Technical terminology Probe length and stand-off Probe length is the distance between the A-axis centre of the REVO-2 head and the centre of the measurement volume. This is equivalent to the probe length for RSP2 and RSP3 probes. Stand-off is the distance between the end of RFP1 and the plane at the centre of the measurement volume. - Page 27 RFP1 user's guide www.renishaw.com Measurement volume Data will be returned from surfaces within the measurement volume and in line of sight of the projector and camera. No data will be returned from areas of the fringe pattern falling on surfaces outside of this volume.
- Page 28 Renishaw plc +44 (0)1453 524524 New Mills, Wotton-under-Edge +44 (0)1453 524901 Gloucestershire, GL12 8JR United Kingdom www.renishaw.com/cmmsupport For worldwide contact details, please visit our main website at www.renishaw.com/contact Issued 06 2022...
