Please refer to the maintenance manual before starting the installation of the charging station. This device is to be installed only by a professional electrician
fitter according to local applicable installation standards. Conform to TBTS installation rules.
Witty charging station for electric vehicle (116 pages)

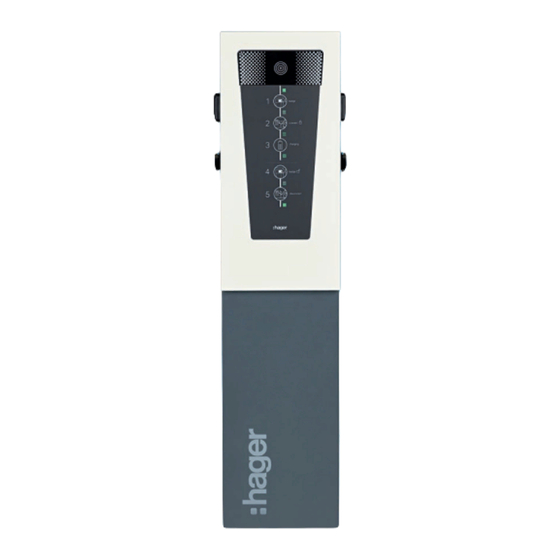

Summary of Contents for hager witty park XEV6 Series
Page 1

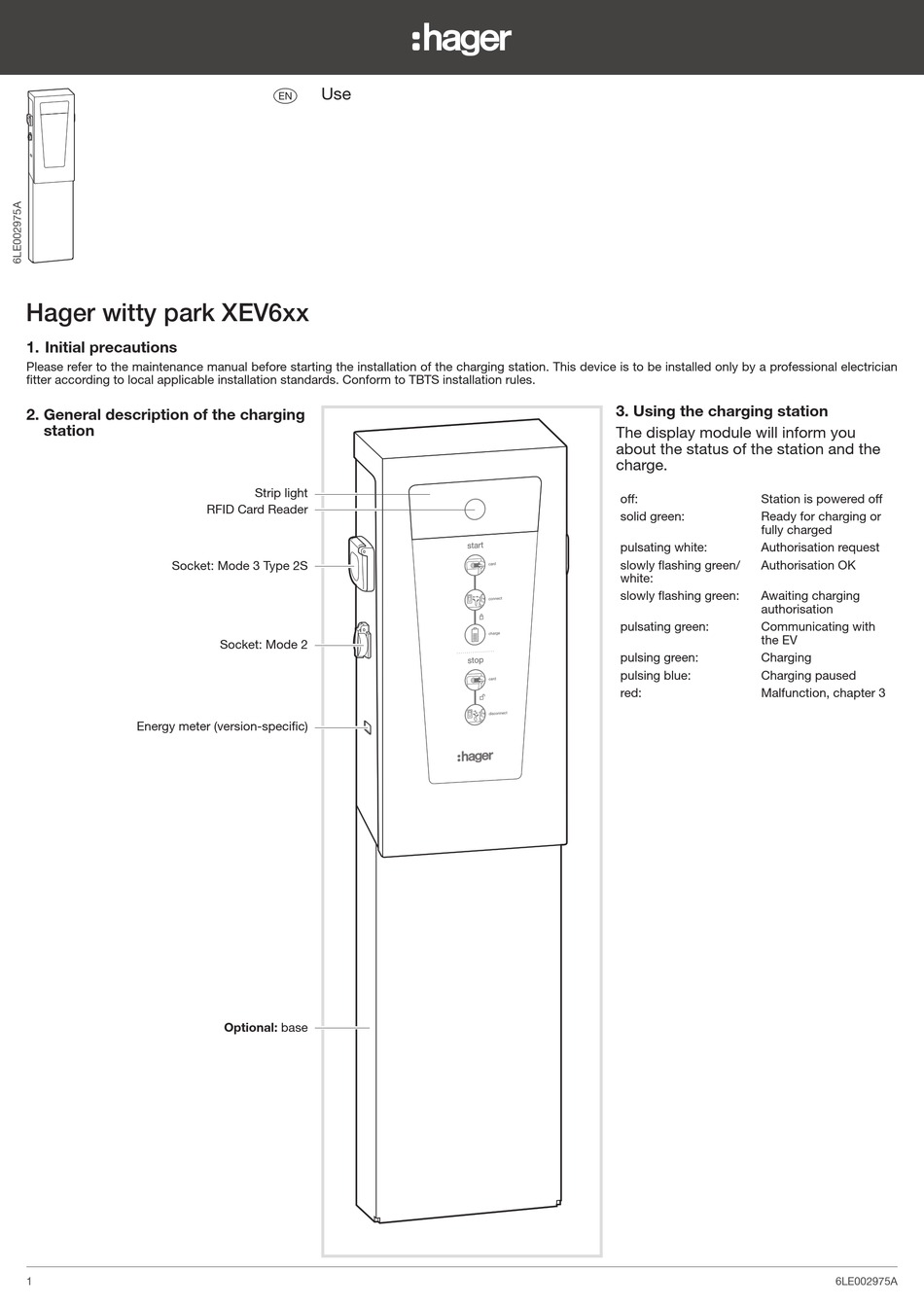

Hager witty park XEV6xx 1. Initial precautions Please refer to the maintenance manual before starting the installation of the charging station. This device is to be installed only by a professional electrician fitter according to local applicable installation standards. Conform to TBTS installation rules.
Page 2
3.1. Start a charging operation Indicator light: solid green Hold the badge Smartphone START card in front of the reader alternative: Scan the QR Code with a Smartphone Indicator light: flashing white / green Indicator light: flashing white connection Connect the vehicle end and station end cable lock the cable Wait for the exterior signal...
Page 3
3.2. Stop a charging operation Indicator light: pulsing green or solid green Hold the badge Or Stop the Or Remove the STOP card in front of the reader charging from cable if the station a Smartphone is configured in Free Release Wait for a maximum of 3 seconds Indicator light: flashing white / green unlock the cable...
Page 4
This product should not be mixed with other commercial wastes of disposal. Usable in all Europe and in Switzerland Hager Group - Tehalit GmbH - Seebergstraβe 37 - DE-67716 Heltersberg Hager 09.17 - 6LE002975A...
