hager XEV6 Series Quick Start Manual

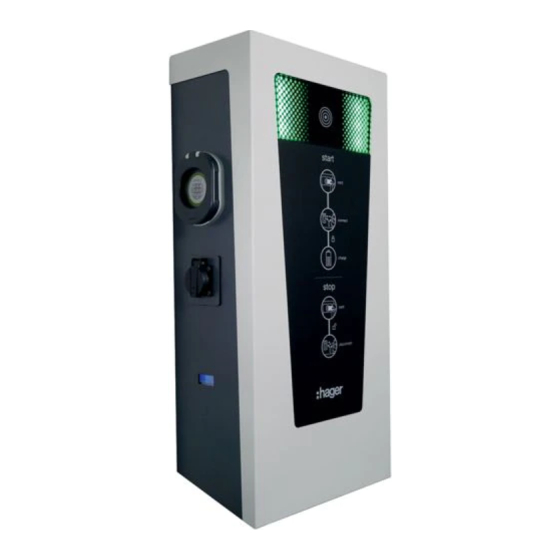

Witty Light commercial XEV6xx

1. Initial precautions

Please refer to the maintenance manual before starting the installation of the charging station. This device is to be installed only by a professional electrician
fitter according to local applicable installation standards. Conform to SELV installation rules.

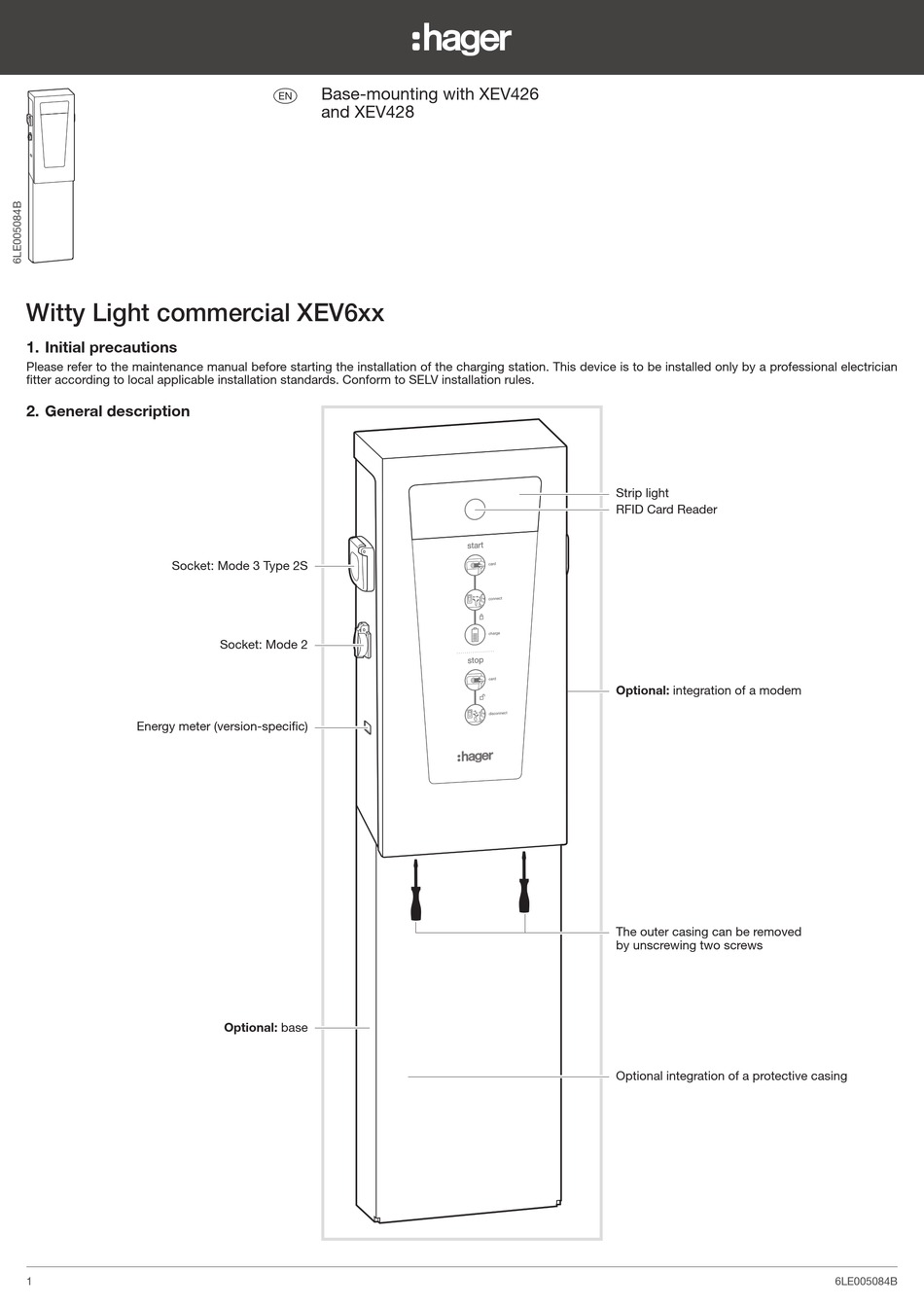

2. General description

Socket: Mode 3 Type 2S
Energy meter (version-specific)
1
Base-mounting with XEV426
z
and XEV428
Socket: Mode 2
Optional: base
Strip light
RFID Card Reader
Optional: integration of a modem
The outer casing can be removed
by unscrewing two screws
Optional integration of a protective casing
6LE005084B
