Hager witty park XEV6xx
1. Initial precautions
Please refer to the maintenance manual before starting the installation of the charging station. This device is to be installed only by a professional electrician
fitter according to local applicable installation standards. Conform to SELV installation rules.

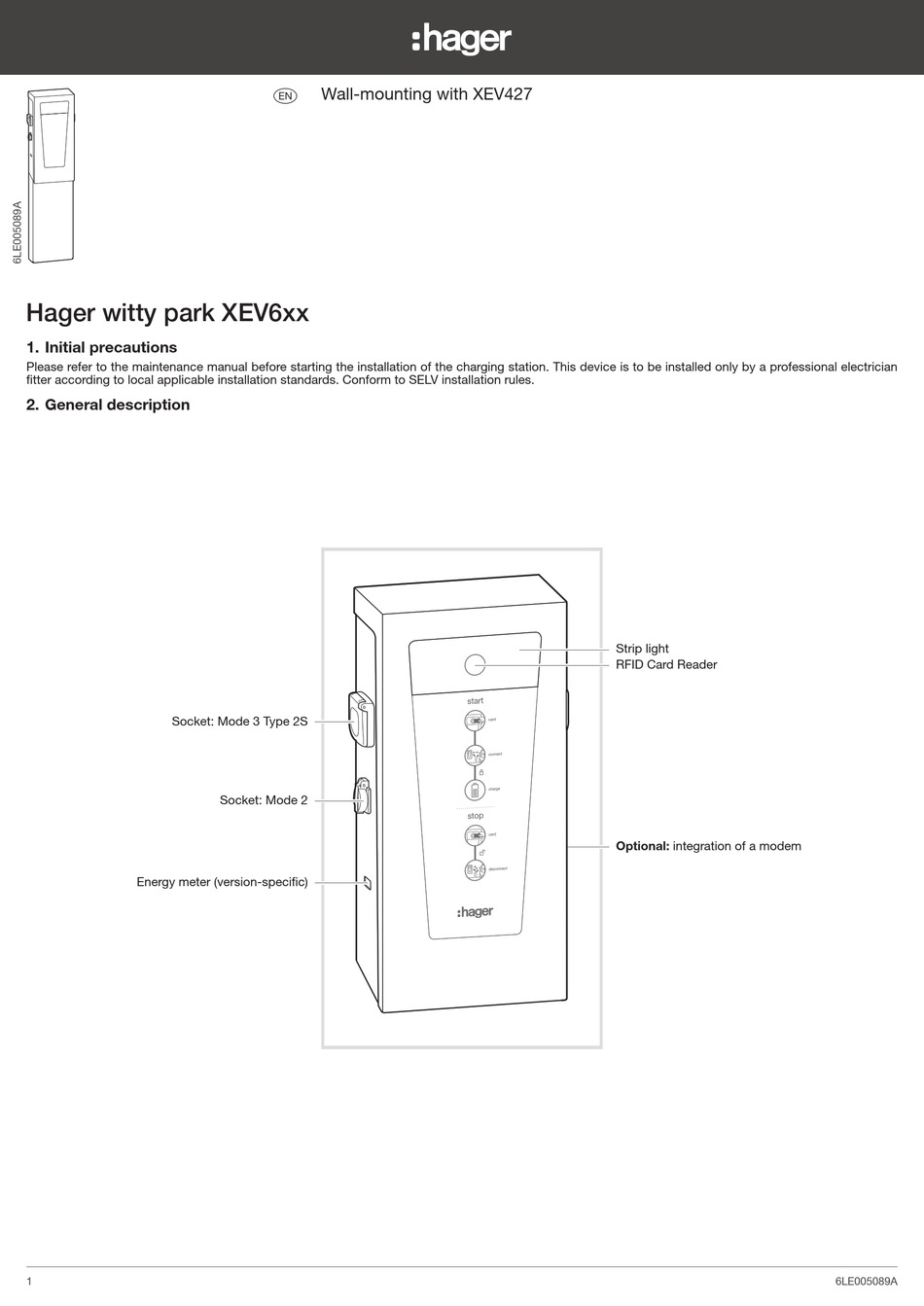

2. General description
Socket: Mode 3 Type 2S
Energy meter (version-specific)
1
Wall-mounting with XEV427
z
Socket: Mode 2
Strip light
RFID Card Reader
Optional: integration of a modem
6LE005089A
