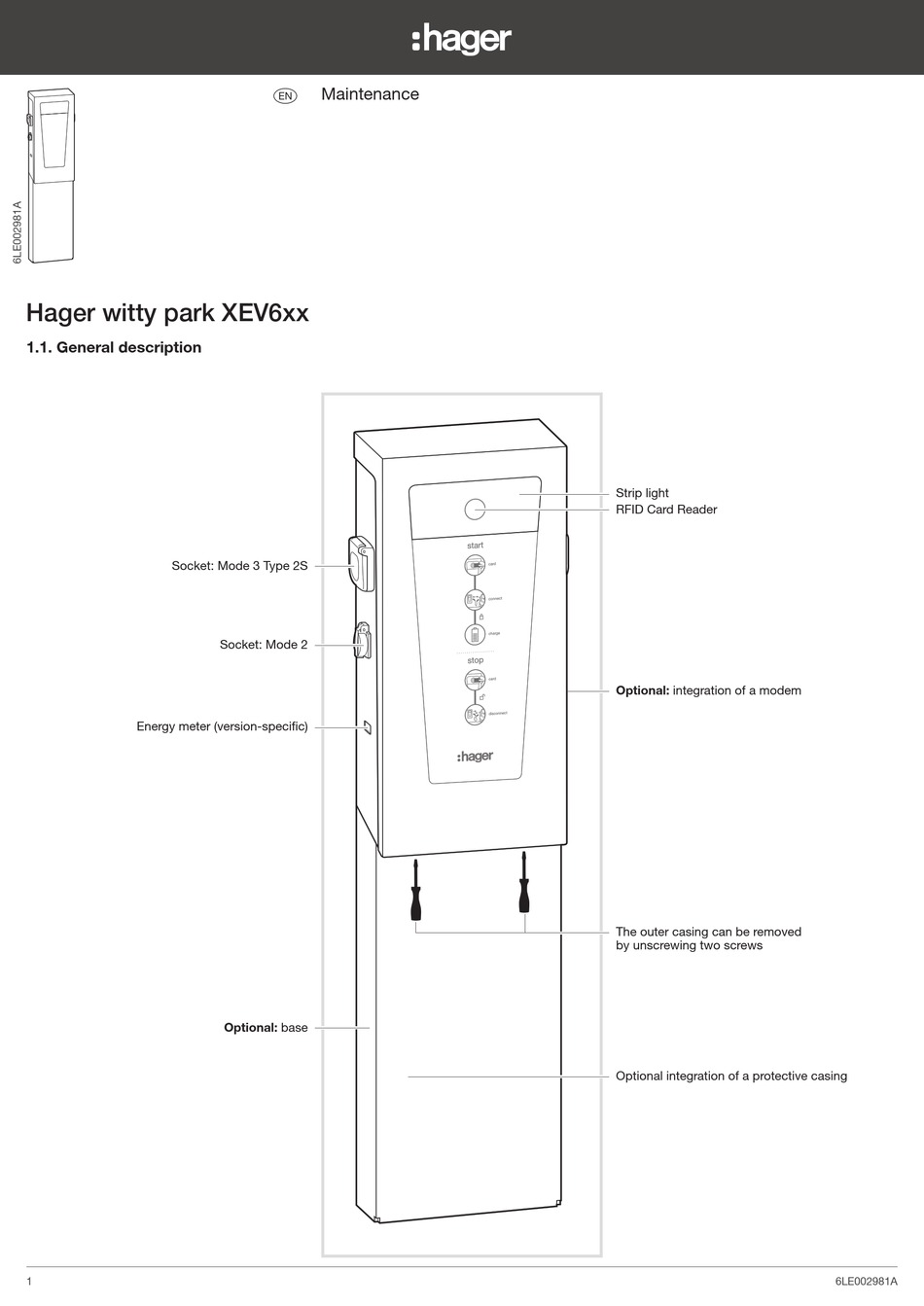

Hager witty park XEV6xx
1.1. General description
Socket: Mode 3 Type 2S
Energy meter (version-specific)
1
Maintenance
z
Socket: Mode 2
Optional: base
Strip light
RFID Card Reader
Optional: integration of a modem
The outer casing can be removed
by unscrewing two screws
Optional integration of a protective casing
6LE002981A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XEV6 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for hager XEV6 Series

  • Page 1 Maintenance Hager witty park XEV6xx 1.1. General description Strip light RFID Card Reader Socket: Mode 3 Type 2S Socket: Mode 2 Optional: integration of a modem Energy meter (version-specific) The outer casing can be removed by unscrewing two screws Optional: base...
  • Page 2: Risk Management

    1.2. Introduction The purpose of this document is to provide a service frame to ensure a trouble-free operation for the end user. On this basis, the operator can adapt its maintenance based on his own experience. 2. Cautions Warning ! - Read all precautions before using this charging station.
  • Page 3 3.1. Hazards & preventive measures Crushing Electrical shock Warning ! Warning ! Risk when handling packages and trays The risk associated with electrical installations / components, during maintenance and is particularly present inside cabinets and at adjustment. the connections of the equipment. Wear protective gloves appropriate to the Work on electrical installations may only be risks.
  • Page 4 Manual or Automatic cycle start Risk Warning ! Risk of crushing, shock and electrical shock. Before any work, wait until the end of the cycle. Before starting the station, make sure that nobody is present in the work / danger zone. 4.
  • Page 5: Maintenance

    5. Maintenance 5.1. General instructions The inspection and maintenance plan defines clear responsibilities and authorisations for various maintenance works. Before any intervention, make sure that you are in possession of proper tools in good condition. It is mandatory to have a BR- electrical qualification of any intervener for the operations described in the "Maintenance"...
  • Page 6 Security Symbols Descriptions Descriptions Warning lights Earth connector Static security devices Mobile safety devices and safety sensors Windows / hoods Work area – inside station Emergency stops and key Differential circuit breaker Energy Symbols Descriptions Descriptions Electrical cabinet Charging cable with plug Station Status Symbols Descriptions Descriptions...
  • Page 7: Monthly Preventive Maintenance

    6. Monthly Preventive Maintenance The nature of preventive maintenance services is as follows : Function Description Action Description Level Duration Freq. Security Details Operator 1x/ Month Machine in use Absence of breakage, oxidation, sticker or tag. Area accessible to customers Cleaning and dusting Operator 1x/ Month...
  • Page 8: Annual Preventive Maintenance

    Function Description Action Description Level Duration Freq. Security Details Technician 1x/ Month Machine in use Checking protections - Test the Electrical cabinet differential function using the test button monthly. 7. Annual Preventive Maintenance In addition to the monthly check, thank you to the following checks: Function Description Action...
  • Page 9 8. Torques Tightening torques Assembly M3T2S: 0.6 N.m CP/PP: 0.4 N.m Circuit breaker: PE/L1/L2/L3/N: 2 N.m 1.2 N.m Meter: PE/L1/N: 2 N.m 0.8 N.m Assembly M2: Contactor: Contactor: 3 N.m 0.4 N.m 0.5 N.m 9. Decommissioning Disassembly / separation / disposal / recycling Contact a specialised agency for this operation and comply with the standards and laws for the treatment of fluids and materials.
  • Page 10 10.Terminology Emergency switch CTRL Control Liquid Crystal Display Light Emitting Diode RFID Radio Frequency Identification / RFID System 11. Decommissioning Installation Standards NF C 14-100 Category one connection facilities located between the distribution network and the source of the internal installations. NF C 15-100 Low voltage electrical installations.
  • Page 11: Precautions For Assembly

    USB key provided with the terminals and on the Hager website of your country. Correct Disposal of this product (Waste Electrical &...
