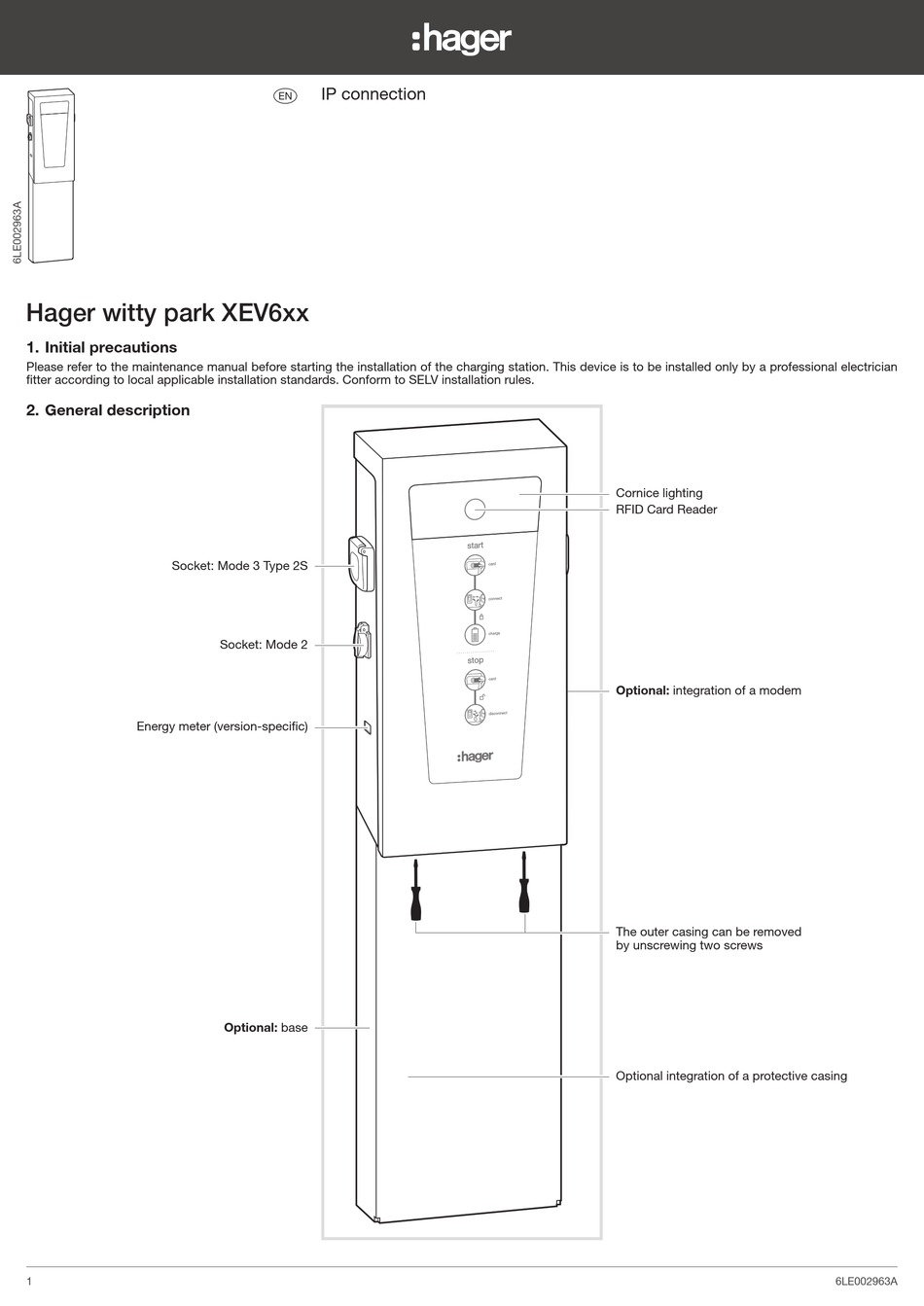

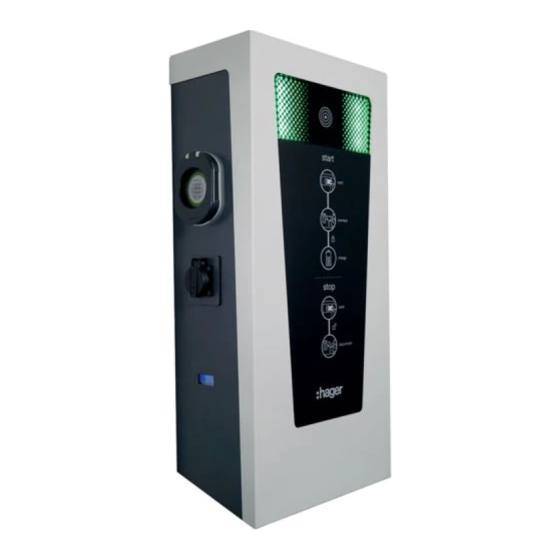

Hager witty park XEV6xx
1. Initial precautions
Please refer to the maintenance manual before starting the installation of the charging station. This device is to be installed only by a professional electrician
fitter according to local applicable installation standards. Conform to SELV installation rules.
2. General description
Socket: Mode 3 Type 2S
Energy meter (version-specific)
1
IP connection
z
Socket: Mode 2
Optional: base
Cornice lighting
RFID Card Reader
Optional: integration of a modem
The outer casing can be removed
by unscrewing two screws
Optional integration of a protective casing
6LE002963A

Advertisement

loading
Need help?

Need help?

Do you have a question about the XEV6 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for hager XEV6 Series

Summary of Contents for hager XEV6 Series

  • Page 1 IP connection Hager witty park XEV6xx 1. Initial precautions Please refer to the maintenance manual before starting the installation of the charging station. This device is to be installed only by a professional electrician fitter according to local applicable installation standards. Conform to SELV installation rules.

  • Page 2: Computer Connection

    3. Computer connection System Building TCP/IP Board INTERNET BOX Two-way communication: The port must be opened IP Address routing to be defi ned XEV6...C Ethernet cable, max. 100 m System Electrical cabinet TCP/IP Board MODEM ROUTER Two-way communication: The port must be opened IP Address routing to be defi ned XEV6...C Ethernet cable, max.
  • Page 3 4. Remote server towards terminal To communicate with the terminal, it is necessary to know the IP address of the terminal’s internet access point at all times, along with the internal routing to locate the terminal. Depending on the project, one of the following configurations will be prioritised. Remote server Electrical cabinet System...
  • Page 4 4.1.1 Configuration of the box (Example of a freebox revolution) Administrator interface: http://mafreebox.freebox.fr/ + password “Local Network” menu “Port forwarding” tab. (NAT rule, NAT virtual server or LAN server for other boxes) Definition of the external port = 80 for the box TCP Protocol IP Address = local address of the terminal= 192.168.120.120 for example Internal port = port of the terminal= 8080...
  • Page 5 4.2 Connection to a GPRS modem with static IP Remote server Electrical cabinet System Set the IP Address and Subnet GPRS – public SIM – IP known FAI static IP M2M SIM card Public & static IP Routing rule to be defined (APN &...
  • Page 6 4.2.2 Configure the Internet Network Access Point of the Modem “WAN/Cellular” tab. Network Credentials GSM paragraph APN Type = User Entry (the user defines the APN) User Entered APN = APN of your SIM card SIM PIN = option if your SIM card has a PIN code Confirm by: Apply Reboot the modem 4.2.3 Configuration of the terminal...
  • Page 7 4.3 Connection to a modem (ADSL or GPRS) with dynamic IP Remote server Electrical cabinet System ADSL – FAI Dynamic IP GPRS – public SIM – FAI Dynamic IP IP known Activate the DHCP Define the VPN Activate a VPN tunnel tunnel, APN (compatible with the chosen and DHCP server...

  • Page 8: Precautions For Assembly

    USB key provided with the terminals and on the Hager website of your country. Correct Disposal of this product (Waste Electrical &...
