Hager witty park XEV6xx
1. Initial precautions
Please refer to the maintenance manual before starting the installation of the charging station. The device is to be installed only by a professional electrician
fitter according to local applicable installation standards. Conform to SELV installation rules.

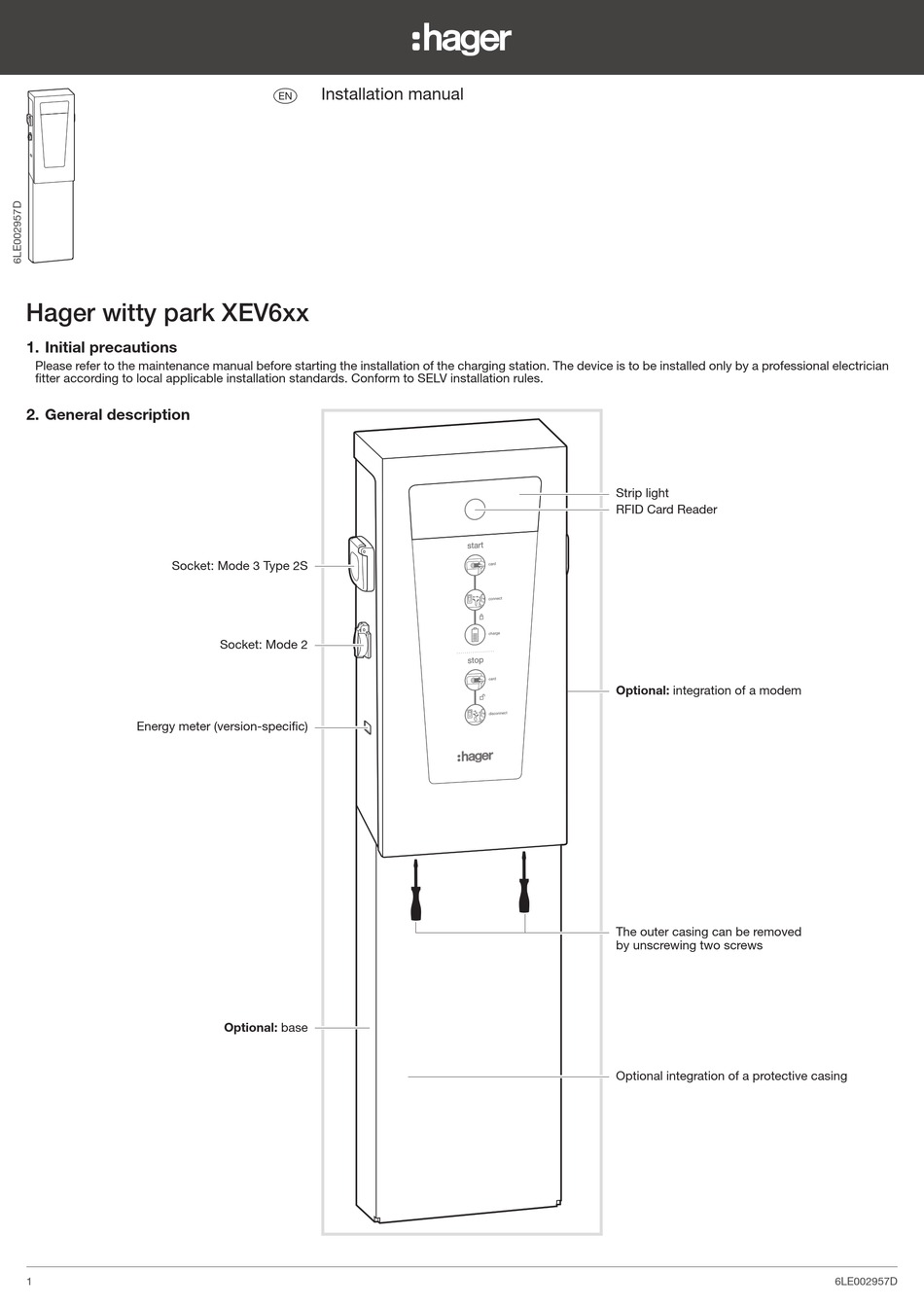

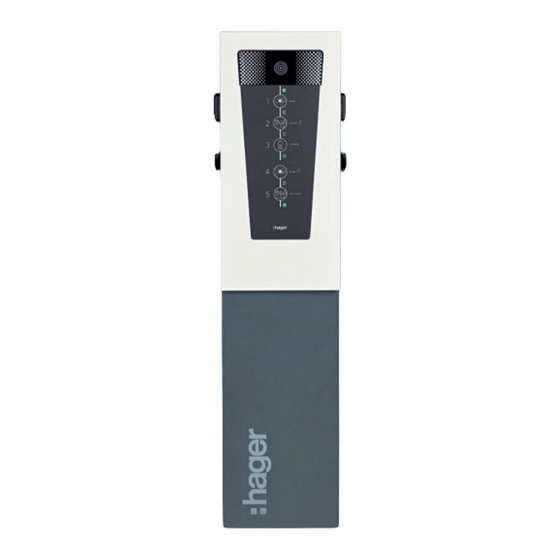

2. General description
Socket: Mode 3 Type 2S
Energy meter (version-specific)
1
Installation manual
z
Socket: Mode 2
Optional: base
Strip light
RFID Card Reader
Optional: integration of a modem
The outer casing can be removed
by unscrewing two screws
Optional integration of a protective casing
6LE002957D
