Printed Matter No. 9839 2054 01
Publication Date 2020-07-06
Valid from Serial No. A2390001
S8020-WS ( 2.9–19.6 cNm)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
4221000272
WARNING

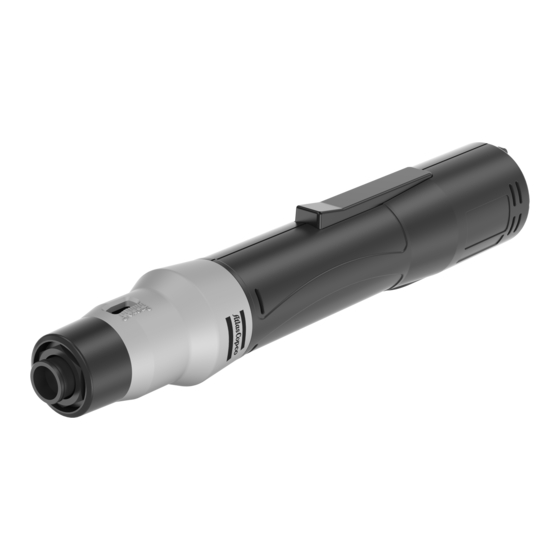

S8020-WS
Electric screwdriver
Product Instructions
Advertisement
Table of Contents
Related Manuals for Atlas Copco S8020-WS
Summary of Contents for Atlas Copco S8020-WS
- Page 1 Printed Matter No. 9839 2054 01 Electric screwdriver Publication Date 2020-07-06 Valid from Serial No. A2390001 Product Instructions S8020-WS ( 2.9–19.6 cNm) 4221000272 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Operating Instructions.................. 12 Tighten Joint .................. 12 Unscrew Joint .................. 13 Service ........................ 14 Preventing ESD Problems ................ 14 Maintenance Instructions................ 14 Service Recommendations.............. 14 Storage .................... 14 Troubleshooting.................... 15 Troubleshooting .................... 15 Recycling ....................... 16 Environmental Regulations................ 16 Recycling Information .................. 16 © Atlas Copco Industrial Technique AB - 9839 2054 01... -
Page 3: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 4: Servaid
Please visit: http://webbox.atlascopco.com/webbox/dimdrw or https://servaid.atlascopco.com. Overview Technical Product Data Technical Product Data can be found on either ServAid, or the Atlas Copco website. Please visit: https://servaid.atlascopco.com or www.atlascopco.com. Bit Grounding Test Bit grounding is measured by the ground circuit stability and resistance with the tool running at no load with a rotation speed of 1000 rpm. -
Page 5: Accessories
EBS D Power Adapter The EBS D Power Adapter is an accessory provided with the tool. Use this universal power source only with applicable screwdrivers (S8020, S8020-WS, S8050, S8120, S8120-2000, S8160, S8200 and S8250). Installation Position the power adapter on a stable surface and keep its surroundings clear to allow heat dissipation. - Page 6 To increase the speed, turn the speed setting screw clockwise (0 - 10) on the scale. ■ To decrease the speed, turn the speed setting screw counterclockwise (10 - 0) on the scale. © Atlas Copco Industrial Technique AB - 9839 2054 01...
- Page 7 Tightening OK. No light No DC voltage output. Flashing green light Short circuit protection. Overpower protection. Red light Tightening NOT OK. Flashing red light Heating protection (temperature set at 75-85 °C). © Atlas Copco Industrial Technique AB - 9839 2054 01...
-
Page 8: Service Overview
If the product is not working properly, take it out of service and inspect it. If no detailed information about preventive maintenance is included, follow these general guide- lines: ■ Clean appropriate parts accurately ■ Replace any defective or worn parts © Atlas Copco Industrial Technique AB - 9839 2054 01... -
Page 9: Installation
■ If required, hang the tool securely, for example from a balancer. NOTICE Make sure the cable is not bent more than a radious of 55 mm (2.2 in). © Atlas Copco Industrial Technique AB - 9839 2054 01... - Page 10 Installation S8020-WS © Atlas Copco Industrial Technique AB - 9839 2054 01...
-
Page 11: Operation
To insert the bit, do the following: Press the slide sleeve into the tool. Insert the bit. Release the slide sleeve to engage the bit. Do not hammer the bit or pull it out by force. © Atlas Copco Industrial Technique AB - 9839 2054 01... -
Page 12: Torque Settings
If the tightening process is performed incorrectly, the power adapter will show a red light. Do not change the running direction of the screwdriver while in operation, wait until the tool has stopped. © Atlas Copco Industrial Technique AB - 9839 2054 01... -
Page 13: Unscrew Joint
Press the trigger and hold it firmly until the joint is completely loosen. The trigger must be pressed during the whole unscrewing process. Do not change the running direction of the screwdriver while in operation, wait until the tool has stopped. © Atlas Copco Industrial Technique AB - 9839 2054 01... -
Page 14: Service
If the unit is to be stored for a long period of time, do the following: Disconnect the power adapter and remove the bit. Open the carbon brush cover and blow out any accumulated carbon brush dust with compressed air. Wipe clean the exterior components. © Atlas Copco Industrial Technique AB - 9839 2054 01... -
Page 15: Troubleshooting
Change the torque of the screw- revolutions plunge rapidly while fas- driver to a higher level or reduce tening. the fastening frequency to prolong the life span of the screwdriver. © Atlas Copco Industrial Technique AB - 9839 2054 01... -
Page 16: Recycling
Batteries shall be taken care of by your national battery recovery organization. Recycling Information Pos. Part Recycle as Front part Plastic Drive unit Electronics Gear housing Plastic Trigger Plastic Metal, Steel Handle complete Plastic Motor complete Electronics Handle complete Plastic © Atlas Copco Industrial Technique AB - 9839 2054 01... - Page 20 Original instructions © Copyright 2020, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
