Printed Matter No. 9839 0981 01
Publication Date 2020-01-15
Valid from Serial No. -
ETV STB34-30-10-B (6-30 Nm)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
ETV STB34-30-10-B
8433302034
WARNING

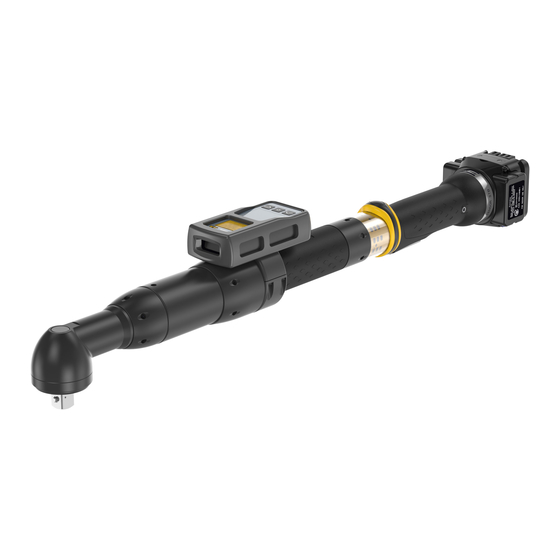

Battery-Powered Nutrunner
Product Instructions
Advertisement
Table of Contents
Related Manuals for Atlas Copco ETV STB34-30-10-B
Summary of Contents for Atlas Copco ETV STB34-30-10-B
- Page 1 Printed Matter No. 9839 0981 01 Battery-Powered Nutrunner Publication Date 2020-01-15 Valid from Serial No. - Product Instructions ETV STB34-30-10-B (6-30 Nm) 8433302034 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Preventive maintenance ................ 9 Overhaul .................... 9 Lubrication instructions ................... 10 Lubricating guide ................. 10 Lubrication ................... 10 Troubleshooting.................... 11 Trouble-shooting..................... 11 If the tool becomes abnormally hot............ 11 Recycling ....................... 12 Recycling instruction.................. 12 Recycling information ETV STB .............. 12 © Atlas Copco Industrial Technique AB - 9839 0981 01... -
Page 3: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 4: Website
ServAid is available on DVD and on the website: https://servaid.atlascopco.com For further information contact your Atlas Copco sales representative or e-mail us at: servaid.support@se.atlascopco.com Website Log in to Atlas Copco: www.atlascopco.com. -
Page 5: Service Overview
If the product is not working properly, take it out of service and inspect it. If no detailed information about preventive maintenance is included, follow these general guidelines: ■ Clean appropriate parts accurately ■ Replace any defective or worn parts © Atlas Copco Industrial Technique AB - 9839 0981 01... -
Page 6: Installation
POWER FOCUS will update the stored value in the tool. Model Battery ETV STB32/33/34 Li-ion 18V / 2.6Ah ETV STB62/63/64 Li-ion 30V / 2.6Ah ETP STB32/33/34 Li-ion 18V / 2.6Ah © Atlas Copco Industrial Technique AB - 9839 0981 01... -
Page 7: Operation
ETP: Check that the tool is in the correct running direction by pushing the revers switch. The soft-start function facilitates entering the screw head and thread. The duration of the soft start is adjustable, see the manual for the POWER FOCUS/ drive unit. © Atlas Copco Industrial Technique AB - 9839 0981 01... -
Page 8: Removal Of Battery Pack
Battery LED: Indicates battery status (flashing light for low and fixed light for empty battery) ■ Batch LED: Indicated Batch done ■ Alarm LED: A failure/event is detected Removal of Battery Pack © Atlas Copco Industrial Technique AB - 9839 0981 01... -
Page 9: Service
If it is judged that the electric motor is defect or in need of service, the complete motor unit should be re- turned to Atlas Copco Tools for exchange. Motors which have been opened by anyone else than Atlas Copco Tools will not be serviced. Overhaul and preventive maintenance is recommended at regular intervals once per year or after maxi- mum 250.000 tightening depending on which occurs sooner. -
Page 10: Lubrication Instructions
LE 3751 Lubrication Lubricate specially gears and clutch with grease containing molybdenum disulphide (e.g. Molykote BR2 Plus). Please see exploded views. Lubricate o-rings and threaded connections with grease before assem- bling. © Atlas Copco Industrial Technique AB - 9839 0981 01... -
Page 11: Troubleshooting
■ torque above rated ■ too low speed ■ very high prevailing torque ■ very soft joints ■ short cycle time © Atlas Copco Industrial Technique AB - 9839 0981 01... -
Page 12: Recycling
Metal, Steel Planetary gear Metal, Steel Metal, Steel Planetary gear Metal, Steel Planetary gear Metal, Steel Torque transducer Electronic Motor Electronic Metal, Steel Insulation hose Plastic, Other, TPU Metal, Steel © Atlas Copco Industrial Technique AB - 9839 0981 01... - Page 13 Trigger button Metal, Steel Handle Plastic, Other PA Metal, Steel Metal, Steel Battery holder Metal, Aluminum Electronics module Electronic Battery (and back up bat- Battery, Li-lon tery for STB 34/ 64) © Atlas Copco Industrial Technique AB - 9839 0981 01...
- Page 16 Original instructions © Copyright 2020, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
