Printed Matter No. 9839 0852 01
Publication Date 2020-05-18
Valid from Serial No. A9540001
Valid to Serial No. A2549999
ETP SRB 31-20-10
(5-20 Nm)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
ETP SRB 31-20-10
8433327030
WARNING

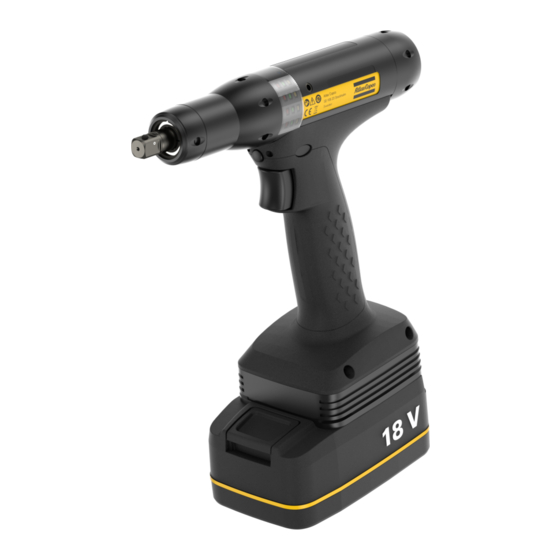

Battery-Powered Nutrunner
Product Instructions
Advertisement
Table of Contents
Related Manuals for Atlas Copco ETP SRB 31-20-10
Summary of Contents for Atlas Copco ETP SRB 31-20-10
- Page 1 ETP SRB 31-20-10 Printed Matter No. 9839 0852 01 Battery-Powered Nutrunner Publication Date 2020-05-18 Valid from Serial No. A9540001 Product Instructions Valid to Serial No. A2549999 ETP SRB 31-20-10 8433327030 (5-20 Nm) WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Configuration Instructions ................ 11 Tightening Programs ................ 11 Operating Instructions.................. 11 LED Indicator Flash Patterns............... 11 Tightening.................... 12 Buzzer .................... 13 Service ........................ 14 Preventing ESD Problems ................ 14 Maintenance Instructions................ 14 Service Recommendations.............. 14 Overhaul .................... 14 Lubrication Instructions................... 15 Lubricating Guide ................ 15 © Atlas Copco Industrial Technique AB - 9839 0852 01... - Page 3 Lubrication ................... 15 Repair Instructions.................. 15 Spare Parts Replacement .............. 15 Updating the Tool Software ................ 15 Troubleshooting.................... 16 Overheated Tool ..................... 16 Events and Error Codes ................. 16 Recycling ....................... 17 Environmental Regulations................ 17 Recycling Instruction.................. 17 © Atlas Copco Industrial Technique AB - 9839 0852 01...
-
Page 4: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 5: Servaid
Please consult the Atlas Copco website for more information www.atlascopco.com/sds. Product Safety Video for Nutrunners Learn more about safety features on Atlas Copco nutrunners and what measures the operator has to take for a safe operation. Click the link or scan the QR code below to view the video: https://www.youtube.com/watch?v=FAh6yttvUpw... -
Page 6: Tool Functionality
The tool is equipped with LED indicators (HMI) that can be configured to output signals related to events, and a buzzer. There are also a number of standard LED warning configurations programmed into the tool. © Atlas Copco Industrial Technique AB - 9839 0852 01... -
Page 7: Memory Capacity
For more information, see LED Indicator Flash Patterns. Memory Capacity The tool can log up to 2000 results in the tool. Technical Product Data Technical Product Data can be found on either ServAid, or the Atlas Copco website. Please visit: https://servaid.atlascopco.com or www.atlascopco.com. -
Page 8: Service Overview
If the product is not working properly, take it out of service and inspect it. If no detailed information about preventive maintenance is included, follow these general guide- lines: ■ Clean appropriate parts accurately ■ Replace any defective or worn parts © Atlas Copco Industrial Technique AB - 9839 0852 01... -
Page 9: Installation
Use the tool designation of the new part to update the tool. Since the tool has been converted, the tool information stored on the tool will no longer match the tool designation on the tool sign. © Atlas Copco Industrial Technique AB - 9839 0852 01... -
Page 10: Attaching And Removing The Battery
To configure the tool, see Power Focus 6000 Configuration manual or ToolsTalk Service 2 User Edition user guide. Tool Calibration For information on tool calibration for this tool, see Power Focus 6000 Configuration manual or ToolsTalk Service 2 User Edition user guide. © Atlas Copco Industrial Technique AB - 9839 0852 01... -
Page 11: Operation
Operating Instructions LED Indicator Flash Patterns Apart from the LED flash patterns determined by the controller, there are a number of standard flash pat- terns for the tool LED indicators. © Atlas Copco Industrial Technique AB - 9839 0852 01... -
Page 12: Tightening
The soft start function facilitates the screwhead and thread to reach the snug level. The duration of the soft start is adjustable. For further information about tightening, see Power Focus 6000 Configuration manual. © Atlas Copco Industrial Technique AB - 9839 0852 01... -
Page 13: Buzzer
This tool is equipped with a buzzer, which can be configured to signal specific events or warnings. For more information on the buzzer functionality and configuration, see Power Focus 6000 Configuration Manual. © Atlas Copco Industrial Technique AB - 9839 0852 01... -
Page 14: Service
If it is judged that the electric motor is defect or in need of service, the complete motor unit should be re- turned to Atlas Copco Industrial Technique AB for exchange. Motors which have been opened by anyone else than Atlas Copco Industrial Technique AB will not be ser- viced. -
Page 15: Lubrication Instructions
Do not remove the battery from the tool while the software update is in progress. ■ Do not remove the memory card from the tool while the software update is in progress. © Atlas Copco Industrial Technique AB - 9839 0852 01... - Page 16 ■ very soft joints ■ ambient temperature Events and Error Codes For a full list of tool event and error codes, see Power Focus 6000 Configuration Manual. © Atlas Copco Industrial Technique AB - 9839 0852 01...
- Page 17 When a product has served its purpose it has to be recycled properly. Dismantle the product and recycle the components in accordance with local legislation. Batteries shall be taken care of by your national battery recovery organization. Recycling Instruction © Atlas Copco Industrial Technique AB - 9839 0852 01...
- Page 18 Handle Left Plastic, other, PA Screw Metal, steel Screw Metal, steel Antennas 2 pcs Electronics Battery holder Metal, aluminum Back up battery Battery, Li-ion Power module Electronics Screw Metal, steel © Atlas Copco Industrial Technique AB - 9839 0852 01...
- Page 20 Original instructions © Copyright 2020, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
