Q u i c k G u i d e :
of some other event in Unison, or monitoring a zones level).
Communication between the station and the serial host
• Use a standard RS232 straight-through cable.
• Station 9 pin "D style" connector pinout: pin 2 - transmit data (TX), pin 3 - receive data (RX),
pin 5 - Common
• Com port settings are 9600 baud, 8 bits, no parity 1 stop bit, and Xon/Xoff flow control.
Station Configur ation with a Comp uter Examp le
• Connect your computer to the station with a standard RS232 straight-through cable.
•
• Use a communications terminal application, such as Hyper Terminal, to interface with the
station.
• Com port settings are 9600 baud, 8 bits, no parity, 1 stop bit, and Xon/Xoff flow control.

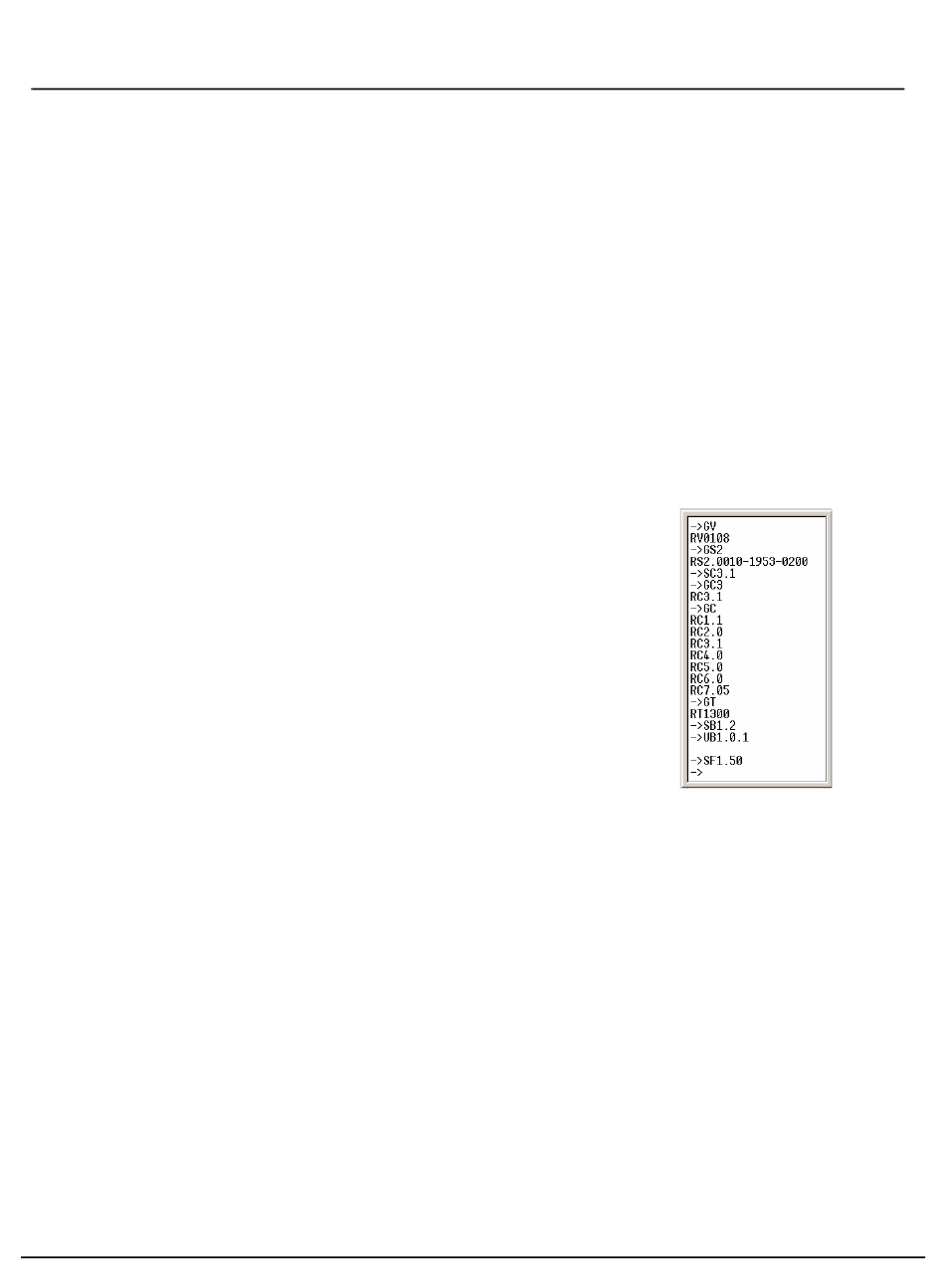

Sample commands:

Commands are terminated with carriage return:
• SC 1.1 (Turn on echo mode)
•
• GV (Get version number)
•
• GS2 (Get neuron ID)
•
• SC3.1 (Set level and fader scale to 0-100, or percentages)
• GC3 (Get configuration index 3's value)
• GC (Get all of the configuration values)
•
• GT (Get the station type)
•
• SB1.2 (Set button 1 - execute a toggle)
•
• SF1.50 (Set fader 1 to a level of 50)
•
Uni son AV/ Se r ia l I nt er f ac e v1 .1 . 0 Qui ck Gui de
Unison AV/Serial Interface v1.1.0 Quick Guide
Station 9-pin "D" style connector pinout: pin 2 - Transmit data (TX), pin 3- Receive data
(RX), pin 5 - Common.
You won't see anything when you type until echo mode is
turned on. Default is off - see
on page 7)
See Protocol Version (pv) on page
See Station Status (ss) on page
See Configuration Settings (nn.cf) on page
See Station Type (st) on page
See Button States (bs) on page
See Level (ll) on page 6
Configuration Settings (nn.cf)
6)
6)
7)
8)
5)
and Fade Rate (rr.dd) on page
Pa ge 4 of 10
6)
