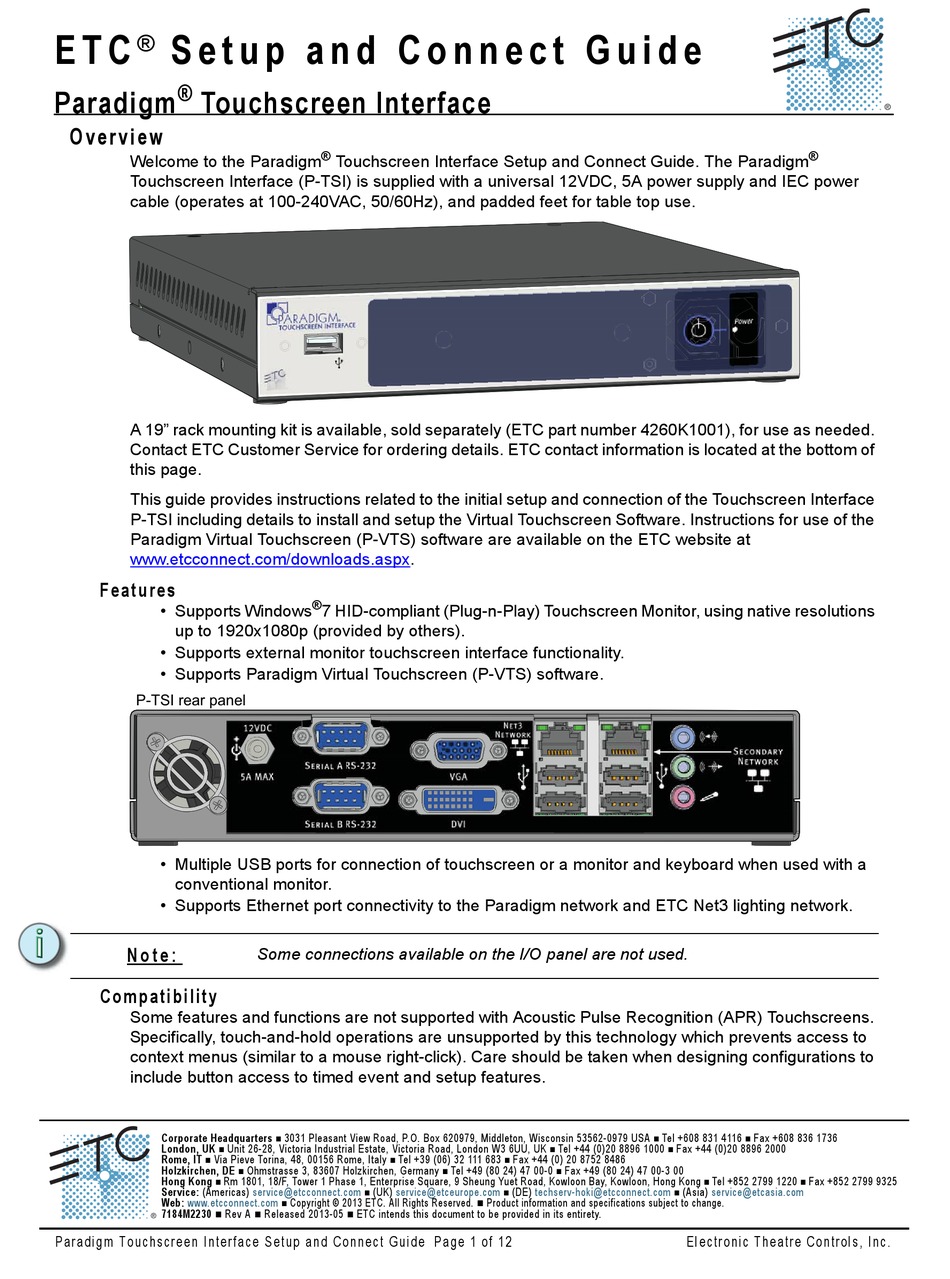

E T C S e t u p a n d C o n n e c t G u i d e
®
®
Paradigm Touchscreen Interface
O v e r v i e w
Welcome to the Paradigm
Touchscreen Interface (P-TSI) is supplied with a universal 12VDC, 5A power supply and IEC power
cable (operates at 100-240VAC, 50/60Hz), and padded feet for table top use.
A 19" rack mounting kit is available, sold separately (ETC part number 4260K1001), for use as needed.
Contact ETC Customer Service for ordering details. ETC contact information is located at the bottom of
this page.
This guide provides instructions related to the initial setup and connection of the Touchscreen Interface
P-TSI including details to install and setup the Virtual Touchscreen Software. Instructions for use of the
Paradigm Virtual Touchscreen (P-VTS) software are available on the ETC website at
www.etcconnect.com/downloads.aspx.
Features
• Supports Windows
up to 1920x1080p (provided by others).
• Supports external monitor touchscreen interface functionality.
• Supports Paradigm Virtual Touchscreen (P-VTS) software.
P-TSI rear panel
• Multiple USB ports for connection of touchscreen or a monitor and keyboard when used with a
conventional monitor.
• Supports Ethernet port connectivity to the Paradigm network and ETC Net3 lighting network.
N o t e :
Compatibility
Some features and functions are not supported with Acoustic Pulse Recognition (APR) Touchscreens.
Specifically, touch-and-hold operations are unsupported by this technology which prevents access to
context menus (similar to a mouse right-click). Care should be taken when designing configurations to
include button access to timed event and setup features.
Corporate Headquarters
London, UK Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK

Rome, IT Via Pieve Torina, 48, 00156 Rome, Italy

Holzkirchen, DE
Hong Kong Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong

Service: (Americas)
Web: www.etcconnect.com
7184M2230 Rev A

Par ad ig m To uch scr e en I nt e rf a ce Set u p an d Con nec t Gu id e Pa ge 1 of 12
®
Touchscreen Interface Setup and Connect Guide. The Paradigm
®
7 HID-compliant (Plug-n-Play) Touchscreen Monitor, using native resolutions
Some connections available on the I/O panel are not used.
3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA

Tel +39 (06) 32 111 683

Ohmstrasse 3, 83607 Holzkirchen, Germany

service@etcconnect.com (UK) service@etceurope.com

Copyright © 2013 ETC. All Rights Reserved.

Released 2013-05 ETC intends this document to be provided in its entirety.
 
