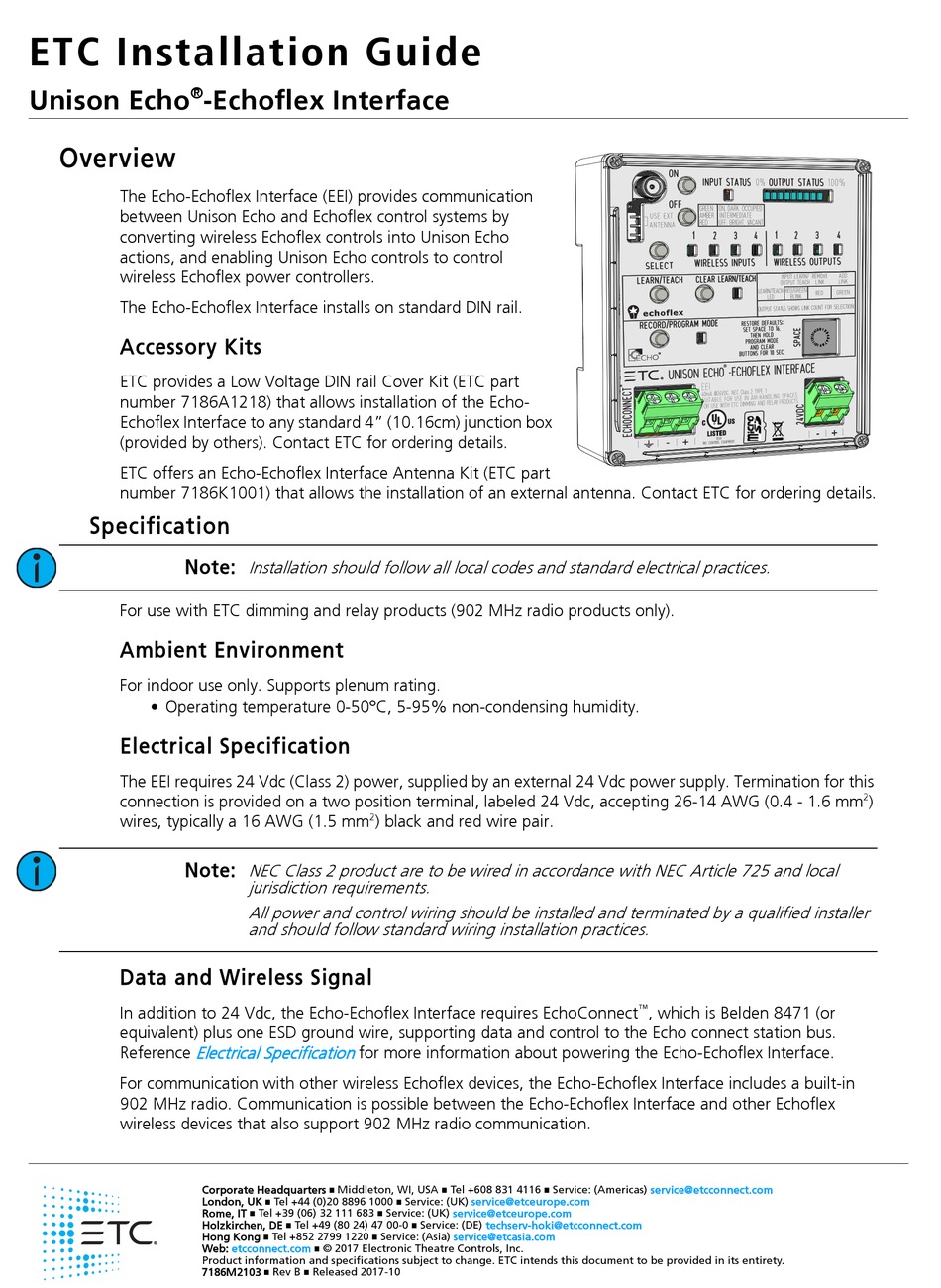

ETC Installation Guide
®
Unison Echo
-Echoflex Interface
Overview
The Echo-Echoflex Interface (EEI) provides communication
between Unison Echo and Echoflex control systems by
converting wireless Echoflex controls into Unison Echo
actions, and enabling Unison Echo controls to control
wireless Echoflex power controllers.
The Echo-Echoflex Interface installs on standard DIN rail.
Accessory Kits
ETC provides a Low Voltage DIN rail Cover Kit (ETC part
number 7186A1218) that allows installation of the Echo-
Echoflex Interface to any standard 4" (10.16cm) junction box
(provided by others). Contact ETC for ordering details.
ETC offers an Echo-Echoflex Interface Antenna Kit (ETC part
number 7186K1001) that allows the installation of an external antenna. Contact ETC for ordering details.
Specification
Note:
For use with ETC dimming and relay products (902 MHz radio products only).
Ambient Environment
For indoor use only. Supports plenum rating.
• Operating temperature 0-50°C, 5-95% non-condensing humidity.
Electrical Specification
The EEI requires 24 Vdc (Class 2) power, supplied by an external 24 Vdc power supply. Termination for this
connection is provided on a two position terminal, labeled 24 Vdc, accepting 26-14 AWG (0.4 - 1.6 mm
wires, typically a 16 AWG (1.5 mm
Note:
Data and Wireless Signal
In addition to 24 Vdc, the Echo-Echoflex Interface requires EchoConnect
equivalent) plus one ESD ground wire, supporting data and control to the Echo connect station bus.
Electrical Specification
Reference
For communication with other wireless Echoflex devices, the Echo-Echoflex Interface includes a built-in
902 MHz radio. Communication is possible between the Echo-Echoflex Interface and other Echoflex
wireless devices that also support 902 MHz radio communication.
Corporate Headquarters
London, UK
Rome, IT
Holzkirchen, DE
Hong Kong
Web:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7186M2103
Installation should follow all local codes and standard electrical practices.
2
) black and red wire pair.
NEC Class 2 product are to be wired in accordance with NEC Article 725 and local
jurisdiction requirements.
All power and control wiring should be installed and terminated by a qualified installer
and should follow standard wiring installation practices.
for more information about powering the Echo-Echoflex Interface.
Middleton, WI, USA
Tel +44 (0)20 8896 1000
Service: (UK)
Tel +39 (06) 32 111 683
Service: (UK)
Tel +49 (80 24) 47 00-0
Tel +852 2799 1220
Service: (Asia)
etcconnect.com
© 2017 Electronic Theatre Controls, Inc.
Rev B
Released 2017-10
Tel +608 831 4116
Service: (Americas)
service@etceurope.com
service@etceurope.com
Service: (DE)
techserv-hoki@etcconnect.com
service@etcasia.com
, which is Belden 8471 (or
service@etcconnect.com
2
)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Echo-Echoflex Interfacу and is the answer not in the manual?

Questions and answers

Summary of Contents for ETC Echo-Echoflex Interfacу

  • Page 1 Tel +852 2799 1220 Service: (Asia) service@etcasia.com   Web: etcconnect.com © 2017 Electronic Theatre Controls, Inc.  Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7186M2103 Rev B Released 2017-10  ...
  • Page 2 EEI to the Echoflex wireless stations and controllers. Additionally, ETC requires that the total combined length of an EchoConnect data run (using Belden 8471 or equivalent) must not exceed 1,640 feet (500 m). This requirement should be considered when determining the location of the Echo-Echoflex Interface for installation.
  • Page 3: Installation

    ETC Installation Guide Echo-Echoflex Interface Installation Install Interface to DIN rail Ensure the section of DIN rail to be used is mounted securely according to the manufacturers requirements. DIN rail is provided by others. Hook the bottom of the EEI under the lower DIN rail as shown.
  • Page 4: Power Up And Operation

    ETC Installation Guide Echo-Echoflex Interface Set Space The EEI participates in an Unison Echo Control system using the configured Space, which is selectable using the rotary switch on the front of the unit. Set the Space rotary switch to the desired Space number for this controller.
  • Page 5: Input Status

    ETC Installation Guide Echo-Echoflex Interface Learn/Teach The [LEARN/TEACH] button links Echoflex wireless devices to the EEI. • When a wireless input is selected, pressing the [LEARN/TEACH] button “Learns” Echoflex devices that are in “Teach” mode to the wireless input. • When a wireless output is selected, pressing the [LEARN/TEACH] button “Teaches” the wireless output to Echoflex Controllers that are in “Learn”...
  • Page 6: Output Status

    ETC Installation Guide Echo-Echoflex Interface Keycard Station - Green - while keycard is inserted - Red - while keycard is removed Note: When no Echoflex devices are linked to an Input, the [ON] and [OFF] buttons will behave like a wireless Switch Station. The INPUT STATUS LED will also reflect use of the local [ON] and [Off] buttons as green and red respectively.
  • Page 7 ETC Installation Guide Echo-Echoflex Interface Manual Control ON/OFF Buttons Manual Control of Wireless Inputs When a wireless input is selected, the Manual Control [ON] and [OFF] buttons on the EEI initiate events depending on the linked Echoflex device input type Manual control of wireless inputs simulate the event action on both the linked Echoflex control system and the Unison Echo control system.
  • Page 8 ETC Installation Guide Echo-Echoflex Interface Echoflex Photo Sensor Push Press and release the button. - On – Preset activation for the Dark action. - Off – Space Off for the Bright action. Hold Press and hold the button. - Hold On – Space Raise - Hold Off –...
  • Page 9 ETC Installation Guide Echo-Echoflex Interface Manual Control of Wireless Outputs When a wireless output is selected, the Manual Control [ON] and [OFF] buttons allow manual level control of the selected wireless output and its linked Echoflex devices. Manual control of wireless outputs simulate the event action only on the linked Echoflex control system, and only for the zone that is associated with the selected wireless output and the linked Echoflex wireless device(s).
  • Page 10 ETC Installation Guide Echo-Echoflex Interface On the Echoflex wireless device, press the [TEACH] button, or for switch stations press the station On button three times to link the device to the selected Echoflex Input. When the Echoflex device links to the EEI, the INPUT STATUS LED will indicate solid green for four seconds.
  • Page 11: Program Mode

    ETC Installation Guide Echo-Echoflex Interface Program Mode Echo Program Mode is used to adjust which Echo Presets are controlled by wireless inputs as well as which Echo Zones are associated with wireless outputs. Enter Program Mode by pressing and holding the [RECORD/PROGRAM MODE] button for three seconds.
  • Page 12 ETC Installation Guide Echo-Echoflex Interface Assigning Echo Zones to Wireless Outputs The OUTPUT STATUS LED's displays the assigned Zone number associated with the selected wireless output as a count of lit LEDs. Zone assignment of wireless outputs allows combined control of Echoflex devices with Echo zones that are configured for the same Space.
  • Page 13: Settings Configuration

    ETC Installation Guide Echo-Echoflex Interface Settings Configuration Occupancy Sensor Input Settings The Occupancy Sensor Input provides menu access to change occupancy timeout and auto-on behavior from the default behaviors. Use the [SELECT] button to select the Echo input channel that has an occupancy sensor linked to it.
  • Page 14: Restore Defaults

    ETC Installation Guide Echo-Echoflex Interface Keycard Input Settings Use the [SELECT] button to select the Echo input that has a keycard sensor linked to it. Press and hold the ON and OFF buttons for five seconds, until the Echo input status LED starts blinking RED.
  • Page 15 ETC Installation Guide Echo-Echoflex Interface Special EnOcean Functions To configure the repeater functionality, hold the [CLEAR] button and tap [LEARN/TEACH] a number of times to select desired repeater functionality: one tap - Repeater disabled two taps - Repeater 1 hop...
