FortiGate-7000F chassis
chassis fabric backplane and two 50Gbps management connections to the FIMs over base backplane. FPM-7620Fs are
installed in chassis slots 3 and up.
The FPM-7620F also includes two front panel 100GigE QSFP28 fabric channel data interfaces (1 and 2) and eight
10/25GigE SFP28 fabric channel data interfaces (3 to 10). Interfaces 1 and 2 can be connected to 100Gbps data
networks. Interfaces 3 to 10 can be connected to 25Gbps data networks. FPM data network interfaces increase the
number of data interfaces supported by FortiGate-7000F. Data traffic received by these interfaces is sent over the fabric
backplane to the FIM NP7 processors to be load balanced back to the FPMs.
The FPM-7620F processes sessions using a dual CPU configuration, accelerates network traffic processing with two
NP7 processors and accelerates content processing with eight CP9 processors. The NP7 network processors are
connected by the FIM switch fabric so all supported traffic types can be fast path accelerated by the NP7 processors.

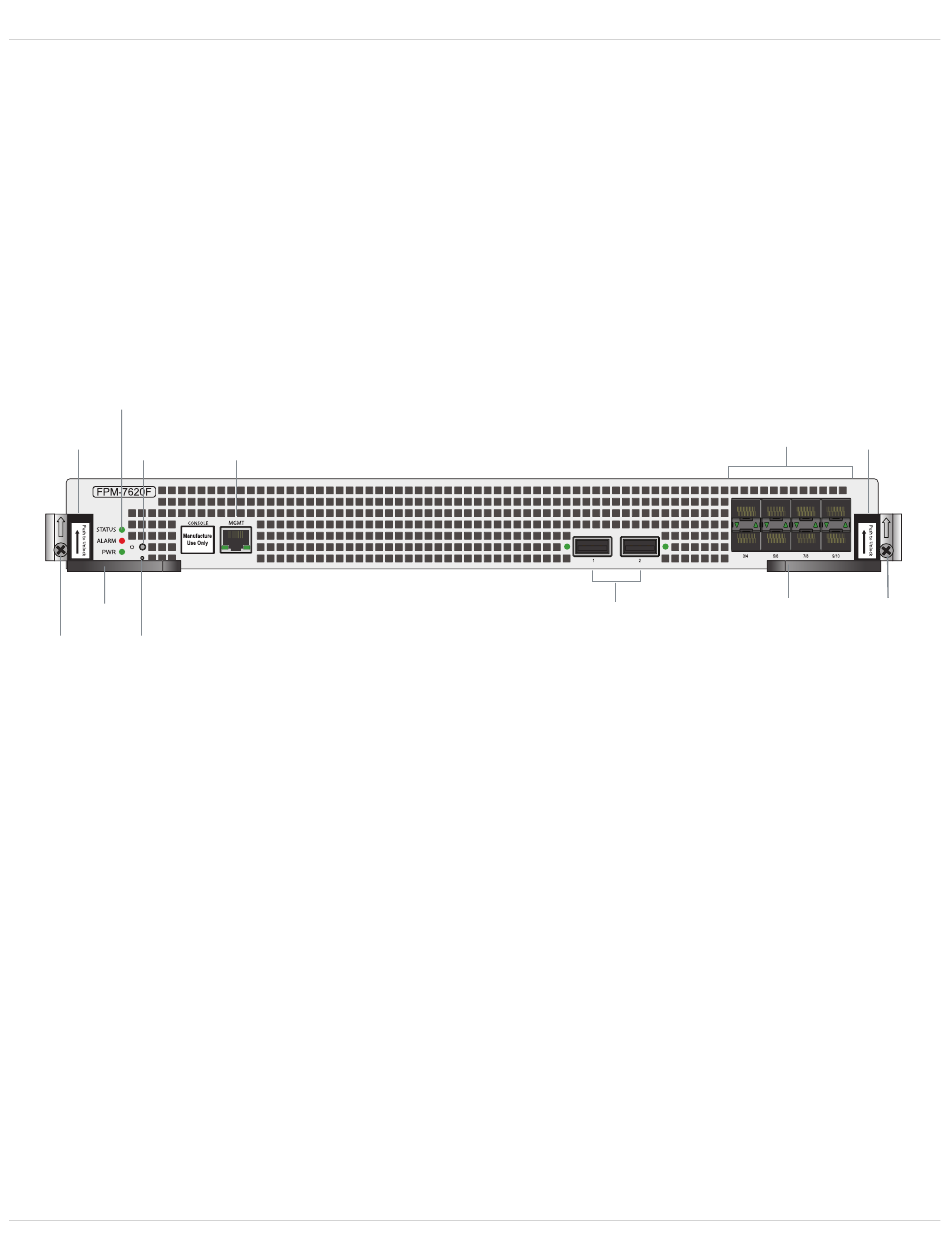

FPM-7620F front panel
Status, Alarm,
and Power LEDS
Power
Power
Slider
Button
Module
Lever
Secure NMI
Screw Button

FortiGate-7000F back panel

The FortiGate-7000F back panel provides access to six hot swappable cooling fan trays and the chassis ground
connector that must be connected to ground.
FortiGate-7121F System Guide
MGMT
10/100/1000BASE-T
copper management
interface
25/10GigE fabric channel
SFP28 data network
1 and 2
100/40GigE fabric channel
QSFP28 data network
interfaces
Fortinet Technologies Inc.
3 to 10
Power
interfaces
Slider
Module Secure
Lever Screw
9
