FortiGate-7000F hardware assembly and rack mounting

Mounting the FortiGate-7000F chassis in a two-post rack

The FortiGate-7000F package includes two mid mount trays and two mid-mount brackets that you can use to mount the

chassis in a 2-post rack. As shown in the diagram, first attach the mid-mounting brackets to the chassis, them attach the

mid mount trays to the rack, making sure to leave enough space above the trays for the chassis. Then place the chassis

on the mid-mount tray. T hen, use rack mount screws to attach the mid-mount brackets to the rack posts, securing the

chassis in the rack.

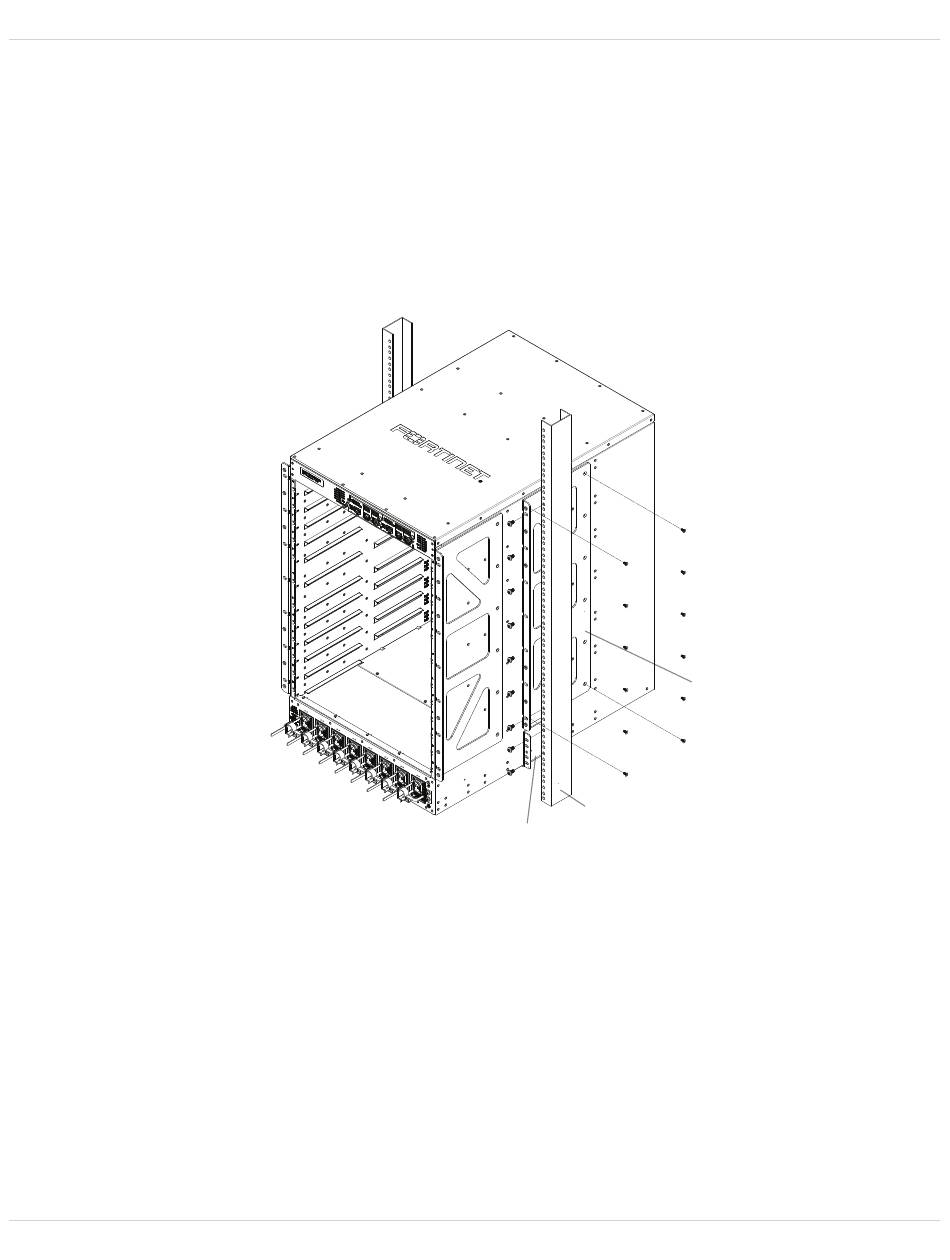

Mounting the chassis in a 2-post rack

4. Secure the chassis

by attaching the mid

mounting brackets to the

rack posts.

Both sides, use rack mount screws

(not provided).

3. Place the chassis on

the mid mount tray.

FortiGate-7121F System Guide

Rack posts

2. Attach the mid mount tray

to the rack posts.

Both sides, use rack mount screws (not provided).

Fortinet Technologies Inc.

1. Attach the mid mount

ears to the chassis

Both sides, use M4x8 flat-head

screws.
