FortiGate-7000F hardware assembly and rack mounting
Cable bracket kit
You can install the optional cable bracket kit to help manage the network cables connected to FIMs and FPMs installed
in the FortiGate-7000F. Attach the cable bracket kit t o the left and right front mounting brackets.
The cable bracket kit includes horizontal cable mount levers that must be installed after the cable kit brackets are
attached to the left and right mounting brackets. Once the mount levers are installed you can attach network cables to
them.

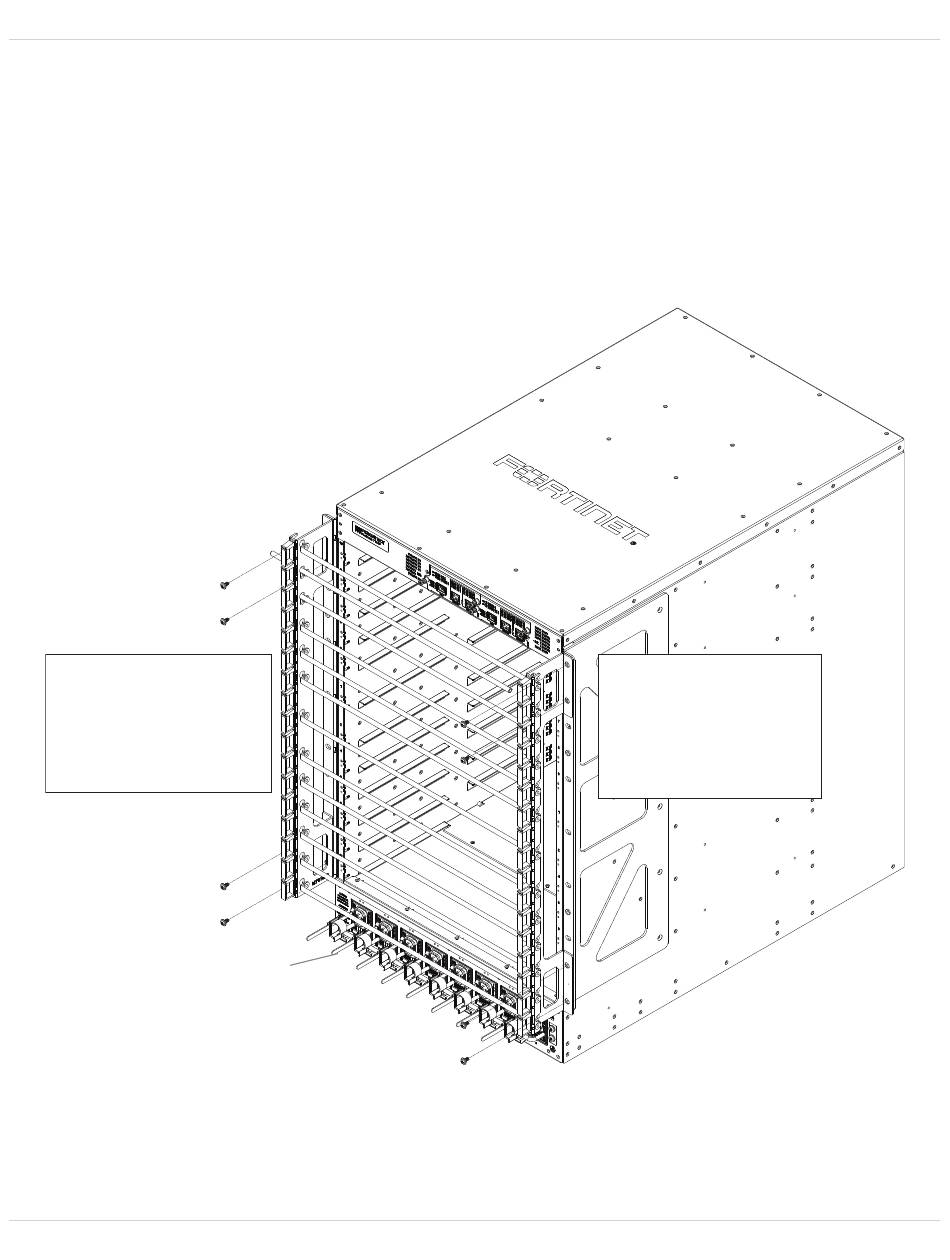

Installing the cable bracket kit
Attach the left cable
bracket to the top and
bottom of the left side
mounting bracket using
four M4x8 large
pan-head screws
Power cord
FortiGate-7121F System Guide
clamps
Fortinet Technologies Inc.
Attach the right cable
bracket to the top and
bottom of the right side
mounting bracket using
four M4x8 large
pan-head screws.
