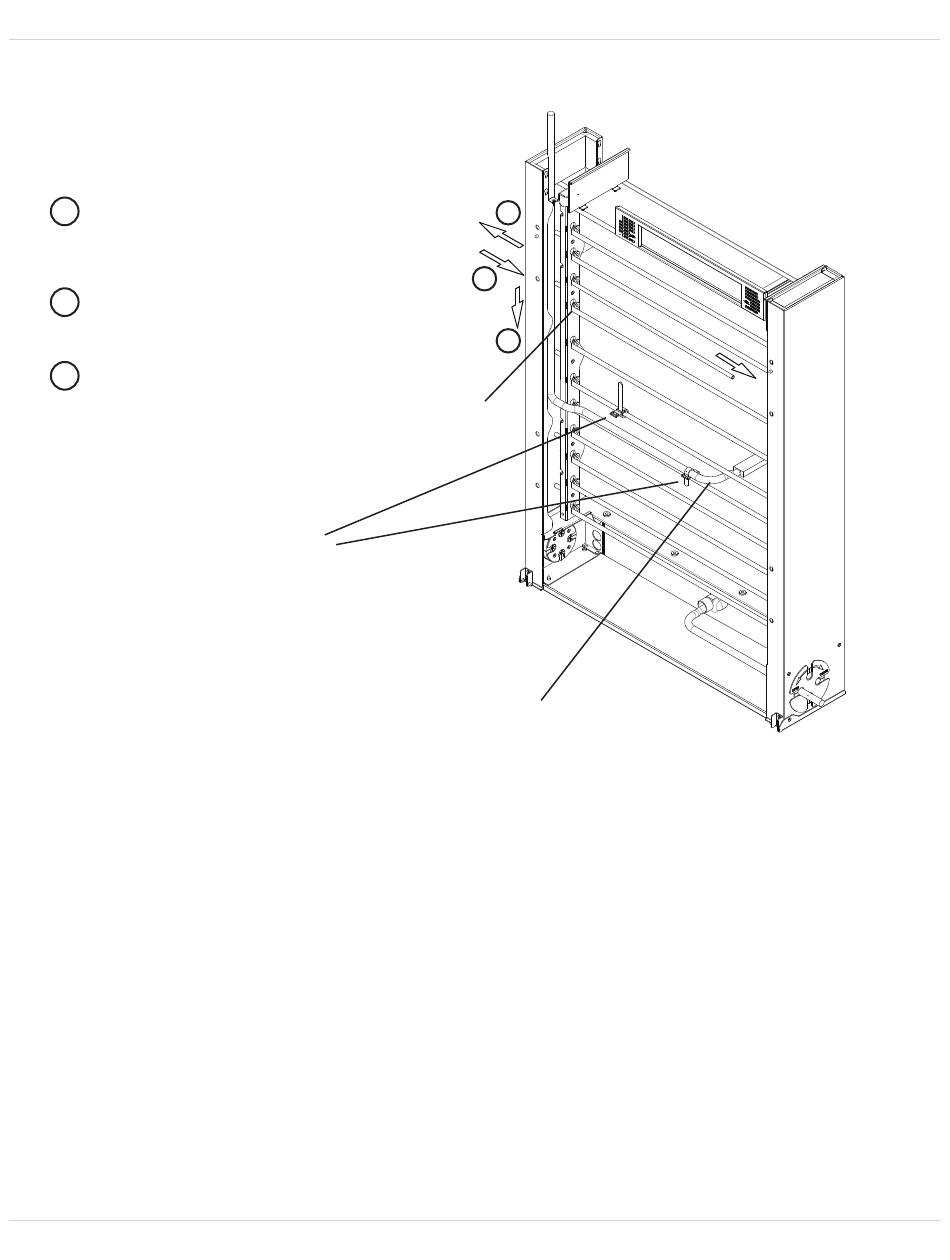

Installing horizontal cable mount levers
From the inside, insert the mount
1
lever through the top hole in the side
bracket and extend it a short distance
past the side bracket.
2
Insert the other end of the mount
lever into the top hole in the bracket
on the other side of the chassis.
Press the mount lever down until
3
held in place by the rubber retainer
in each bracket.
Cable management
Attach cable ties to the mount levers.
Tie cables to the mount lever
using the second round of the
cable tie.

Power cord clamps

You can install power cord clamps onto the front of the chassis beside each PSU. Install the clamps by inserting them
into the holes adjacent each PSU. Use the clamps to secure the AC power cords so they are not accidentally
disconnected.
FortiGate-7121F System Guide
Rubber
retainer
Maintain a greater than 1-inch
(2.5-cm) network cable
bend radius
1
2
3
Managing AC power cords
1. Connect AC power cords to
the PSUs and cable clamps.
2. Run the power cords out the
side seals at the bottom of both
filter kit side brackets.
