Williams Sound PA R750 Overview

PPA R750 Monitor Receiver
FM Listening System Receiver
O
VERVIEW
The PPA R750 Monitor Receiver is designed for use with Williams Sound PERSONAL PA
(PPA) Wide-band FM Transmitters. With the R750, small groups of people can listen to the FM
broadcast in a cry room, nursery, office area, or any location where a remote speaker is needed
and wiring is difficult to run.
F
IGURE
U R750 R
SING THE ECEIVER
Step 1:
Step 2:
Step 2:
Step 4:
Step 5:
Step 6:
Note:
Williams Sound
Helping People Hear

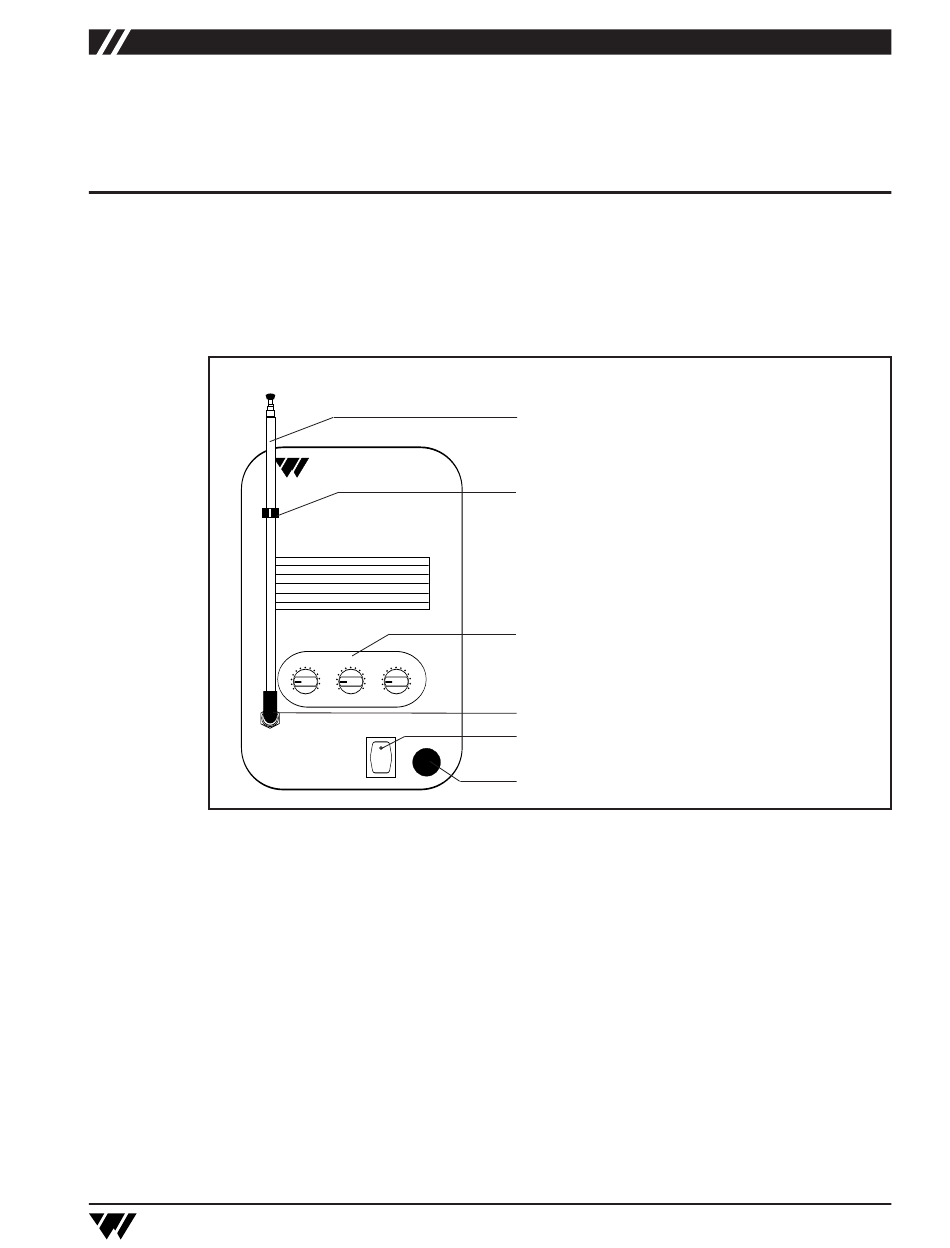

1: R750 R P F
EAR ANEL EATURES
Williams Sound Corp.
FM Receiver Model R750
This device complies with FCC Rules Part 15. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference and (2) this device must accept any interference that
may be received, including interference that may cause
undesired operation.
FCC ID: CNMR750
Williams Sound Corp. Eden Prairie, MN 55344
TREBLE BASS VOLUME
Power
24VAC, CT
On
50-60Hz, 15W
Off
Insert the ANT 026 Antenna into the "Antenna" connection on the back of the unit.
(See Figure 2.) Make sure it is fully inserted and tightly fitted.
Extend the antenna by grasping the tip and pulling straight upward.
Insert the PLC 013 Plastic Clip into the hole provided. (See Figure 2.) Push the clip in
until it snaps into place.
Lock the antenna shaft into the clip so that it will not rotate or fall over.
Plug the AC power cord into an AC outlet and turn the power switch on.
Make sure your PPA Transmitter is on and has an active audio source. Adjust the
volume control on the R750 until you hear the broadcast.
The R750 will normally receive the FM broadcast up to 150 feet away from the
Transmitter.
®
Telescoping Antenna (ANT 026)
Plastic Antenna Clip (PLC 013).
Volume, Treble, and Bass Controls
Antenna Connector
Power On/OFF Switch
AC Power Supply
®
