Williams Sound Personal PA Value Pack System PPA VP Specification Sheet

Personal PA ™
Description:
The Personal PA ™ Value Pack System broadcasts a speaker's voice, music program, or audio service wire-
lessly up to 500 feet to a listening audience. Participants wear the R35 single-channel receiver (included)
equipped with headset to pick up the broadcast to listen at the volume of their comfort level. The cor-
nerstone of the PPA VP systems is the T27 transmitter; it features an LED display panel and push button
channel selection for easy operation. The PPA VP has seventeen available channels, and operates on
72-76 MHz. Each system includes (4) R35 receivers and meets ADA requirements for hearing assistance.
Applications:
• Theaters • Cinemas • Houses of Worship • Classrooms • Zoos • Any Place of Public Access
PPA T27 Transmitter:
Dimensions & Weight:
Color:
Power (U.S./Canada):
Operating Frequencies:
Frequency Selector:
RF Field Strength:
Nominal Range:
Modulation:
Stability:
Pre-Emphasis:
Frequency Response:
Distortion:
Signal to Noise Ratio:
Microphone Input:
Mic Input Level:
Line-Level Input:
Line Input Level:
Input Attenuator:
Antenna Outputs:
Approvals:
Warranty:
*DISCLAIMER: FCC RULES LIMIT USE OF THIS EQUIPMENT TO AUDITORY ASSISTANCE
FOR THE HANDICAPPED.

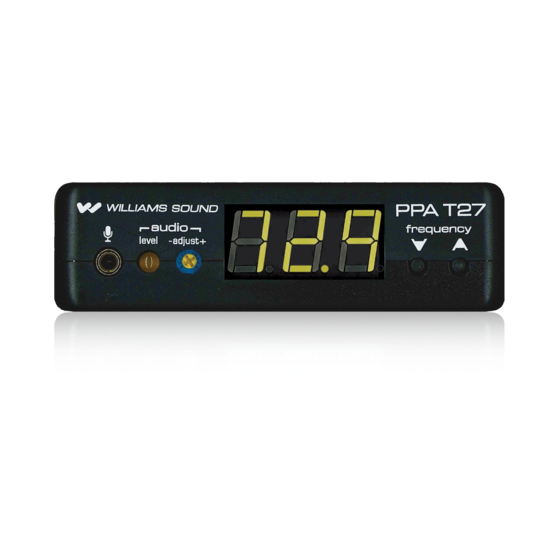

PPA T27 Front Panel:
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
©2008, Williams Sound Corp. MCAT 056C
Value Pack System •
4.1" W x 6.1" L x 1.3" H (104.1 mm x 154.9 mm x 33 mm)
7.8 oz. (221 g)
Black
105-130 VAC, 50-60 Hz, 3.2 W at 120 VAC
72-76 MHz*: 72.1 (CH A), 72.2 (CH K), 72.3 (CH B), 72.4 (CH N), 72.5 (CH C), 72.6 (CH O),
72.7 (CH D), 72.8 (CH P), 72.9 (CH E), 74.7 (CH I), 75.3 (CH J), 75.4 (CH R), 75.5 (CH F),
75.6 (CH S), 75.7 (CH G), 75.8 (CH T), 75.9 (CH H)
External switches, 17 channels (lockable)
Does not exceed 80mV/m @ 3m
Up to 500 feet (152 m) w/standard ANT 021 "rubber duckie" antenna.
Up to 1000 feet (305 m) w/optional ANT 005 coaxial antenna.
FM, 75 kHz deviation (wide–band) max.
± .005% over 0-50˚C
75 µS
85Hz - 14kHz ±3dB
1% Max. THD
65 dB with R35 Receiver
3.5mm mini phone jack, supplies +DC for electret mics
1–10 mV, nominal
RCA Jack, Hi Z, unbal.
.1–1 Vrms, nominal
Pot, screwdriver-adjustable
Thread mount for ANT 021 "rubber duckie" antenna or ANT 025 telescoping antenna
RF connector for ANT 024 dipole or ANT 005 coaxial antenna
FCC, Industry Canada, RoHS, WEEE
Five years, parts and labor. 90 days on cords, earphones, headphones, batteries and
other accessories
Model PPA VP
PPA T27 Rear Panel:
