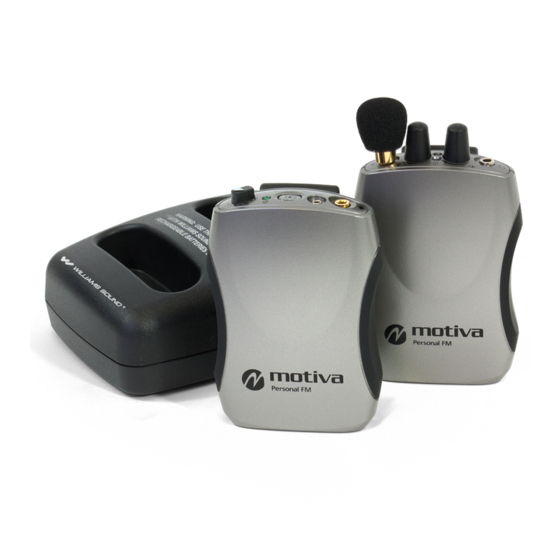

Wireless FM Listening System
manual and user guide
Models PFM 360, PFM 330, PFM 360 RCH & PFM 330 RCH
Transmitter Model PFM T36
Optional Receiver Models PFM R36, R33
PFM 330 RCH
PFM 360 RCH
MAN 146i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Motiva PFM 360 and is the answer not in the manual?

Questions and answers

Summary of Contents for Williams Sound Motiva PFM 360

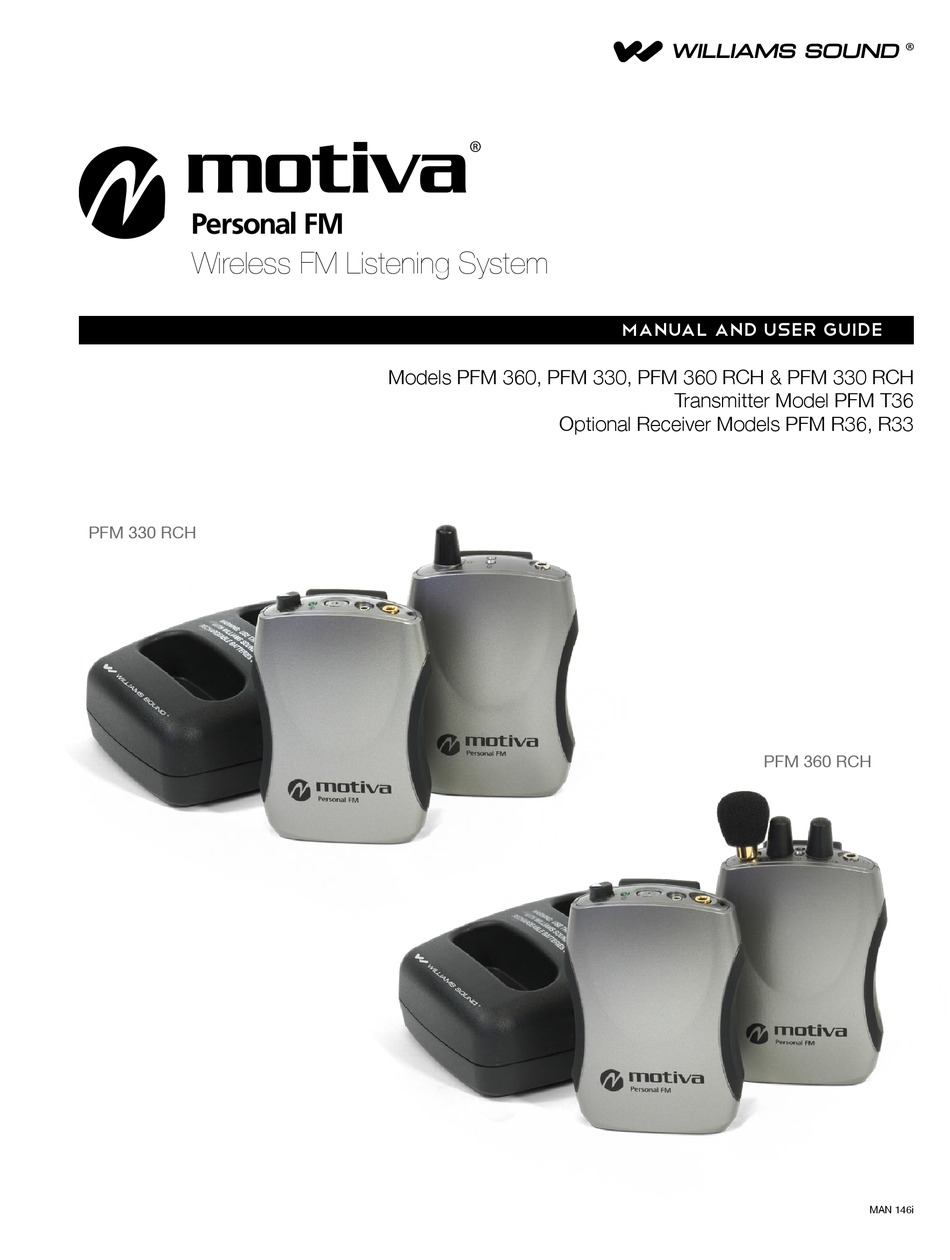

  • Page 1 ® Wireless FM Listening System manual and user guide Models PFM 360, PFM 330, PFM 360 RCH & PFM 330 RCH Transmitter Model PFM T36 Optional Receiver Models PFM R36, R33 PFM 330 RCH PFM 360 RCH MAN 146i...
  • Page 2: Table Of Contents

    Motiva® Personal FM Wireless Listening System Motiva Personal FM System ® Models PFM 360, PFM 330, PFM 360 RCH & PFM 330 RCH System Overview ............... ii System Components ............1 Safety Information .............2 Recycling Instructions ............2 Using the PFM T36 Transmitter .........3 Using the PFM R33 / R36 Receiver ........6...
  • Page 3: System Components

    Motiva® Personal FM Wireless Listening System System Components Transmitter (PFM T36) with removable Belt Clip Lapel microphone (MIC 090) Mini earphone (EAR 013) Stereo auxiliary input cable (WCA 087) System Carry Case (CCS 043) Screwdriver (SDF 002) Manual & User Guide PFM System 330 Only: Personal FM Receiver (PFM R33) / (4) AA Alkaline non-rechargeable batteries (BAT 001) PFM System 360 Only:...
  • Page 4: Safety Information

    Battery Safety and Disposal Help Williams Sound protect the environment! Please take time to dispose of your equipment properly. Please do NOT dispose of batteries in the household trash. Please take the batteries to a retail or community collection point for recycling.
  • Page 5: Using The Pfm T36 Transmitter

    Motiva® Personal FM Wireless Listening System Using the PFM T36 Transmitter IMPORTANT: If Alkaline (nonrechargeable) batteries are being installed, slide the battery selection switch in the battery compartment to the “Alkaline” position. See FIG 1 below. If installing NiMH (or rechargeable) batteries, slide the battery selection switch to the “NiMH”...
  • Page 6 Motiva® Personal FM Wireless Listening System FIG. 3: Lapel Microphone Placement A301 IMPORTANT: When the PFM T36 transmitter is not being used, remember to turn the unit OFF by pressing and holding the “ON/OFF/MUTE” button for three seconds. The Power On indicator will not be lit. FIG.
  • Page 7 Motiva® Personal FM Wireless Listening System CHANNEL LOCK By default, the PFM T36 channels are unlocked to allow the user to change frequencies as needed. If desired, channels can be locked to prevent users from changing the channels. NOTE: The Channel Lock only locks the electronic frequency; it does not physically lock the channel selection knob. To lock or unlock channels, open the battery door and locate the Channel Lock (FIG 4, Page 4).
  • Page 8: Using The Pfm R33 / R36 Receiver

    Motiva® Personal FM Wireless Listening System 5. Select the desired operating frequency. Locate the “Channel Selector” inside the battery door (See FIG. 5). Use the supplied small screwdriver to rotate the switch to the desired channel (See Channel Selection Chart, below). 6.
  • Page 9 3502 that comes with the system. Up to 12 units can be charged at one time in the optional CHG 3512 or CHG 3512 PRO multi- charger. For ordering information, please contact Williams Sound at 800-843-3544. Additional information on the CHG 3502 is listed below.
  • Page 10: Belt Clip Installation

    Motiva® Personal FM Wireless Listening System Belt Clip Installation To Install: Position the belt clip on the rear of the device as shown below. Turn the belt clip 180° left or right. The belt clip is now installed and ready for use. To Remove: Turn the belt clip 180°...
  • Page 11: Specifications

    Motiva® Personal FM Wireless Listening System Specifications FM RECEIVER, MODEL PFM R33 Dimensions: 4.6” L x 2.8” W x 1.1” H (116 mm x 71 mm x 28 mm) Weight: 3.4 oz (96 g), no batteries Color: Titanium Housing Material: Shatter-resistant PC/ABS plastic Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001), 70 mA nominal current drain, approximately 21 hours life, or Two (2)
  • Page 12: Fm Receiver, Model Pfm R36

    Motiva® Personal FM Wireless Listening System Specifications FM RECEIVER, MODEL PFM R36 Dimensions: 4.6” L x 2.8” W x 1.1” H (116 mm x 71 mm x 28 mm) Weight: 3.4 oz (96 g), no batteries Color: Titanium Housing Material: Shatter-resistant PC/ABS plastic Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001), 70 mA nominal current drain, approximately 21 hours life, or Two...
  • Page 13: Fm Transmitter, Model Pfm T36

    Motiva® Personal FM Wireless Listening System Specifications FM TRANSMITTER, MODEL PFM T36 Dimensions: 4.1” L x 2.8” W x 1.1” H (104 mm x 71 mm x 28 mm) Weight: 2.6 oz (74 g), no batteries Color: Titanium Housing Material: Shatter-resistant PC/ABS plastic Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001), 70 mA nominal current drain, 30 hours approx.
  • Page 14: Limited Warranty

    Williams Sound products are engineered, designed and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams Sound warrants the PFM T36 transmitter, PFM R36 and PFM R33 receivers against defects in materials and workmanship for FIVE (5) years. During the first five years from the purchase date, we will promptly repair or replace.
