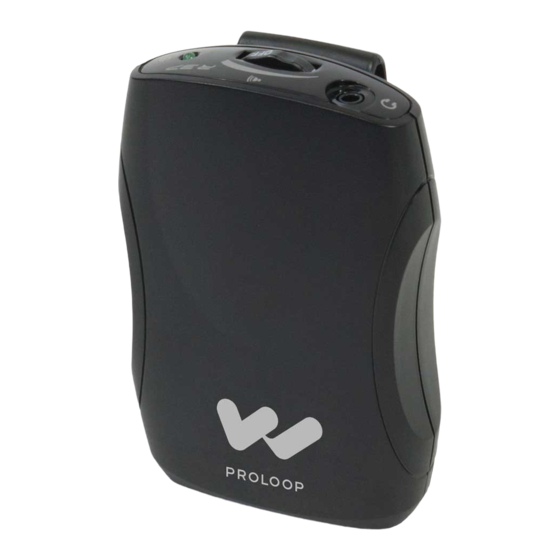

Proloop body pack induction loop receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

PLR BP1
Proloop Body Pack Induction Loop
Receiver
Instructions For Use and Care

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLR BP1 and is the answer not in the manual?

Questions and answers

Related Manuals for Williams Sound PLR BP1

Summary of Contents for Williams Sound PLR BP1

  • Page 1 PLR BP1 Proloop Body Pack Induction Loop Receiver Instructions For Use and Care...

  • Page 2: Operating Instructions

    Operating Instructions 1. Open the battery compartment. Slide the battery selection switch to the correct position for the type of batteries that will be used. Use “Alkaline” for non- rechargeable batteries, “NiMH” for rechargeable NiMH batteries (only). (FIG. A) FIG. A: Battery Compartment Tone TONE Control...

  • Page 3: Belt Clip Installation

    A299 Belt Clip Installation To install the belt clip on the rear of the PLR BP1, position the belt clip on the back. Turn the belt clip 180˚ left or right to secure the clip. The BP1 can now be clipped onto a belt.

  • Page 4: Hints And Tips

    FIG. C: Belt Clip Installation Hints and Tips The PLR BP1 has been designed to be as easy to use as possible. However, if you have trouble, check the following: • Make sure the earphone/headphones are securely A132 plugged in.

  • Page 5: System Specifications

    System Specifications PLR BP1 Receiver Dimensions: 4.1”H x 2.85”W x 1.38”D (104 mm H x 72 mm W x 35 mm D). Weight: 4.6 oz (130 g) with batteries, 2.6 oz (73 g) without batteries. Color/Material: Black ABS/polycarbonate molded plastic case.
  • Page 6 System Specifications PLR BP1 Receiver Loop Sensitivity: Compatible with IEC 60118-4 Systems S/N Ratio: 62 dB Typical Notch Filter: -20dB @ 120Hz fixed notch filter Tone Control -10dB cut @ 300 Hz to 6dB boost @ 6 kHz Range: Environment: Operational: 32°F to 122°F (0°C to 50°C) at...

  • Page 7: Battery Information

    Battery Information The PLR BP1 uses 2 AA batteries. We commend using Williams Sound Alkaline batteries (BAT 001-2) or rechargeable batteries (BAT 026-2) for longer battery life than other brand batteries. Low Battery Indicator The “On” indicator on top of the unit will flash to indicate low battery.

  • Page 8: Safety Information

    Safety Information HEARING SAFETY CAUTION! This product is designed to amplify sounds to a high volume. To protect your hearing and the hearing of others: 1. Make sure the unit is OFF or the volume is turned down before putting on the earphones. 2.
  • Page 9 Williams Sound products are engineered, designed, and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams Sound warrants the PLR BP1 against defects in materials and workmanship under normal use and conditions for 5 years from date of purchase.

  • Page 10: Customer Service

    NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. 10300 Valley View Rd • Eden Prairie, MN 55344 Printed in the USA 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2013 Williams Sound, LLC MAN 171C...
