INSTALLATION

■ WALL MOUNTING
Attach the upper mounting adaptors to the upper side of
the unit, and pull out the lower mounting adaptors from the
lower side. Fasten a M4 screw through the mounting hole
(4.5 mm dia.) of each adaptor. (torque 1.4 N∙m)
To remove the upper mounting adaptor from the unit, pull
it out while squeezing the latches as shown in the figure
below.
push

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

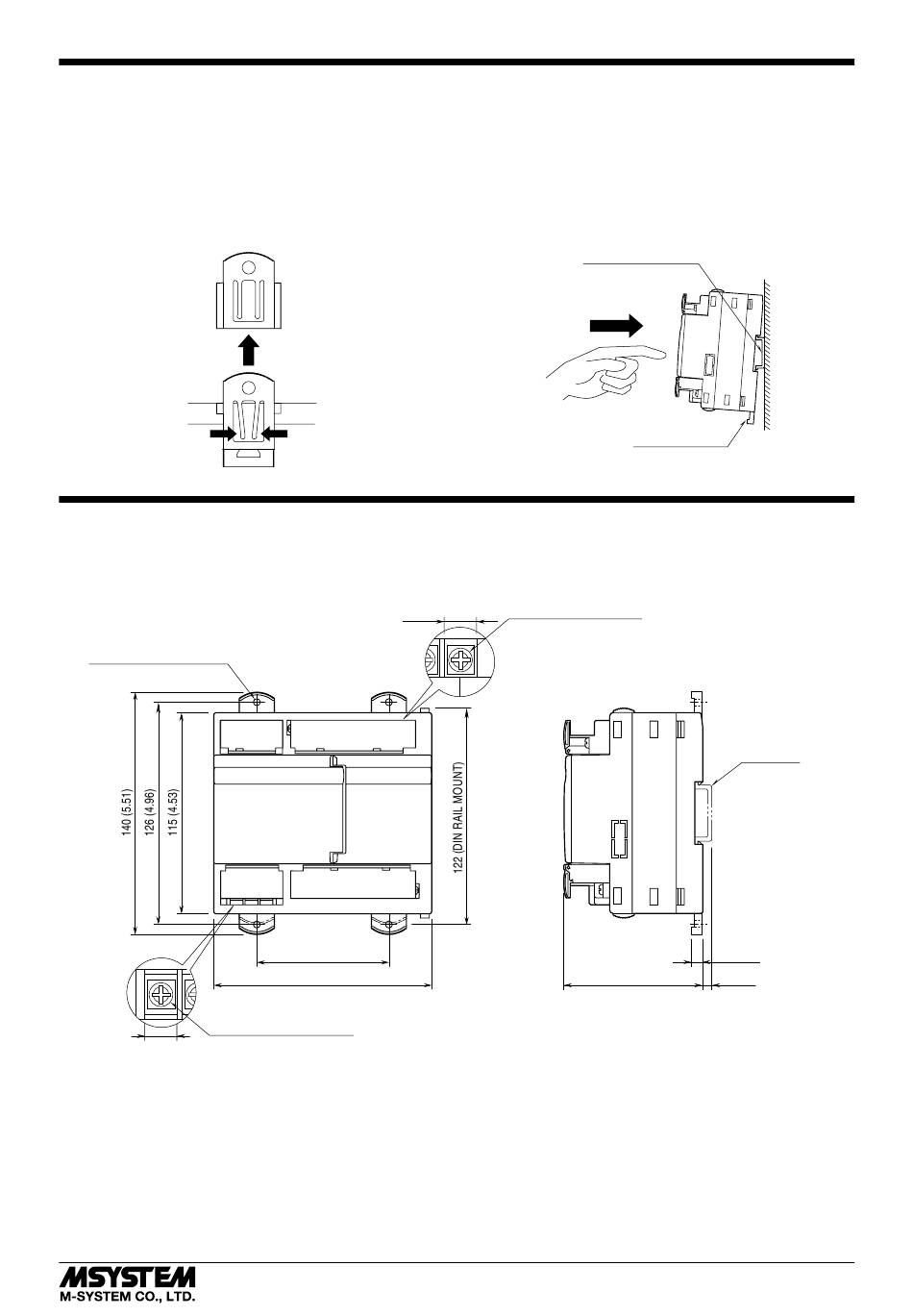

■ EXTERNAL DIMENSIONS unit: mm (inch)
4 − 4.5 (.18) dia. MTG HOLE
7−M3.5 SCREW TERMINALS
7.3 (.29)
push
6 (.24)
75 (2.95)
125 (4.92)
